Description
- Ideal for synthetic and Dyneema ropes
- Heavy duty, corrosion proof, polished aluminium construction
- Bolt holes are recessed to give a flat surface
| Winch Hawse | Model: SOH002 |
|---|---|
| Load Capacity | 19,000lb |
| Hole Centers | 10" ctr to ctr |
| Hole Size |
Back Shank Width: 1/2" or 12mm Front Bolt Head Recess: 1" or 25mm |
| Thickness | 20mm |
| Length | 300mm |
| Height | 88mm |
| Slot Length | 180mm |
| Slot Height (opening) | 24mm |
| Offset | 30mm (from centre of bolt holes) |
Specifications
| SKU | SOH002 |
|---|---|
| Barcode # | OEBC560435 |
| Brand | Sherpa |
| Shipping Weight | 2.0000kg |
| Shipping Width | 0.080m |
| Shipping Height | 0.020m |
| Shipping Length | 0.300m |
More infoMake 4 payments of $24.50 over 8 weeks and get it now!

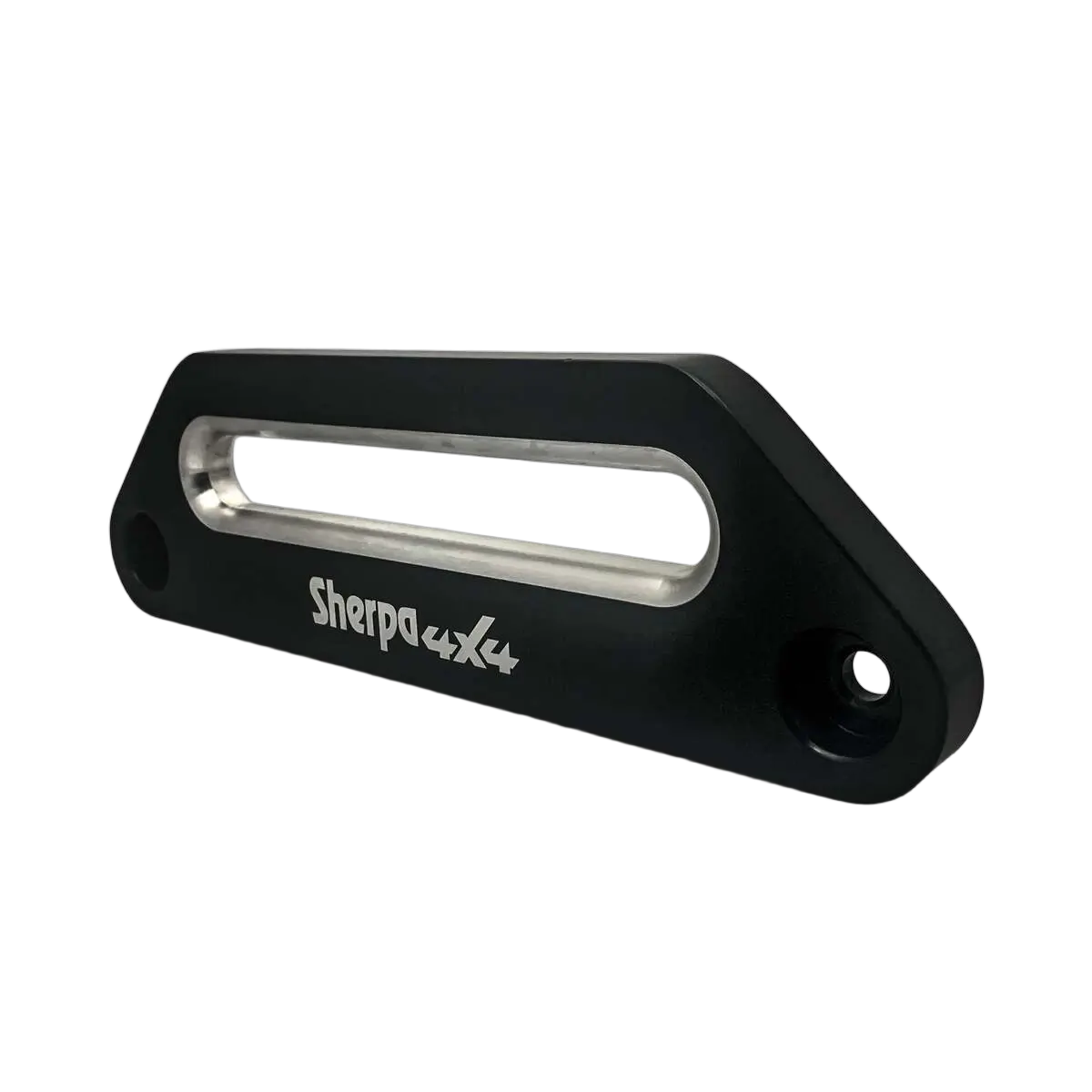

Polished aluminium winch hawse for use with synthetic or Dyneema winch ropes. Assists in winch installation where the standard winch hawse doesn't provide enough clearance for the rope to feed through the bullbar. 30mm offset
Required for winch installati
