Sherpa winches have a focus on quality and invest in continuous improvement, making them the best winch solution on the market. The range of hand winches are no exception and deliver high quality as well as value for money.

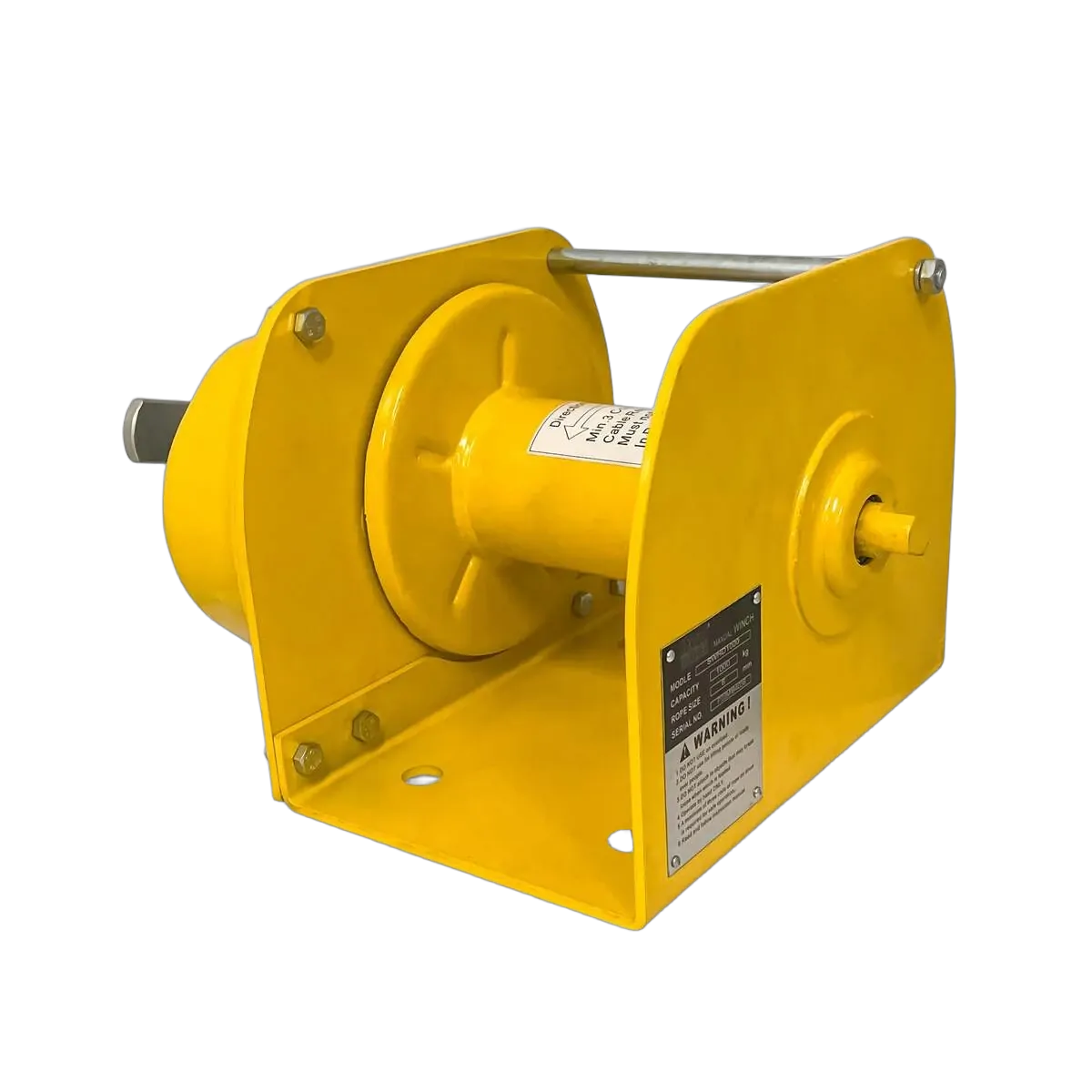

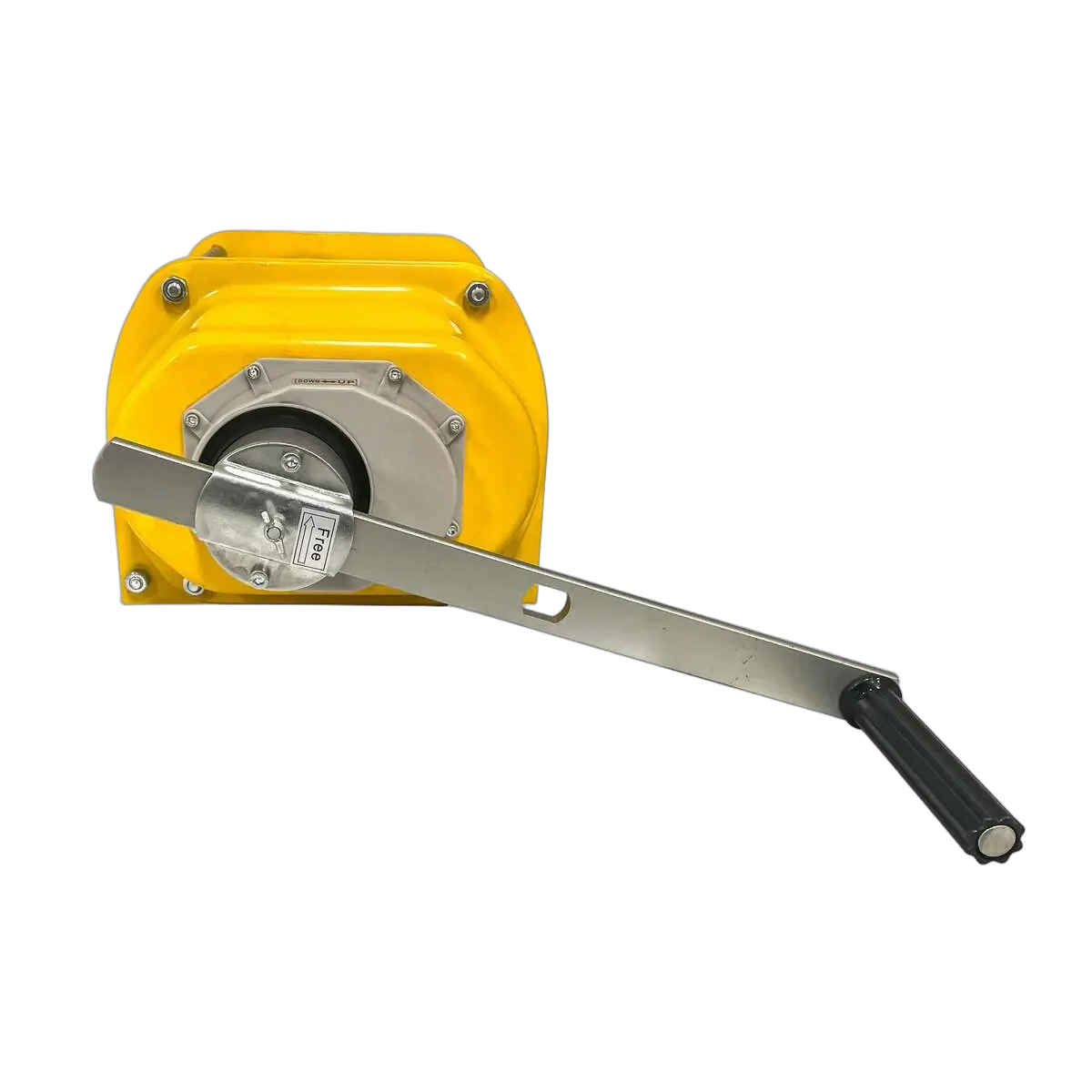

These heavy duty braked hand winches can raise and lower heavy loads with great control. Common uses include mounting to a davit for raising and lowering boats from the water. The automatic pressure loading brake means the load is instantly held even when the handle is released. The fear of runaway is no more.
Sailing boats can have their adjustable keels raise or lowered with great control and ease.
These winches are supplied bare without any rope or cable fitted. The winch is suitable for use with both steel cable or a synthetic rope alternative.
WHY ARE SHERPA WINCHES DIFFERENT TO THE COMPETITION?
Tried and Tested - Sherpa don't just base their winch designs on the theoretical calculations. Winches are also tested to destruction on a test bench before undergoing real world testing. What results is a robust winch design with exceptional in-house pre and post sales support.
Tough & Durable - Sherpa winches are built to last.
Quality gears - Sherpa gears turn smoother and feel better thanks to the high level of engineering design and quality control during manufacturing.
Powerful- A range of solutions are available for different applications and loads.
Simplicity - Easy to set up and operate, these winches have been designed with simplicity in mind. They are supplied ready to operate out of the box.
Warranty and Parts - Sherpa offers a 5 Year warranty on their hand winch range.
TECHNICAL DETAILS
Specifications | SWHD1000 | SWHD3000 |
---|---|---|
Lifting capacity on 1st layer | 2,200 lb (1,000 kg) | 6,600 lb (3,000 kg) |
Gear Ratio | 12:1 | 22:1 |
Drum |
Supplied bare without rope or cable fitted |
Supplied bare without rope or cable fitted |
Capacity | 40m @ 8mm | 40m @ 12.5mm |
Material | Steel with painted finish | Steel with painted finish |
Brake | Automatic self-locking friction pressure brake | Automatic self-locking friction pressure brake |
Dimensions |
265x400x210mm (measurements don't include the adjustable handle which measures 420x140x30mm) |
480x380x300mm (measurements don't include the adjustable handle which measures 420x140x30mm) |
Weight | ~21 kg | ~61 kg |
Warranty | 5 Years | 5 Years |
SKU | SWHD3000 |
---|---|
Barcode # | OEBC560427 |
Brand | Sherpa |
Shipping Weight | 61.0000kg |
Shipping Width | 0.300m |
Shipping Height | 0.500m |
Shipping Length | 0.400m |
