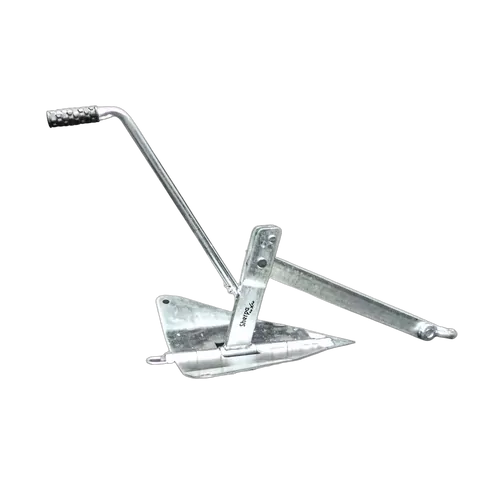

Now produced in heavy duty, galvanised steel!

• Ideal for vehicle recovery when there are no other convenient anchor points or trees.
• Use in sand, mud, soil and gravel.
• Angled blade gives the anchor a self digging action when pressure is applied
• Use with rope or cable winches
• Packs away for easy storage
• Steel construction
• Heavy duty pins

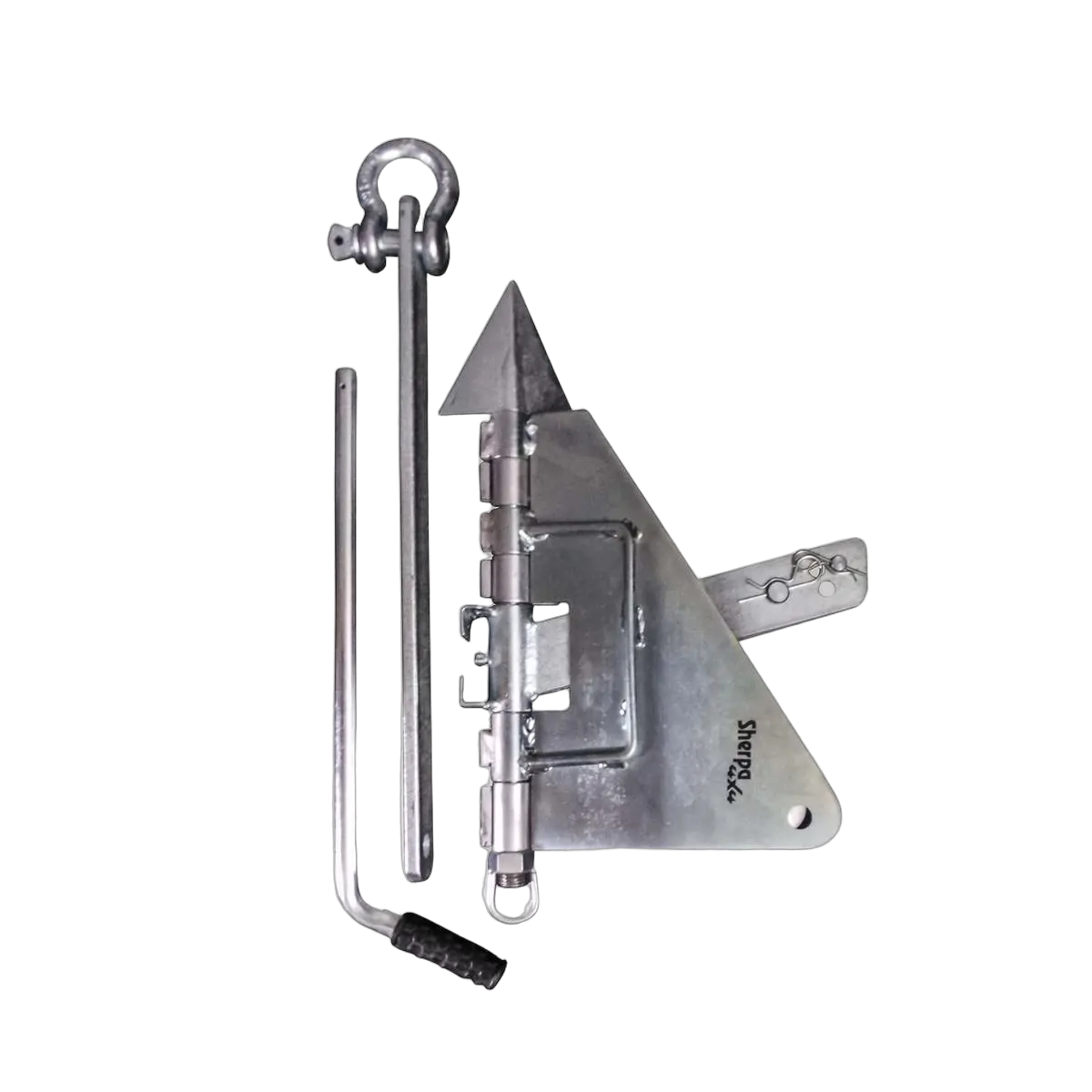

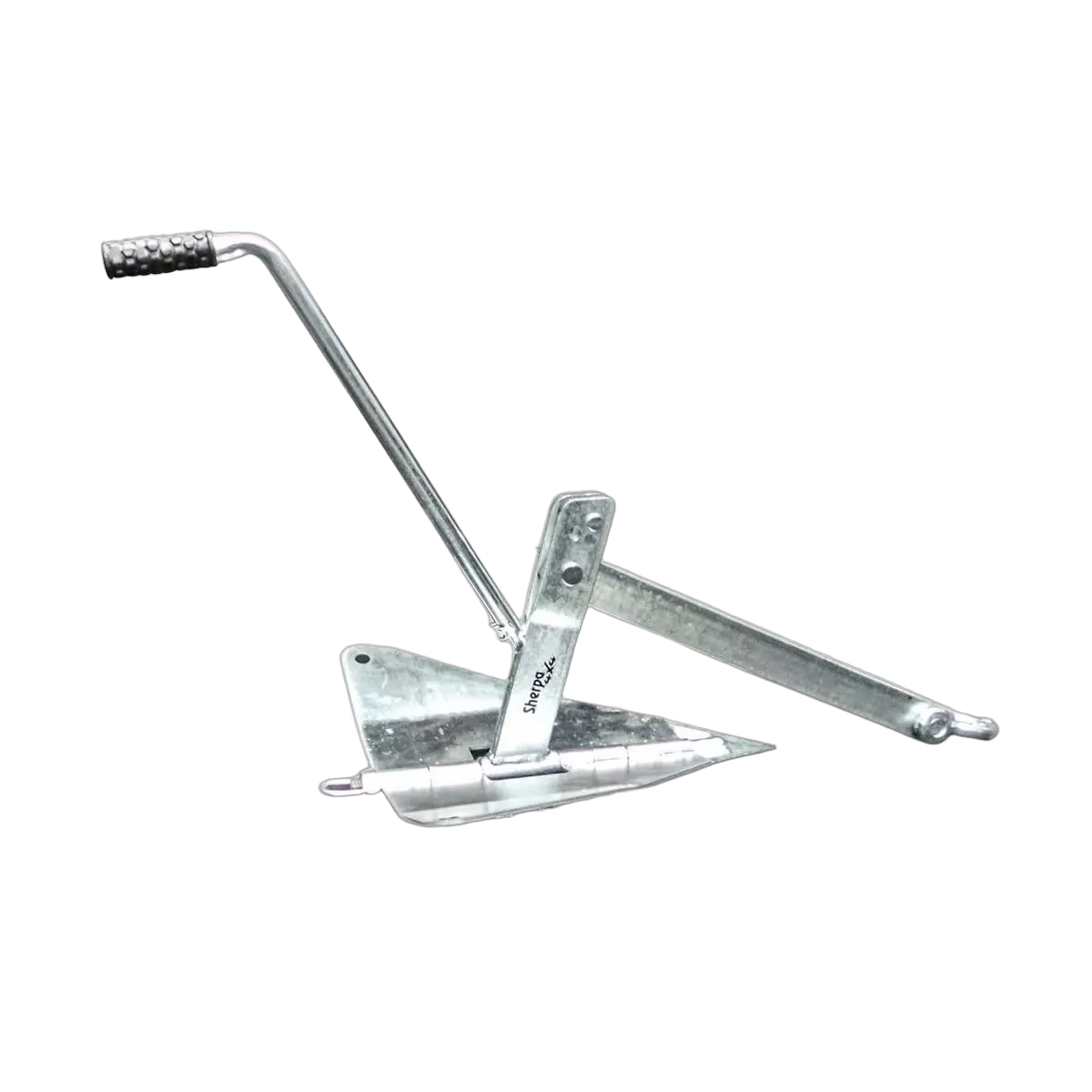

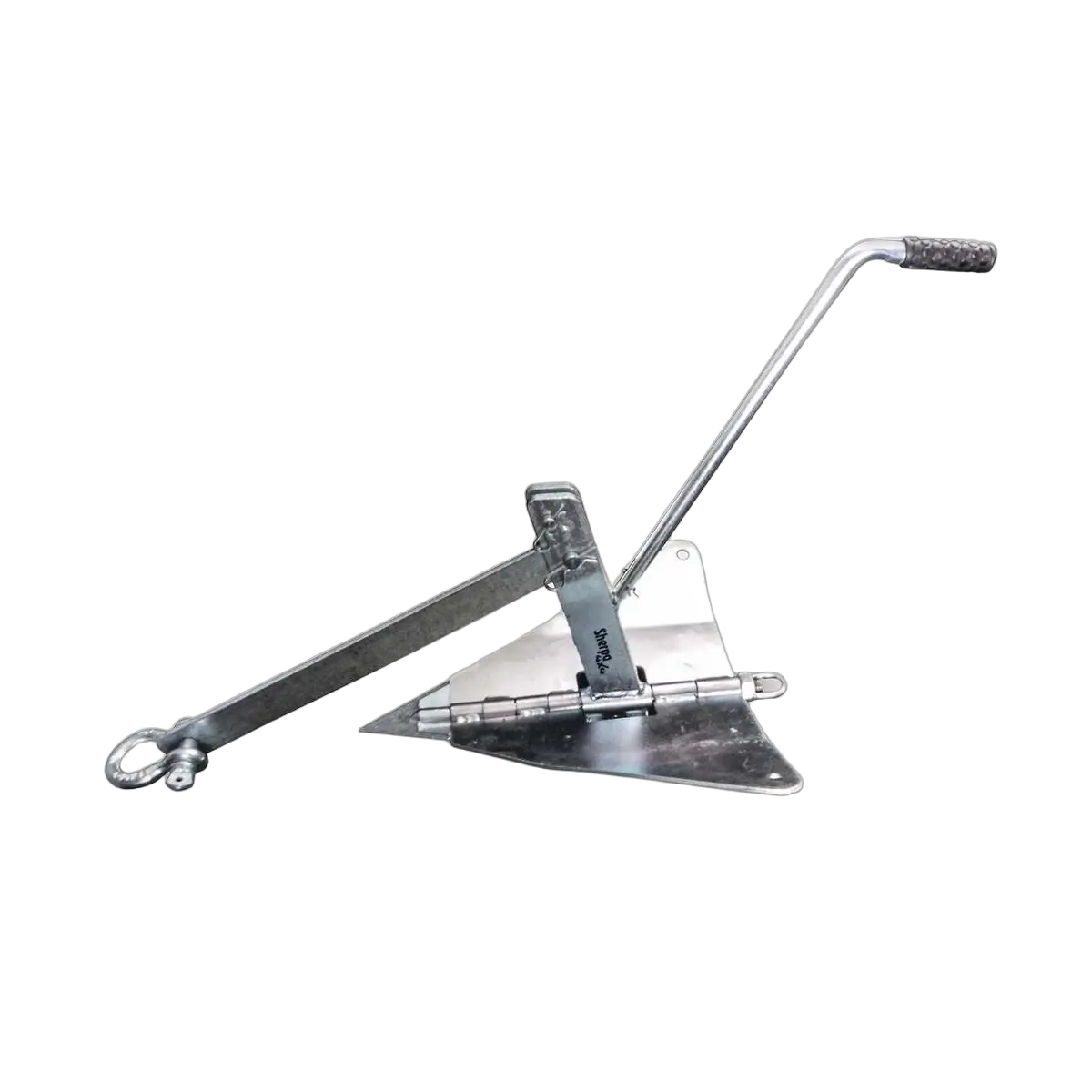

Winch Anchor Instructions:

Step 1:

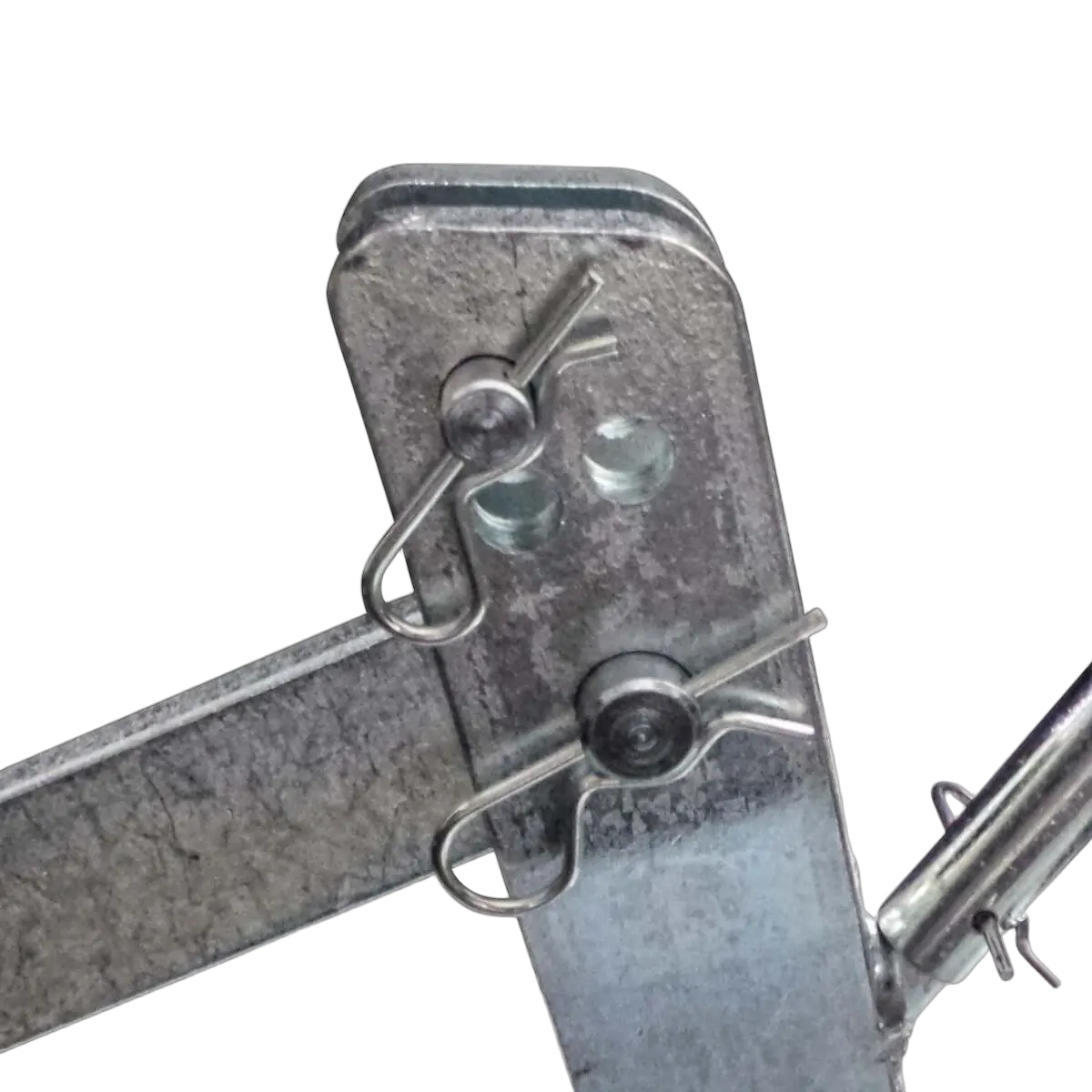

Remove the R pin from the handle.

Step 2:
Now fold down the anchor wings.

Step 3:
Unthread the bow shackle pin and remove.

Step 4:
Remove the handle from the anchor.

Step 5:
With the wings in the open position slide the shank forward.

Step 6:
Reinstall the bow shackle.

Step 7:
Attach the hand to the operating position and secure in place with the R pin.

Step 8:
Attach the winch hook to the bow shackle.

You are now ready to recover your vehicle!

Packing up the ground anchor is the opposite of assembly.

Safety Pointers:

• Always exercise precaution as high tensile loads are in play.
• Always use winch dampeners.
• Do Not exceed the load rating of the anchor.
• Do Not stand between the anchor and the vehicle when winching.
• Always check the winch anchor for signs of stress, fatigue or damage before use.
