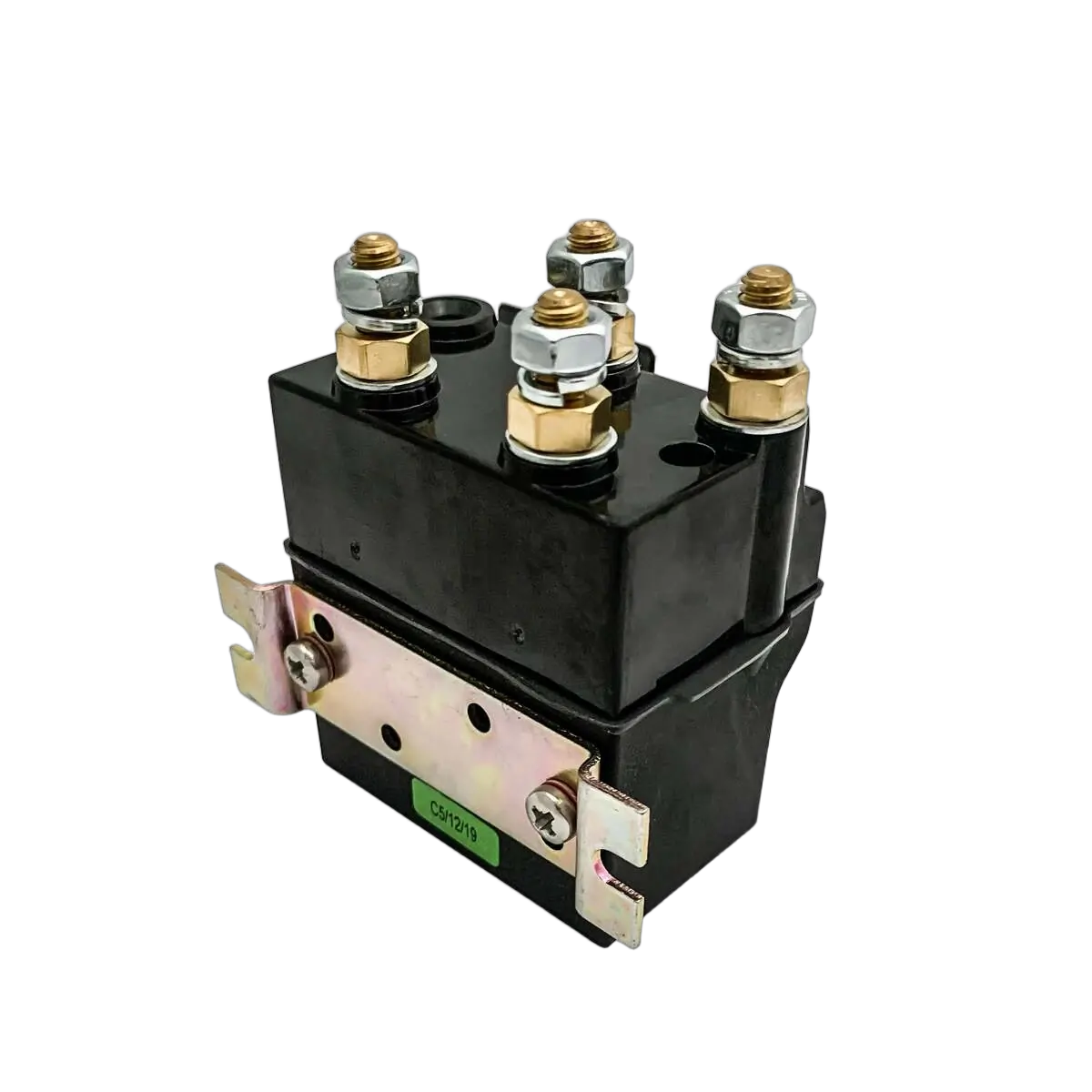

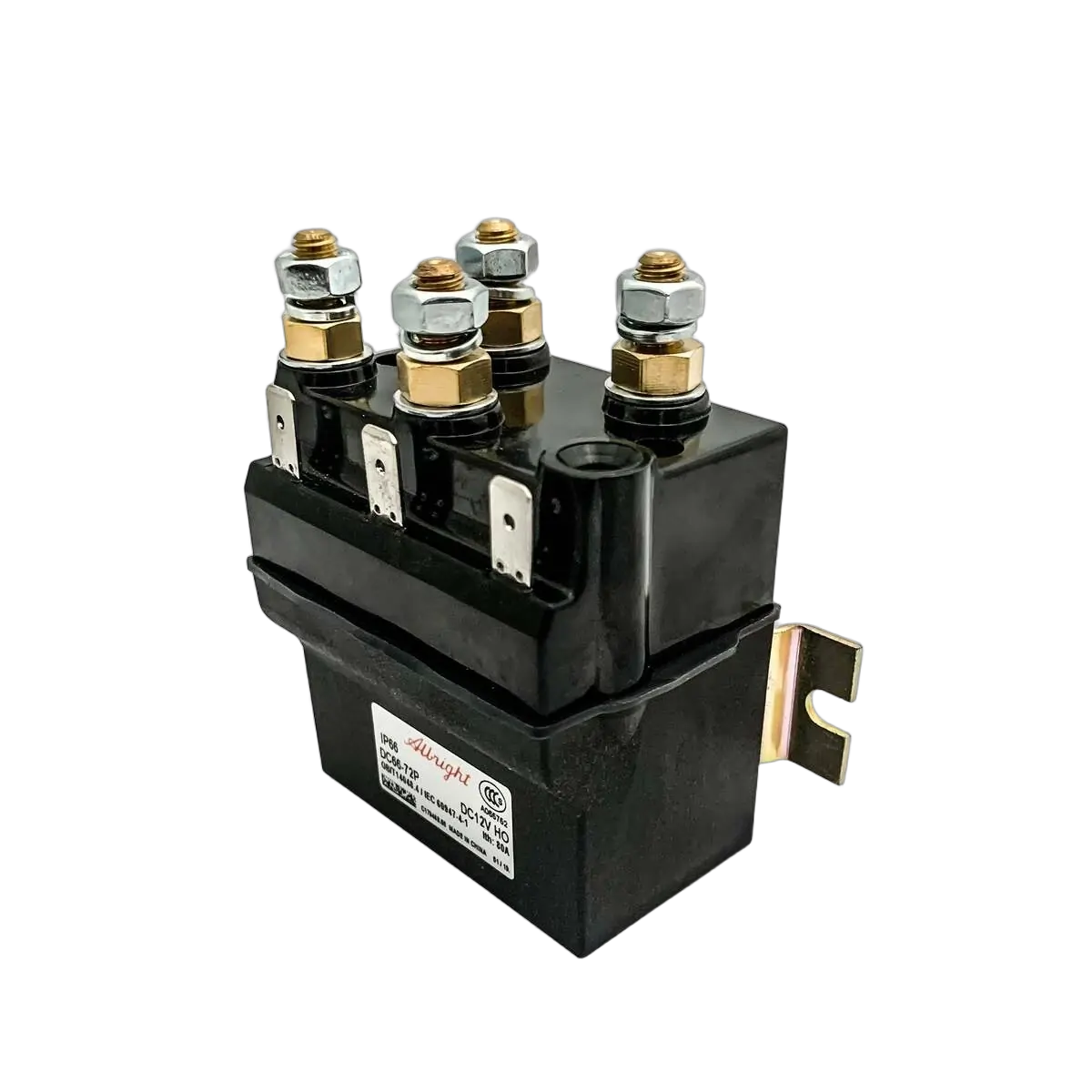

This is the current model Albright winch solenoid, the DC88P 1000 Series which supercedes the DC88P. With over 70 years experience in manufacturing contactors the Albright DC88P series of winch solenoids are the best on the market. Their superior duty cycle and water proofing makes them ideal for use in offroad conditions. Capable of withstanding high current loads these solenoids are suitable as a replacement solenoid for any of the Sherpa 4x4 winches.
- Available in 12V or 24V
- Dual direction solenoid compatible with most winches including various Warn models
- Compatible with all Sherpa 4x4 winches
- Compact monoblock construction
- Suitable for interrupted and uninterrupted loads
- Compatible with wireless remotes
- Ideal for series wound and permanent magnet DC motors
- Bi-directional for winches with release and retrieve motors (F1 & F2)
| Solenoid Specification | Value |
| Max Current | 800 Amps |
| Voltage | 12 Volt or 24 Volt DC models available |
| Winch Loads | 4,500lb to 18,000lb |
| Dimensions | Overall Height = 97mm Main Body Height = 79mm Overall Width = 100mm Overall Depth = 61mm Terminal Height = 18mm Terminal Size = M8 |
| Warranty | 12 Months |
For duty cycles at various loads please see the data sheet below.
| SKU | DC88-1055P-12V |
|---|---|
| Barcode # | OEBC560463 |
| Brand | Sherpa |
| Shipping Weight | 0.5000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.100m |
| Shipping Length | 0.100m |

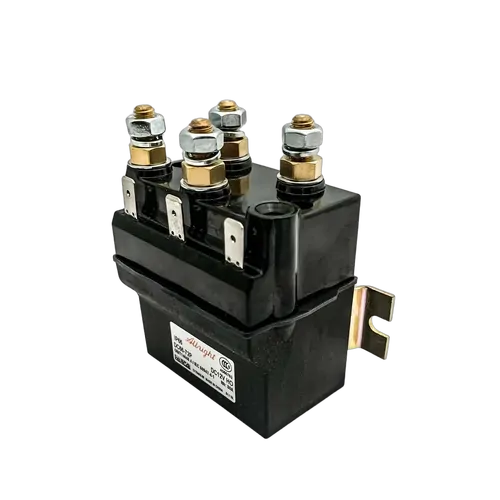

Sherpa Albright Solenoid DC88 1000 Series 12 Volt
