FEATURES
• AS2741 Standard.
• Configuration with screw pin hot dipped galvanised.
• Marked with load limit in tonnes, grade ‘S’ batch.
• Number, nominal size in millimetre and supplier identification.
• Proof tested to 2 x work load limit, with a minimum break force of 6 x work load limit.
• Test certificates are available upon request.
• Suitable for lifting applications.
• GP - QLD Transport Approved.
SPECIFICATIONS
| Part No. | 130032 |
| Weight | 0.61kg |
| Pin Dia. | 19.0mm |
| Body Dia. | 16.0mm |

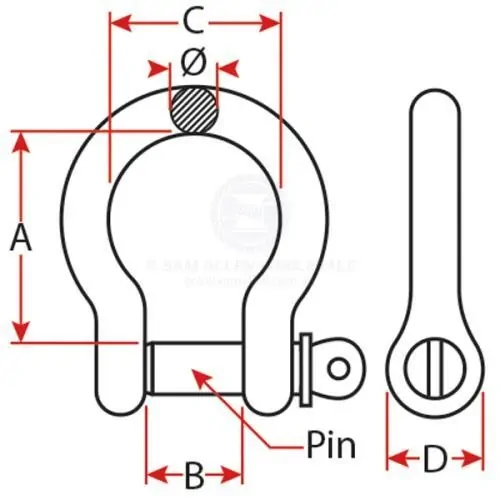

| A | 60.0mm |
| B | 26.0mm |
| C | 43.0mm |
| D | 40.0mm |
| WLL | 3.2T |
| Pin | Screw Pin |
| Unit Qty | 1 |
| Note | Pin colours may vary. |
| SKU | 130032 |
|---|---|
| Barcode # | OEBC673670 |
| Brand | Sam Allen |
| Shipping Weight | 0.6100kg |
| Shipping Width | 0.016m |
| Shipping Length | 0.019m |

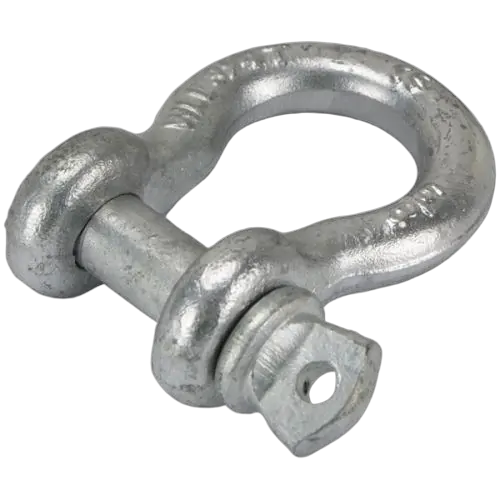

Shackle galvanised bow grade 'S' 16 x 19mm screw pin rated 3.2T
