FEATURES
• AS2741 Standard.
• Configuration with screw pin hot dipped galvanised.
• Marked with load limit in tonnes, grade ‘S’ batch.
• Number, nominal size in millimetre and supplier identification.
• Proof tested to 2 x work load limit, with a minimum break force of 6 x work load limit.
• Test certificates are available upon request.
• Suitable for lifting applications.
• GP - QLD Transport Approved.

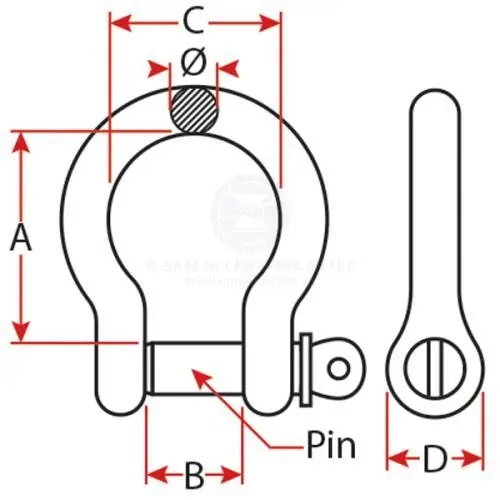

SPECIFICATIONS
| Part No. | 130030 |
| Weight | 0.34kg |
| Pin Dia. | 16.0mm |
| Body Dia. | 13.0mm |
| A | 48.0mm |
| B | 20.0mm |
| C | 29.0mm |
| D | 27.0mm |
| WLL | 2T |
| Pin | Screw Pin |
| Unit Qty | 1 |
| Note | Pin colours may vary. |
| SKU | 130030 |
|---|---|
| Barcode # | OEBC673669 |
| Brand | Sam Allen |
| Shipping Weight | 0.3400kg |
| Shipping Width | 0.013m |
| Shipping Length | 0.016m |

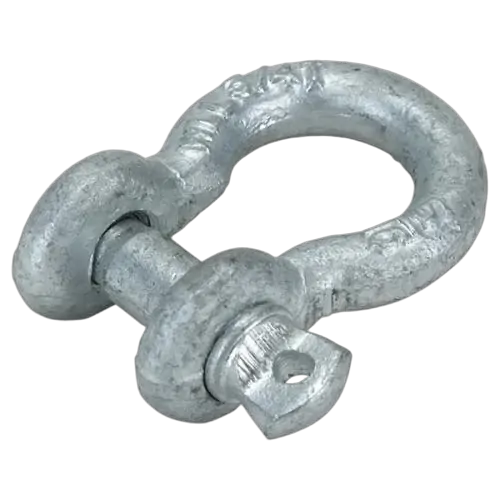

Shackle galvanised bow grade 'S' 13 x 16mm screw pin rated 2.0T
More infoMake 4 payments of $2.25 over 8 weeks and get it now!
Calculate Shipping
FEATURES
• AS2741 Standard.
• Configuration with screw pin hot dipped galvanised.
• Marked with load limit in tonnes, grade ‘S’ batch.
• Number, nominal size in millimetre and supplier identification.
• Proof tested to 2 x work load limit, with a minimum break force of 6 x work load limit.
• Test certificates are available upon request.
• Suitable for lifting applications.
• GP - QLD Transport Approved.
SPECIFICATIONS
| Part No. | 130030 |
| Weight | 0.34kg |
| Pin Dia. | 16.0mm |
| Body Dia. | 13.0mm |
| A | 48.0mm |
| B | 20.0mm |
| C | 29.0mm |
| D | 27.0mm |
| WLL | 2T |
| Pin | Screw Pin |
| Unit Qty | 1 |
| Note | Pin colours may vary. |
| SKU | 130030 |
|---|---|
| Barcode # | OEBC673669 |
| Brand | Sam Allen |
| Shipping Weight | 0.3400kg |
| Shipping Width | 0.013m |
| Shipping Length | 0.016m |
