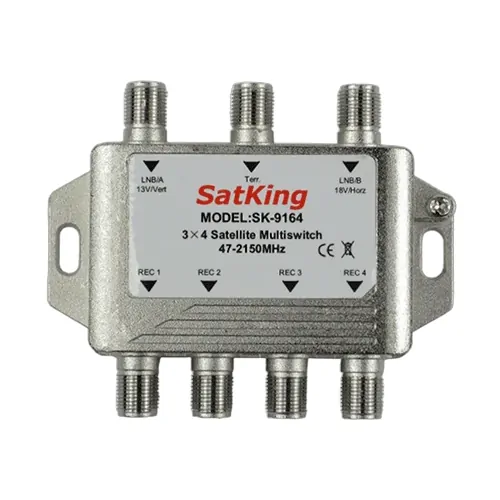

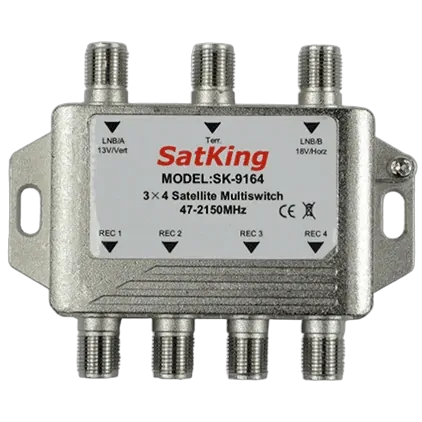

Description:

Standard Operating Procedure:

Connect a dual output LNB with LNB A and LNB B. This will provide horizontal and vertical signals through out the complete installation. Connect the terrestrial TV antenna to the Terrestrial port and existing TV will also merge into the system. No power injector is required for this Multiswitch as the power is provided by the satellite receiver.

Features:

• 2 x Satellite inputs
• 1 x Terrestrial input
• 4 x Outputs
• Satellite TV input frequency: 950-2150 MHz
• Terrestrial TV input frequency: 47-862 MHz
