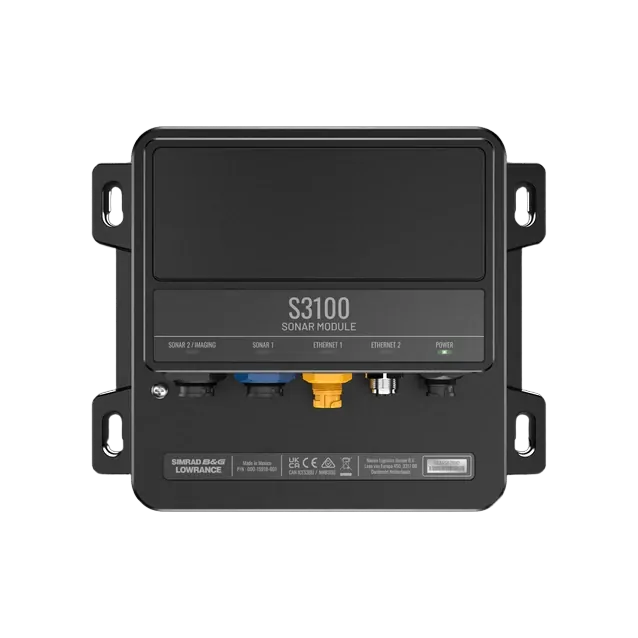

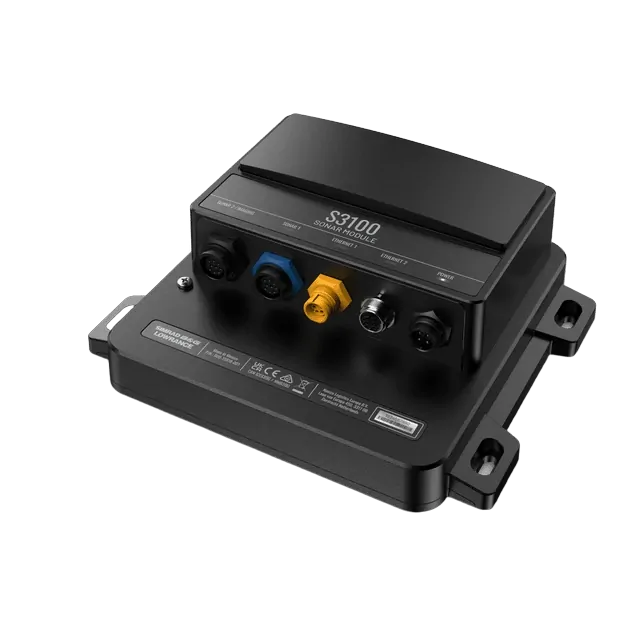

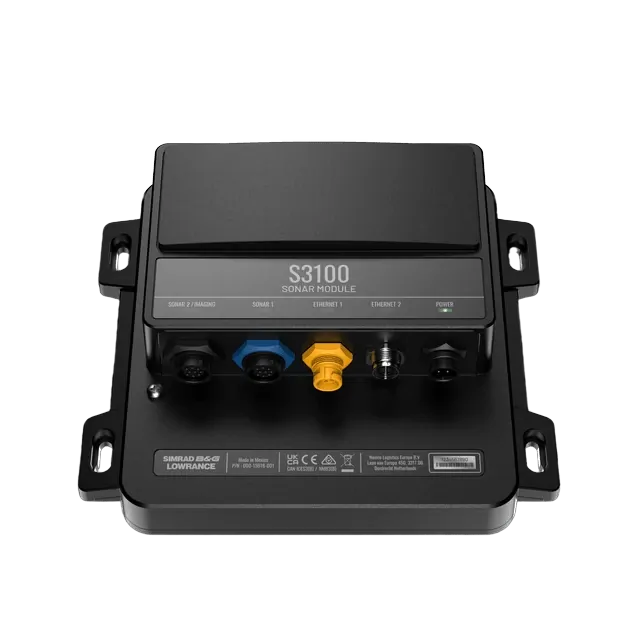

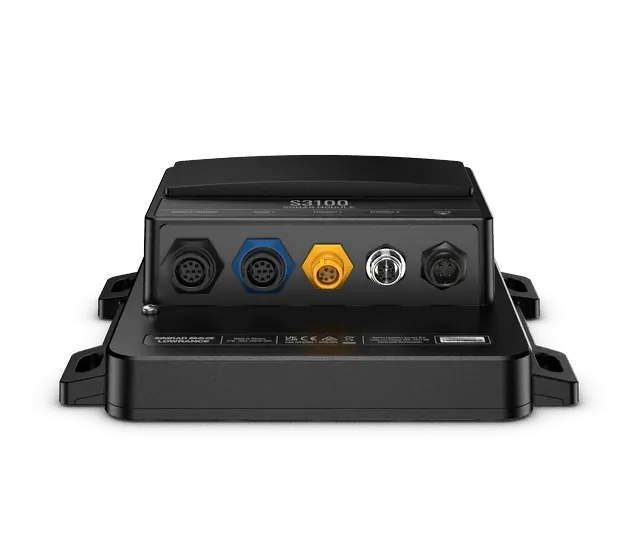

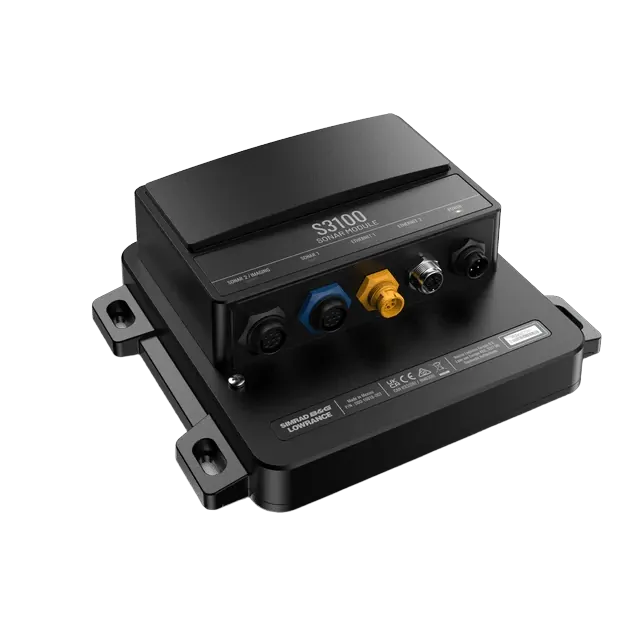

S3100 High-performance sonar module. Two independent 1kW channels supporting 1 kW Low, Med, High, and High-Wide transducers. Support for high-frequency ActiveImaging HD transducers.
Active Imaging HD
The S3100 provides support for high-definition Active Imaging HD sonar. Active Imaging HD delivers the clearest images of fish and structure with CHIRP sonar and high-frequency (up to 1 Megahertz) SideScan and DownScan Imaging; – plus FishReveal; DownScan and SideScan views, making fish identification easier below and to the sides of the boat.
FishReveal SideScan View Fish will be easy to see on both sides of the boat with the new FishReveal SideScan view, which takes the guesswork out of fish identification by combining on one screen the incredible detail of high-frequency SideScan with the superb clarity and target separation of CHIRP sonar.
Track Multiple Depth Ranges

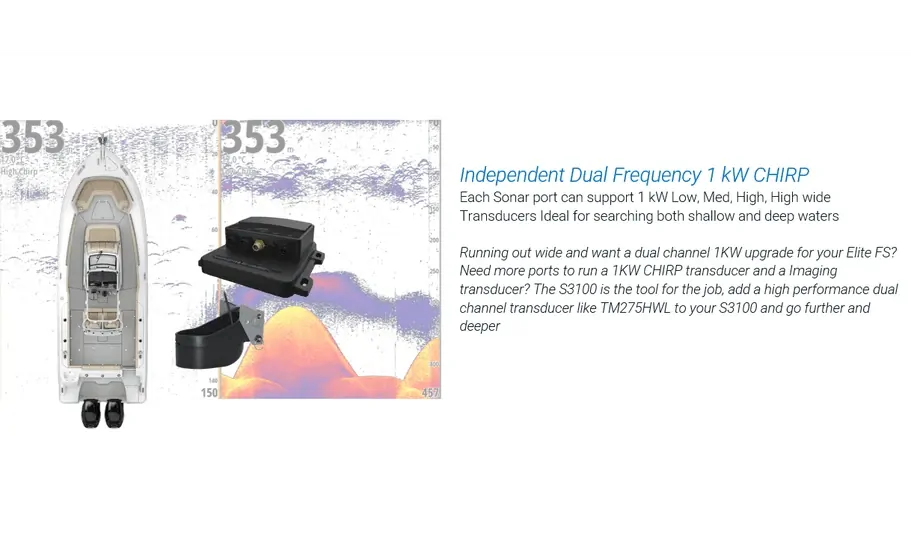

With two fully independent 1kW sonar channels, you can connect the S3100 to up to two additional transducers to track multiple depth ranges at the same time.
Compatibility
| Lowrance | Elite FS, HDS Carbon, and HDS LIVE with version 23.3 and above |
| Simrad | NSS evo3/3S, NSO evo3/3S with version 23.4 and above |
| B&G | Zeus3/3S, Zeus3/3S GH |
Environmental
| Operating temperature | -15° C to 55° C (5° F to 131° F) |
| Storage temperature | -20° C to 60° C (4° F to 140° F) |
| Waterproof rating | IPX6 and IPX7 |

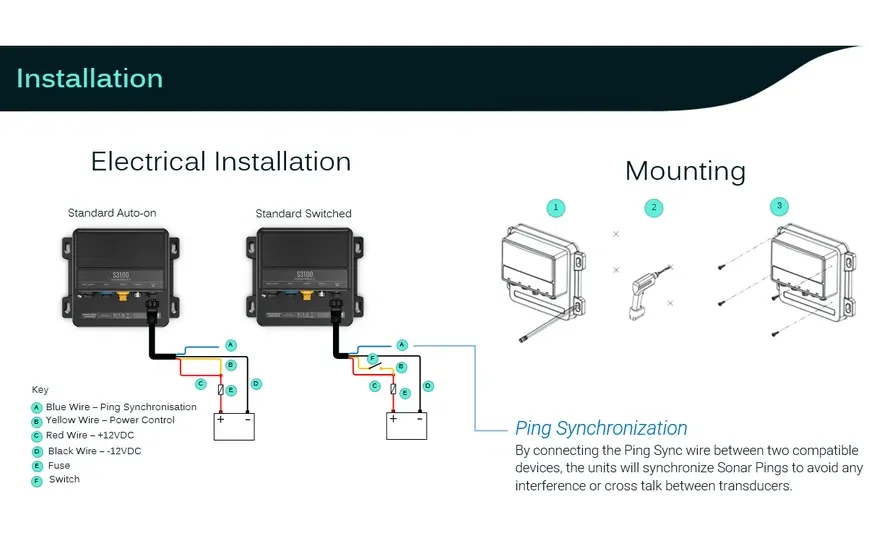

Electrical
| Supply voltage | 12 - 24 V DC (10.5 - 31.2 V DC) |
| Recommended fuse rating | 5 A |
| Reverse polarity protection | Yes |
| Power consumption (maximum) | Max: 0.8 A; Typical: 0.6 A; Inrush: 3 A pk; >2.5 A for < 0.5 ms |
Physical
| Dimensions w x h x d | 230 mm (9.04") x 192 mm (7.57") x 79 mm (3.10") |
| Weight | 0.9 kg (1.9 lbs) |
| Compass safe distance | 0.13 m (5.1 in) |

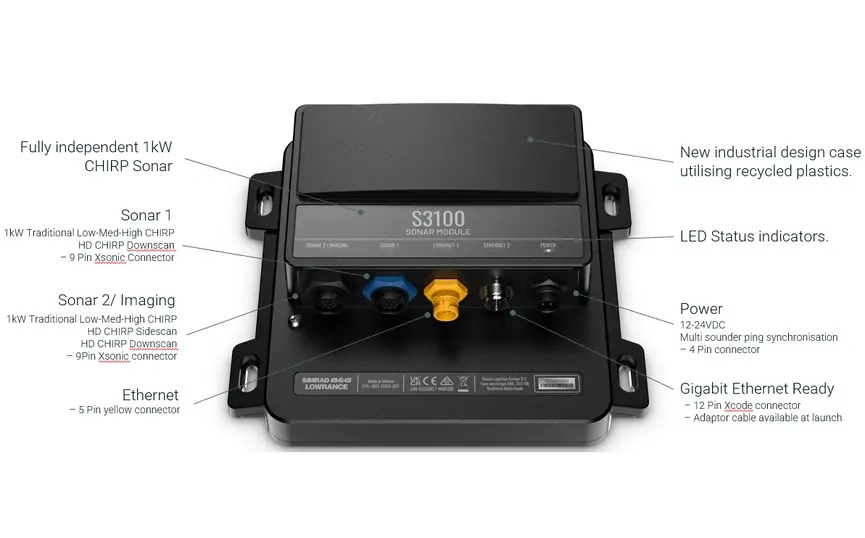

Interface/Connectivity
| Sonar Port 1 | Type 9-pin XSonic® (blue) |
| Sonar Low, Medium, and High CHIRP up to 1 kW | |
| DownScan 455 kHz, 800 kHz, 700 kHz CHIRP, 1200 kHz CHIRP | |
| SideScan No | |
| Sonar Port 2 | Imaging sonar 9-pin XSonic® (black) |
| Sonar Low, Medium, and High CHIRP up to 1 kW | |
| DownScan 455 kHz, 800 kHz, 700 kHz CHIRP, 1200 kHz CHIRP | |
| SideScan 455 kHz, 800 kHz, 455 kHz CHIRP, 1075 kHz CHIRP | |
| Ethernet 1 | 5 pin yellow 10/100 |
| Ethernet 2 | 12-pin Gigabit Xcode connector |
Compatibility
| Lowrance | Elite FS, HDS Carbon, and HDS LIVE with version 23.3 and above |
| Simrad | NSS evo3/3S, NSO evo3/3S with version 23.4 and above |
| B&G | Zeus3/3S, Zeus3/3S GH |
| SKU | 000-15918-001 |
|---|---|
| Barcode # | 9420064121571 |
| Brand | Lowrance |
| Shipping Weight | 1.8000kg |
| Shipping Width | 0.341m |
| Shipping Height | 0.143m |
| Shipping Length | 0.265m |

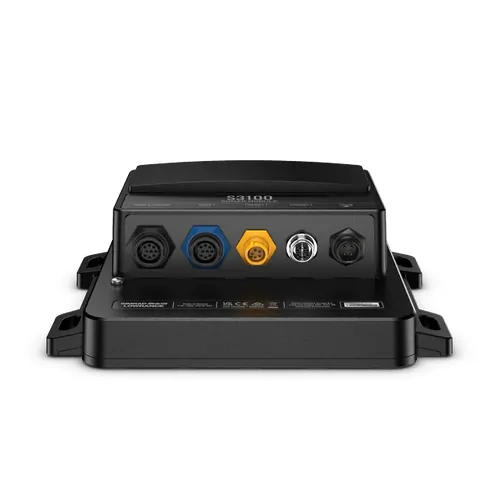

Lowrance S3100 Sonar Module
