Description
Specifications
| Items Included | K-RV060-02 |
|---|---|
| ePOWER AC 20Amp 230v Charger | * |
| ePOWER AC 40Amp 230v Charger | |
| ePOWER DC2DC 40+ Charger (Vehicle/Solar) | * |
| ePRO Plus 500A Battery Monitor with Remote Display, with Audible & Visual Alarm | * |
| ePOWER AC Charger 30A Output Fuse Connection | * |
| ePOWER AC Charger 50A Output Fuse Connection | |
| ePOWER DC2DC 60A Output Fuse Connection | * |
| 50A Load Output Fuse Connection | * |
| 8 Circuit "Wedge" Fuse Block | * |
| Low Battery Cutout (Programmed in ePRO Plus via Users Data Input) |
|
| 12mm Black Plastic Mounting Board. Water & Rot Resistance | * |
| Dimensions | 480L x 400W x 100Dmm |
| Weight | |
| (*) Indicates Standard Fitment | |
Enerdrive B-TEC LiFeP04 12v 125Ah G2 Lithium Battery
Smart Phone Monitoring System
The Enerdrive Enerdrive B-TEC G2 battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;
- Battery Capacity
- Battery Voltage
- Battery Current (Amps)
- Battery State of Charge (SOC)
- Battery State of Health (SOH)
- Battery Status
- Individual Cell Voltage
- Battery Temperature
- Battery Cycles
- Battery Alarms
- Battery Event Information
Battery Management System
The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.
Size & Weight Savings
Lithium v AGM Capacities;
- 100Ah Lithium = 160Ah AGM
- 125Ah Lithium = 200Ah AGM
- 200Ah Lithium = 320Ah AGM
- 300Ah Lithium = 480Ah AGM
Specifications
| Normal Specification | EPL-100BT-12V-SLIM | EPL-125BT-12V G2 | EPL-200BT-12V G2 | EPL-300BT-12V G2 |
|---|---|---|---|---|
| Nominal Voltage | 12.8V | |||
| Nominal Capacity | 100Ah | 125Ah | 200Ah | 300Ah |
| Cycle Life (DOD – 80% under controlled conditions) | ≥ 2000 Cycles | |||
| Standard Charge Specification (Lithium profile charger required) | ||||
| Battery Charge Temperature | 0 ̴ 45°C | |||
| Normal Charge Voltage CV/CC* | 14.20 ̴ 14.60V | |||
| Standby (Float) Voltage | 13.50 ̴ 13.80V | |||
| Maximum Charge Current | 80A @ 25˚C for 30mins | 60A @ 25°C for 30mins | 150A @ 25°C for 30mins | 190A @ 25°C for 30mins |
| Recommended Charge Current For Maximum Life, Charge in the lower amperage range |
20~50A | 20~60A | 40~100A | 60~120A |
| Standard Discharge Specification | ||||
| Battery Discharge Temperature | -20 ̴ 60°C | |||
| Battery Output Voltage Range | 11.00 ̴ 14.60V | |||
| Maximum Discharge/Pulse Current | 100A @ 25˚C ±5˚C for 30 mins | 100A @ 25˚C ±5˚C for 30 mins | 200A @ 25˚C ±5˚C for 30 mins | 250A @ 25˚C ±5˚C for 15 mins |
| Pulse Discharge Current | 250A for 1.0s | 450A for 1.0s | ||
| Discharge Cut-off Voltage | ≤11.20V | |||
| Circuit Protection | The battery is supplied with a LiFePO4 Battery Management System BMS that can monitor and optimize each single prismatic cell during charge & discharge, to protect the battery pack from overcharge, over discharge & short circuit. Overall, the BMS helps to ensure safe and accurate operation of the battery. | |||
| Over-Charge Protection | ||||
| Over-charge Protection Per Cell | 3.90V ± 0.03V | |||
| Over-charge Release Per Cell | 3.60V ± 0.05V | |||
| Over-charge Release Method | Discharge below release voltage | |||
| Over-Discharge Protection | ||||
| Over-discharge Protection Per Cell | 2.80V ± 0.05V | |||
| Over-discharge Release Per Cell | 3.20V ± 0.05V | |||
| Over-discharge Release Method | Apply Charge/Voltage ≥12.8V | |||
| Battery Manual Reset Button | No | Yes | ||
| Over Current Protection | ||||
| Discharge Over Current | 110A for 30s – 450A for 1s | 110A for 30s – 450A for 1s | 220A for 30s – 450A for 1s | 280A for 25s – 400A for 3.5s |
| Protection Reset Time | Approx 10s Auto Release | |||
| Over Current Release Method | Disconnect Load | |||
| Over Temperature Protection | ||||
| Battery Discharge Over Temperature | Protection to 65°C ± 5°C | |||
| Release at 50°C ± 5°C | ||||
| Battery Charge Over Temperature | Protection to 55°C ± 5°C | |||
| Release at 45°C ± 5°C | ||||
| Short Circuit Protection | Auto release after 5s | |||
| Dimensions | ||||
| Length | 551mm | 318mm | 505mm | 521mm |
| Width | 110mm | 165mm | 172.5mm | 280mm |
| Height | 240mm | 232mm | 265mm | 238mm |
| Weight | Approx 12.5 Kg | Approx 15.5 Kg | Approx 25.0 Kg | Approx 38.2 Kg |
| Storage Information | ||||
| Temperature & Humidity Range | ≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH | |||
| ≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH | ||||
| Self-discharge Rate | ≤ 3% Per Month | |||
Specifications
| SKU | K-RV60-02-125BT-BUNDLE |
|---|---|
| Barcode # | K-RV60-02-125BT-BUNDLE |
| Brand | Enerdrive |
| Shipping Weight | 26.0000kg |
| Shipping Width | 0.500m |
| Shipping Height | 0.300m |
| Shipping Length | 0.600m |

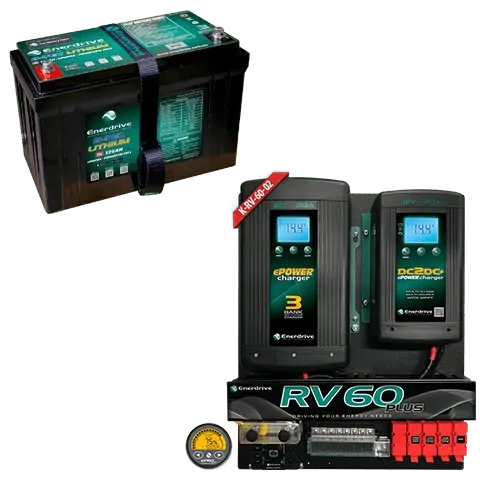

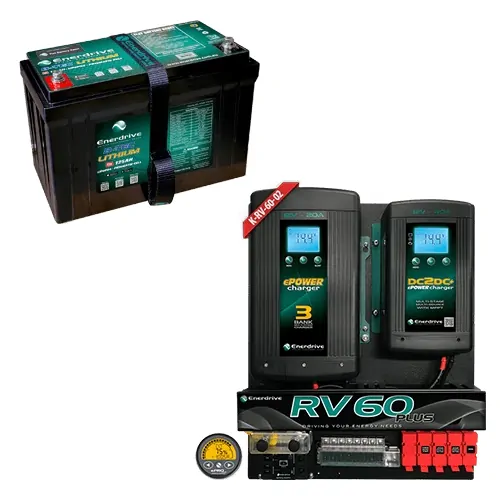

Rv60-02 Plus Board Inc 125Ah Btec Bundle
SKU: K-RV60-02-125BT-BUNDLE
More infoMake 4 payments of $887.75 over 8 weeks and get it now!
