800 GPH (50 litres Per Minute) Model
RWB830 - 12 volt 800 GPH drain kit. 2.9 amp @ 12v, 3.5 amp @ 13.6v
RWB831 - 24 volt 800 GPH drain kit. 1.5 amp @ 24v, 1.8 amp @ 27v
1100 GPH (69 litres Per Minute) Model
RWB832 - 12 volt 1100 GPH drain kit. 3.7 amp @ 12v, 4.5 amp @ 13.6v
RWB833 - 24 volt 1100 GPH drain kit. 1.8 amp @ 24v, 2.2 amp @ 27v
REPLACEMENT PARTS & OPTIONAL ACCESSORIES
RWB803 - 12v replacement 800 GPH pump - Rule 20DA
RWB804 - 24v replacement 800 GPH pump - Rule 20DA-24
RWB805 - 12v replacement 1100 GPH pump - Rule 27DA
RWB806 - 24v replacement 1100 GPH pump - Rule 27DA-24
RWB22 - Replacement fl oat switch - Rule 35A
SP856 - Replacement strainer base for pumps
SP865 - Replacement clear cover - with gasket
SP866 - Replacement cover gasket only
SP867 - Replacement strainer
SP868 - Replacement shower box only
SP854 - Replacement check valve for discharge port
SP843 - Replacement straight threaded port suits 20mm (3/4”) hose
SP845 - Replacement straight threaded port suits 25mmm (1”) hose
SP847 - Replacement straight threaded port suits 28mmm (1 1/8”) hose
SP844 - Optional - 90 degree threaded port suits 20mmm (3/4”) hose
SP846 - Optional - 90 degree threaded port suits 25mmm (1”) hose
SP848 - Optional - 90 degree threaded port suits 28mmm (1 1/8”) hose

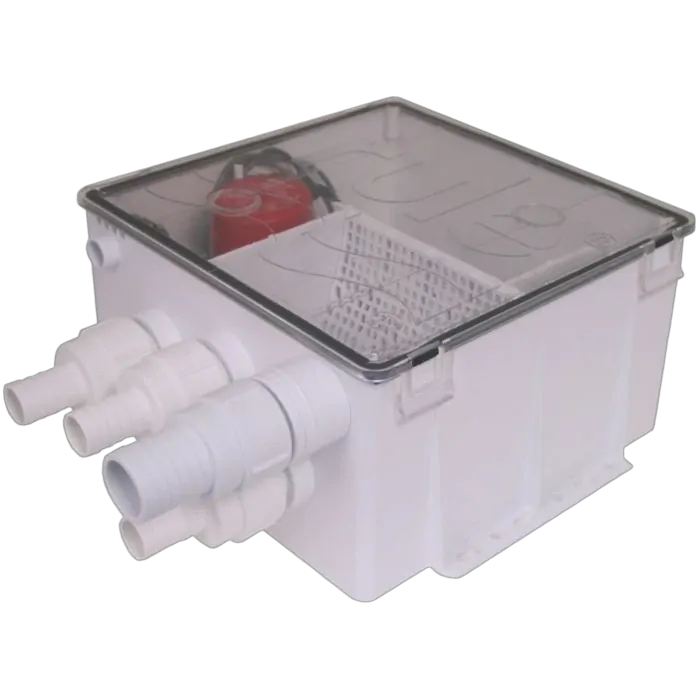

These NEW versions of the Rule automatic shower drain kits offer 2 x
GPH sizes - 800GPH & 1100 GPH. They feature threaded discharge
ports for ease of installation and snap-in components for ease of
replacement. The shower drain box is easy to install, has a removeable
fi lter for cleaning, a sealed clip-on lid to prevent unwanted water splash
and is fully serviceable without any need for tools.
Compact, full capacity automatic shower sump draining kits that turn on
and shut off automatically as required. 12v & 24v models available.
These kits feature :
- Powerful Rule 800 GPH (50 LPM) or 1100 GPH (69 LPM) pumps
- Rule-A-Matic float switch to automate the pump system
- Sealed polycarboanate snap-on lid (can also be screwed down)
- Fast fi x system - pump & float switch snap out of housing
- Threaded port fi ttings for ease and variety of installation needs
- Compact one way check valve to prevent back siphoning
- Removable wide screen fi lter to trap debris
- 4 x inlet port options (2 blanked off) with screw-on ports provided
800 GPH (50 litres Per Minute) Model
Box size : 130mm height 240mm width x 230mm length + 75mm
additiional to the length for the inlet ports & screw-on port fi ttings.
1 x 20mm (3/4") screw-on discharge port. 3 x screw-on inlet port options
(2 come blanked off). 1 x 38mm fi xed hose port.
Screw-on Inlet ports provided - 2 x 20mm, 1 x 25mm & 1 x 28mm.
RWB830 - 12 volt 800 GPH drain kit. 2.9 amp @ 12v, 3.5 amp @ 13.6v
RWB831 - 24 volt 800 GPH drain kit. 1.5 amp @ 24v, 1.8 amp @ 27v
1100 GPH (69 litres Per Minute) Model
Box size : 130mm height 240mm width x 230mm length + 75mm
additiional to the length for the inlet ports & screw-on port fi ttings.
1 x 28mm (1 1/8") discharge port - or you can use 1 of the other
screw-on port sizes provided to make a different sized discharge outlet.
3 x screw-on inlet port options (2 blanked off). 1 x 38mm fi xed hose port.
Screw-on Inlet ports provided - 2 x 20mm, 1 x 25mm & 1 x 28mm.
RWB832 - 12 volt 1100 GPH drain kit. 3.7 amp @ 12v, 4.5 amp @ 13.6v
RWB833 - 24 volt 1100 GPH drain kit. 1.8 amp @ 24v, 2.2 amp @ 27v
REPLACEMENT PARTS & OPTIONAL ACCESSORIES
RWB803 - 12v replacement 800 GPH pump - Rule 20DA
RWB804 - 24v replacement 800 GPH pump - Rule 20DA-24
RWB805 - 12v replacement 1100 GPH pump - Rule 27DA
RWB806 - 24v replacement 1100 GPH pump - Rule 27DA-24
RWB22 - Replacement fl oat switch - Rule 35A
SP856 - Replacement strainer base for pumps
SP865 - Replacement clear cover - with gasket
SP866 - Replacement cover gasket only
SP867 - Replacement strainer
SP868 - Replacement shower box only
SP854 - Replacement check valve for discharge port
SP843 - Replacement straight threaded port suits 20mm (3/4”) hose
SP845 - Replacement straight threaded port suits 25mmm (1”) hose
SP847 - Replacement straight threaded port suits 28mmm (1 1/8”) hose
SP844 - Optional - 90 degree threaded port suits 20mmm (3/4”) hose
SP846 - Optional - 90 degree threaded port suits 25mmm (1”) hose
SP848 - Optional - 90 degree threaded port suits 28mmm (1 1/8”) hose
SKU | RWB831 |
---|---|
Barcode # | 42237106568 |
Brand | Rule |
Shipping Weight | 1.0000kg |
Assembled Length | 0.200m |
Assembled Height | 0.100m |
Assembled Width | 0.100m |
