Description
Roadvision’s new Stealth Range of light bars represent the best performance from our new projector style lens in a light weight tough diecast aluminium housing. Available in single and dual row models from 7” to 52”, the smoked look lens and blackout mounting provide a low profile durable look producing up to 27,500lm of instant light output utilising Roadvision’s Thermal Management Technology.
The Stealth Series has been designed to deliver three unique performance characteristics with different combinations of distance or intensity suited to your main vehicle use and application:
- Long range slimline S40 Series reaches up to 917m @ 1 Lux and produces up to 14970lm.
- High intensity S52 Series reaches up to 812m @ 1 Lux and produces up to 19,436lm.
- The best of range and intensity from the S70 Series reaching up to 1118m @ 1 lux and producing up to 27,500lm.
Product features:
- Low profile with smoked lens and blackout mounting hardware for a STEALTH on vehicle look
- Roadvision’s best-in-class Platinum Range, backed by a 7-year warranty
- Projector Beam Technology producing more power from a smaller package
- Single row light bar producing up to 27500lm of instant light output
- Available in 7” to 52” models
- Osram Hi-Lux LED’s produce super white light close to daylight
- Multi-volt 10-30V DC input & super low current draw
- 50,000 hour LED lifespan with solid state technology
- Advanced Thermal Management Technology
- Light weight and tough die-cast aluminium housing & polycarbonate lens
- Water & dust proof IP67 rated
- 9 position adjustable anti-vibration end mount system & low profile slide mounts
- Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved
Product specifications:
- Beam Type Projector Combo 12 Driving / 42 Spot
- Maximum Lumens 14970lm
- Beam Distance 1833m
- Maximum Watts 231W
- Light Source 54x3 Watt Osram LED's
- Current Draw Amps 13.6~22.1A @ 13.8V
- Voltage Input 10-30V DC
- Dimensions AxBxC 1281x55x40mm
- Bar Length 50" (1281mm)
- Wiring 2 Pin ATP Plug
- Maximum Lux @ 10m 8402 Lux
- Meters @ 1 Lux 917m
- Meters @ 0.5 Lux 1833m
Specifications
| SKU | RBL4050SC |
|---|---|
| Barcode # | RBL4050SC |
| Brand | Roadvision |
| Shipping Weight | 4.0000kg |
| Shipping Width | 0.110m |
| Shipping Height | 0.110m |
| Shipping Length | 1.420m |
| Shipping Cubic | 0.017182000m3 |
More infoMake 4 payments of $127.75 over 8 weeks and get it now!

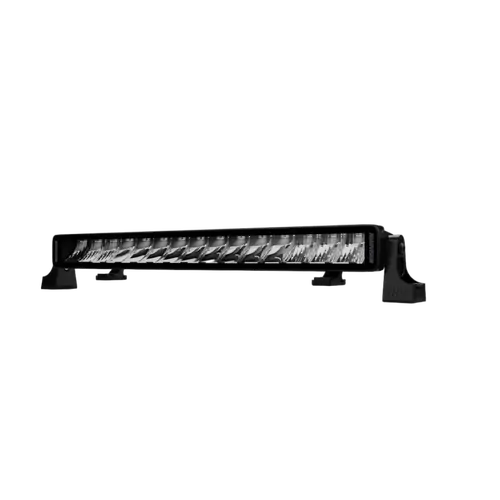

Roadvision Stealth S40 Series 50" LED Light Bar are a super compact single row light bar designed with a long range beam penetration and lower short range intensity.
