ROADVISION’s BR122 Series round LED signal lamps are a versatile stand alone or combination lamp solution, featuring Glow Tech tail lights they have both a contemporary yet classic look! Roadvision’s super bright LED signal lamps deliver the durability of maintenance free LED technology and greater visibility, providing increased safety with minimum current draw. Couple this with unbreakable PMMA lenses and an extremely tough housing manufactured from high impact ABS, the BR122 Series will survive the toughest environments. They are dust, water proof and totally maintenance free, with a life span rated at 100,000 hours. With the ROADVISION BR122 Series, it’s FIT and FORGET.
RANGE FEATURES
- Multi-volt 10-30V DC input & low current draw
- Glow Tech tail light
- 100,000 hour LED life span with solid state technology
- Maintenance free
- High impact ABS housing and PMMA lens
- Water and dust proof
- Pre-wired with 300mm of sheathed tinned copper cable
- Simple surface mount design
- ADR/ECE approved for all functions
Part Number | BR122RR |
---|---|
Input Voltage | 10-30 VDC |
Number of LEDS | Stop - 16 LEDs Tail - 20 LEDs |
Current Draw @ 13.8V | Stop/Tail - 0.2/0.15A @ 13.8V |
Lens Construction | PMMA |
Housing Construction | High Impact ABS |
Mounting Hole Centres | 45mm Stud Centres |

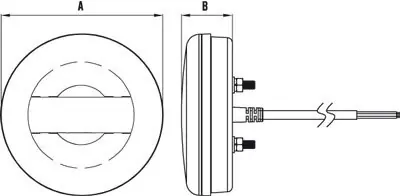

Dimensions AxB | 122 x 38mm |
Cable Length | 250mm Sheathed |
ADR Approval | S/T - E9*7R02/27*22476*00 Ref - E9*3R02/17*22476*00, |
Wiring | Earth - White Stop - Red Tail - Brown |
SKU | BR122RR |
---|---|
Barcode # | OEBC525944 |
Brand | Roadvision |
Shipping Weight | 0.8000kg |
