Description

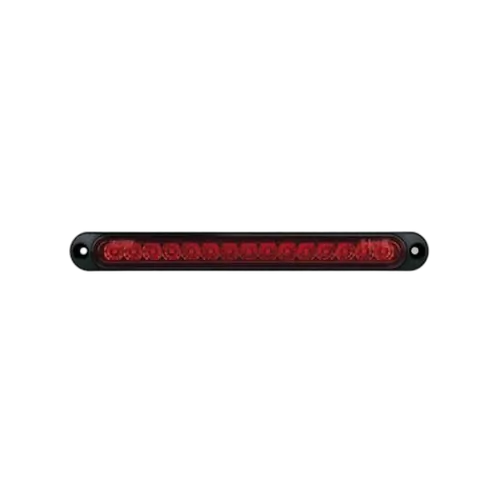

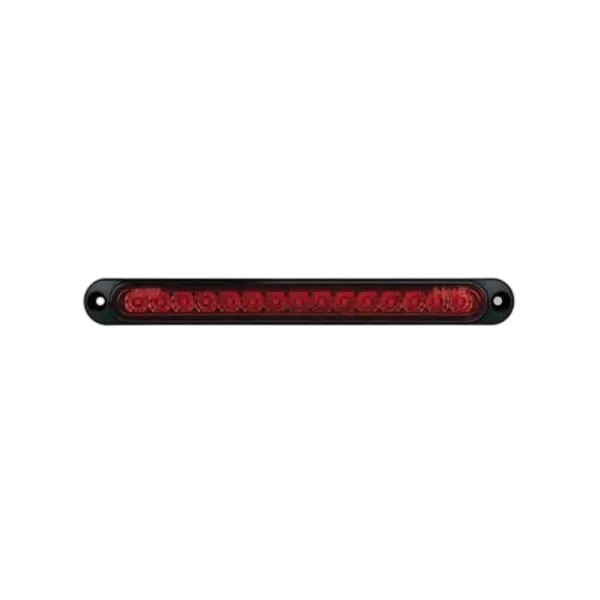

LED Stop/Tail Lamp BR70 Series 10-30V 15 LED 252 X 28mm Strip Surface Mount
Available in Stop/Tail, Indicator & Reverse functions all in an ultra-slim (28mm) strip lamp, the BR70 Series are a simple DIY trailer lighting solution. Designed for applications where space is at a premium, they deliver the durability of maintenance free LED technology and greater visibility providing increased safety. BR70’s are designed to be easily attached to horizontal or vertical mounting surfaces with a simple surface mount design. Roadvision’s BR70 Series strip signal lamps produce more light output than incandescent lamps whilst drawing a fraction of the current. Constructed with durable polycarbonate lenses and high impact ABS housings, these lamps are dust & water proof and totally maintenance free with a lifespan rated at 100,000hrs. With ROADVISION it’s FIT & FORGET.
Product features:
- Ultra-slimline LED strip signal lamps
- Multi-volt 10-30V DC input & low current draw
- Brighter than conventional incandescent systems
- 100,000 hour LED life span with solid state technology
- Maintenance free
- Sealed polycarbonate lens & high impact ABS housing
- Water and dust proof
- Pre-wired with 300mm of sheathed tinned copper cable
- Simple surface mount design
- ADR/ECE approved for all functions
Product specifications:
- Voltage - Input 10-30V DC
- No. of LED's 15 Red LED's
- Lens - Colour Red
- Dimensions 252 x 28 x 23.5mm
- Type Stop/Tail
- Brand Roadvision
- Amperage 0.01/0.05 Amps @ 13.8V DC
- Mounting Type Surface Mount
- Warranty 5 Years
- Cable Length 300mm Tinned Copper
- Approvals ECE E4-7R-028536
- Mounting Hole Cut Out 23mm
Specifications
| SKU | BR70R |
|---|---|
| Barcode # | 9340330010241 |
| Brand | Roadvision |
| Shipping Weight | 0.5000kg |
