Description

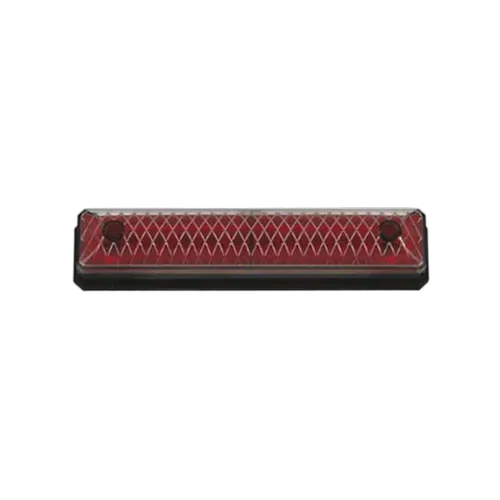

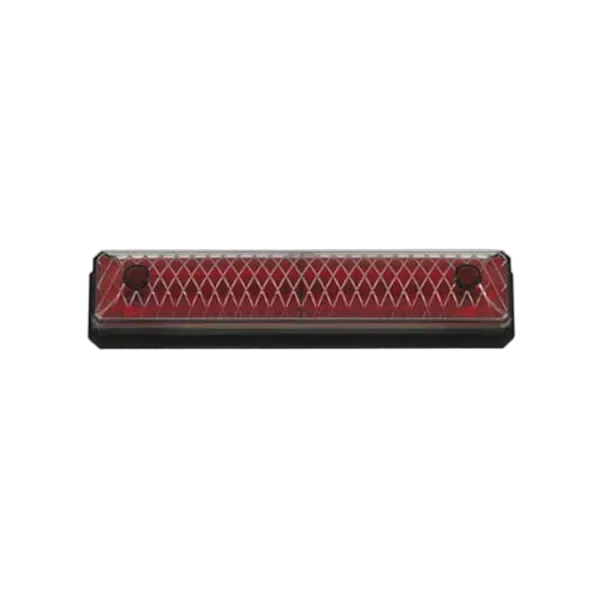

LED Stop/Tail Lamp BR200 Series 10-30V 24 LED Strip 205 x 40mm Red Lens Surface Mount
Available in Stop/Tail, Indicator & Reverse functions all in a super slim line package, the BR200 Series are a simple DIY trailer lighting solution. Designed for applications where space is at a premium, they deliver the durability of maintenance free LED technology and greater visibility providing increased safety. BR200’s are designed to be easily attached to horizontal or vertical mounting surfaces with a simple surface mount design. Roadvision’s BR200 Series signal lamps produce more light output than incandescent lamps whilst drawing a fraction of the current. Constructed with durable polycarbonate lenses and housings, these lamps are dust & water proof and totally maintenance free with a lifespan rated at 100,000hrs. With ROADVISION it’s FIT & FORGET.
Product features:
- Compact slimline LED signal lamps,
- ulti-volt 10-30V DC input & low current draw
- Brighter than conventional incandescent systems
- 100,000 hour LED life span with solid state technology
- Maintenance free
- Sealed polycarbonate lens & housing
- Water and dust proof
- Pre-wired with 300mm of sheathed tinned copper cable
- Simple surface mount design
- ADR/ECE approved for all functions
Product specifications:
- Voltage - Input 10-30V DC
- No. of LED's 24 Red LED's
- Lens - Colour Red
- Dimensions 205 x 40 x 28mm
- Type Stop/ Tail
- Brand Roadvision
- Amperage 0.2/0.05 Amps @ 13.8V DC
- Mounting Type Surface Mount
- Lens - Material Polycarbonate
- Cable Length 300mm Tinned Copper
- Approvals Stop- CRN 46091, Tail- CRN 46092
- Mounting Hole Cut Out 160mm
Specifications
| SKU | BR201R |
|---|---|
| Barcode # | 9340330054412 |
| Brand | Roadvision |
| Shipping Weight | 0.5000kg |
Roadvision LED Stop/Tail Lamp BR200 Series 10-30V 24 LED Strip 205 x 40mm Red Lens Surface Mount
SKU: BR201R
In stock
More infoMake 4 payments of $7.25 over 8 weeks and get it now!
The BR200 series LED Stop/Tail Lamp has a robust but slimline design that provides a simple DIY trailer lighting solution.
