Description

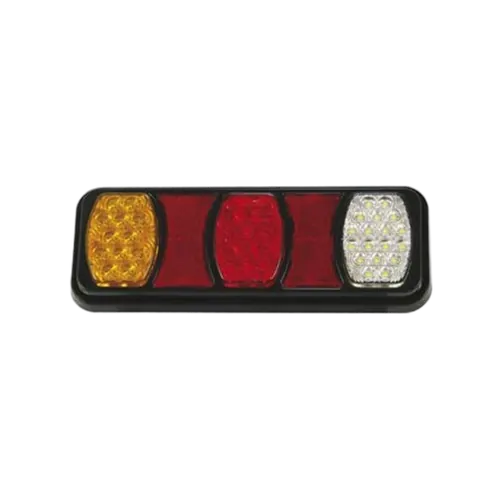

LED Rear Combination Lamp BR80 Series 10-30V Stop/Tail/Ind/Rev IP67 288 x 107mm Triple Pod Surface Mount Blister Pack
Roadvision’s super bright LED combination lamps deliver the durability of maintenance free LED technology and greater visibility, providing increased safety with minimum current draw. Constructed with durable polycarbonate lenses and housings, the BR80 Series will survive the toughest environments. The BR80 combination lamps are designed to be easily attached to horizontal or vertical mounting surfaces with a simple surface mount design. ROADVISION’s new BR80 Series combination lamps produce more light output than incandescent lamps, whilst drawing a fraction of the current. They are dust & water proof to IP67 and totally maintenance free, with a life span rated at 100,000 hours. With the ROADVISION BR80 Series, it’s FIT and FORGET.
Product features:
- Multi-volt 10-30V DC input & low current draw
- Brighter than conventional incandescent systems
- 100,000 hour LED life span with solid state technology
- Maintenance free
- Sealed polycarbonate lens & housing
- IP67 water and dust proof
- Supplied pre-wired with 300mm of sheathed tinned copper cable
- Simple surface mount design
- Retro reflector integrated into housing
- ADR/ECE approved for all functions
Product specifications:
- Voltage - Input 10-30V DC
- Amperage - Reverse 0.3 Amps @ 13.8V DC
- Amperage - Stop/Tail 0.2/0.05 Amps @ 13.8V DC
- Amperage - Indicator 0.2 Amps @ 13.8V DC
- Lens - Material Polycarbonate
- No. of LED's Ind-16 LED's. S/T- 16 LED's, Rev- 16 LED's
- Wiring Colour Reverse Black - Reverse
- Wiring Colour Indicator Yellow - Indicator
- Wiring Colour Earth White - Earth
- Wiring Colour Tail Brown - Tail
- Wire Colour Brake Red - Brake
- Dimensions 288 x 107 x 29mm
- Brand Roadvision
- Cable Length 300mm Sheathed
- Type Stop/Tail/Indicator/Reflector/Reverse
- Mounting Type Surface Mount
- Mounting Hole Cut Out 241mm
Specifications
| SKU | BR80ARW |
|---|---|
| Barcode # | 9340330010296 |
| Brand | Roadvision |
| Shipping Weight | 0.5000kg |
