Description

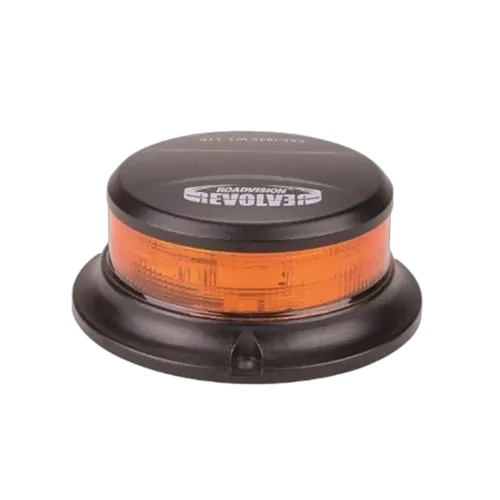

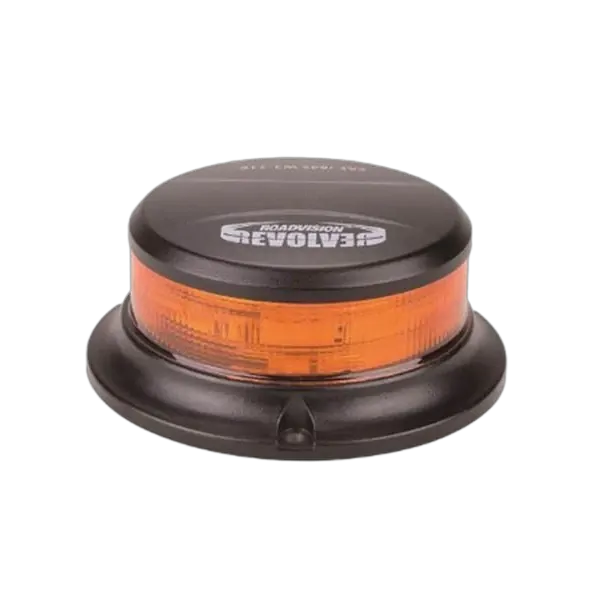

LED Beacon Micro Revolver Series 10-30V Amber Fixed Mount 32SMD LEDs 28W 10 Function SAE Class 1 112x48mm
Roadvision’s RB112 Series compact 360° high intensity beacons are at the forefront of automotive lighting technology..... Featuring state-of-the art LED technology, the REVOLVER Series of Roadvision LED beacons are specifically designed and engineered to not only meet, but exceed Australian and international regulations. With a tough Aluminium housing and impact resistant polycarbonate lens, the RB112 Series are built to last in even the toughest conditions. Featuring 32 SMD LED’s and with 10 selectable flash patterns - including single, double, triple, quad & simulated rotating - the RB112 Series are the perfect LED beacon for a wide range of industrial applications.
Product features:
- Compact low profile 10 function 360° high intensity beacons
- Single, double, triple, quad & simulated rotating flash patterns
- Multi-volt 10-30V input & low current draw
- 32 SMD LED’s produce 28W
- 100,000 hour rated LED lifespan
- Maintenance free solid state technology
- Tough polycarbonate lens & alluminium body
- Waterproof IP67 rated and vibration proof
- Compact low profile 112 x 48mm body
- Available in 3 hole fixed, magnetic or DIN Pole mounts
- EMC, ECE R10 & SAE J845 class 1 approved
Product specifications:
- Lens - Material Polycarbonate
- Light Source 32 SMD LED’s
- Current Draw Amps 1.9A @ 13.8V
- Wiring red: +ve, blue: -ve, grn: pattern
- Warranty 5 Years
- Approvals EMC, ECE R10 & SAE Class 1
- Voltage 10-30v
- Mounting Type 3 Hole Fixed 103mm Centre to Centre
- Brand Roadvision
- Cable Length 300mm Sheathed
- Wattage 28w
- Body Material Aluminium Housing
- Weatherproofing IP67
- Width (mm) 112mm
- Colour Amber
- Height (mm) 48mm
- Flash Pattern 10 Selectable Flash Patterns
Specifications
| SKU | RB112Y |
|---|---|
| Barcode # | 9340330015437 |
| Brand | Roadvision |
| Shipping Weight | 0.5000kg |
Roadvision LED Beacon Micro Revolver Series 10-30V Amber Fixed Mount 32SMD LEDs 28W 10 Function SAE Class 1 112x48mm
SKU: RB112Y
More infoMake 4 payments of $31.50 over 8 weeks and get it now!
The RB112 Revolver Beacon Light Series from Roadvision are a compact and low profile but intense fixed mount automotive beacon with variable flash patterns and a 100,000 hour rated LED lifespan.
