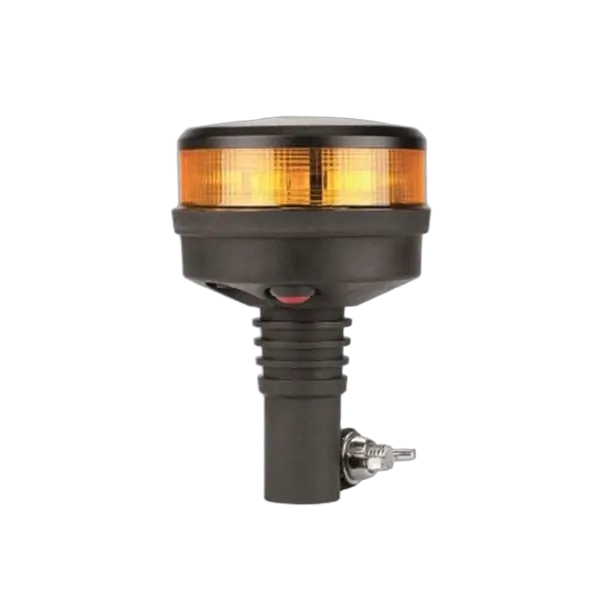

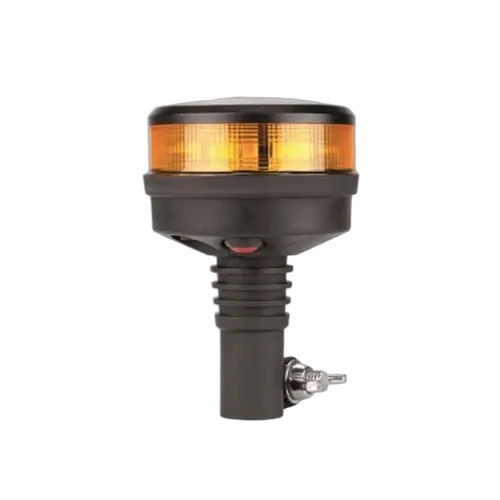

LED Beacon Micro Revolver Series 10-30V Amber DIN Pole Mount 32SMD LEDs 28W 10 Function SAE Class 1 90x135mm
Roadvision’s RB112 Series compact 360° high intensity beacons are at the forefront of automotive lighting technology..... Featuring state-of-the art LED technology, the REVOLVER Series of Roadvision LED beacons are specifically designed and engineered to not only meet, but exceed Australian and international regulations. With a tough Aluminium housing and impact resistant polycarbonate lens, the RB112 Series are built to last in even the toughest conditions. Featuring 32 SMD LED’s and with 10 selectable flash patterns - including single, double, triple, quad & simulated rotating - the RB112 Series are the perfect LED beacon for a wide range of industrial applications.
Product features:
- Compact low profile 10 function 360° high intensity beacons
- Single, double, triple, quad & simulated rotating flash patterns
- Multi-volt 10-30V input & low current draw
- 32 SMD LED’s produce 28W
- 100,000 hour rated LED lifespan
- Maintenance free solid state technology\
- Tough polycarbonate lens & alluminium body
- Waterproof IP67 rated and vibration proof
- Compact low profile 112 x 48mm body
- Available in 3 hole fixed, magnetic or DIN Pole mounts
- EMC, ECE R10 & SAE J845 class 1 approved
Product specifications:
- Light Source 32 SMD LED’s
- Housing Tough Aluminium
- Current Draw Amps 1.9A @ 13.8V
- Flash / Rotation Rate 10 Flash Patterns
- Lens Colour Amber
- Function 10 Selectable Flash Patterns
- Wiring DIN Plug inc. in Pole Mount
- Warranty 5 Years
- Dimensions 90x135mm
- Approvals EMC, ECE R10 & SAE class 1 approved
- Voltage 10-30V Multi
- Mounting Type DIN Pole Mount
- Brand Roadvision
- Lens Polycarbonate
- LED Lifespan 100,000 Hours
- Waterproof IP67 Rated
