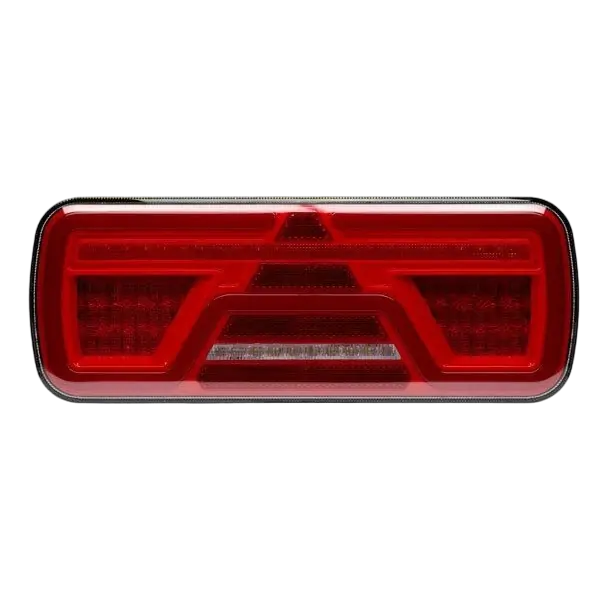

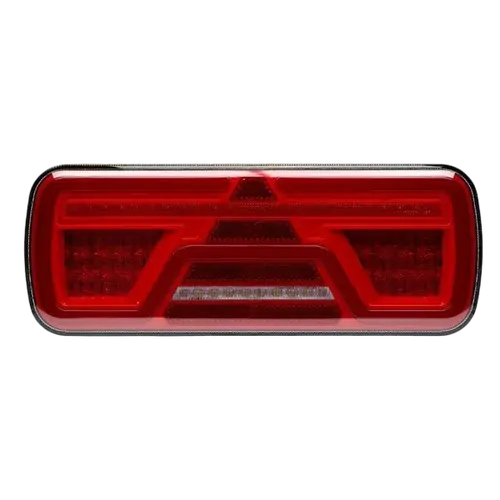

ROADVISION’s BR360 Series are the complete all-in-one fit and forget solution. Featuring the latest sequential indicator technology, the BR360 Series delivers stop/tail, reverse, fog, retro reflector and a sequential indicator that flashes progressively offering an increased level of safety. Constructed with durable polycarbonate lenses and housings, the BR360 Series will survive the toughest environments. Dust & water proof to IP67 and with a life span rated at 100,000 hours, the BR360 Series is totally maintenance free. With ROADVISION it’s FIT and FORGET.
FEATURES
- Stop/Tail Sequential Indicator, Fog & Reverse functions
- Retro Reflector incorporated into lens
- Glow Park Lamp
- Multi-volt 10-30V DC input & low current draw
- 100,000HR rated LED lifespan with solid state technology
- Simple surface mount design
- ADR/ECE approved for all functions
- Light weight tough polycarbonate housing & lens
| Part Number | BR360LARW | BR360RARW |
|---|---|---|
| Description | Combination Lamp Rectangle Left Hand | Combination Lamp Rectangle Right Hand |
| Functions | Stop/Tail/Sequential Indicator/Fog & Reverse | Stop/Tail/Sequential Indicator/Fog & Reverse |
| Voltage Input | 10-30V DC | 10-30V DC |
| Number of LED's | 24 LEDs: Stop - 12 LEDs Tail - 60 LEDs Reverse 10 LEDs Fog - 12 LEDs |
24 LEDs: Stop - 12 LEDs Tail - 60 LEDs Reverse 10 LEDs Fog - 12 LEDs |
| Current Draw Amps | Ind - 0.2A, S/T - 0.2/0.3A, Rev - 0.3A, Fog - 0.4A @ 13.8V | Ind - 0.2A, S/T - 0.2/0.3A, Rev - 0.3A, Fog - 0.4A @ 13.8V |
| Dimensions AxBxC | 360x135x36mm | 360x135x36mm |
| Lens Construction | Polycarbonate | Polycarbonate |
| Housing Construction | Polycarbonate | Polycarbonate |
| Mounting Hole Centre | 152mm Stud Centres | 152mm Stud Centres |
| Cable Length | 300mm Sheathed | 300mm Sheathed |
| Wiring Colour Codes | Earth - Black Stop - Red/Blue Tail - Green Indicator - Green/Brown Reverse - Green/Violet Fog - Red |
Earth - Black Stop - Red/Blue Tail - Green Indicator - Green/Brown Reverse - Green/Violet Fog - Red |
| ADR Approval | Ind - E9-6R01/28-22818-00 S/T - E9-7R02/27-22818-00 Rev - E9-23R00/22-22818-00 Ref - E9-3R02/17-22818-00 Fog - E9-38R00/19-22818-00 |
Ind - E9-6R01/28-22818-00 S/T - E9-7R02/27-22818-00 Rev - E9-23R00/22-22818-00 Ref - E9-3R02/17-22818-00 Fog - E9-38R00/19-22818-00 |
| SKU | BR360RARW |
|---|---|
| Barcode # | OEBC525940 |
| Brand | Roadvision |
| Shipping Weight | 1.0000kg |
