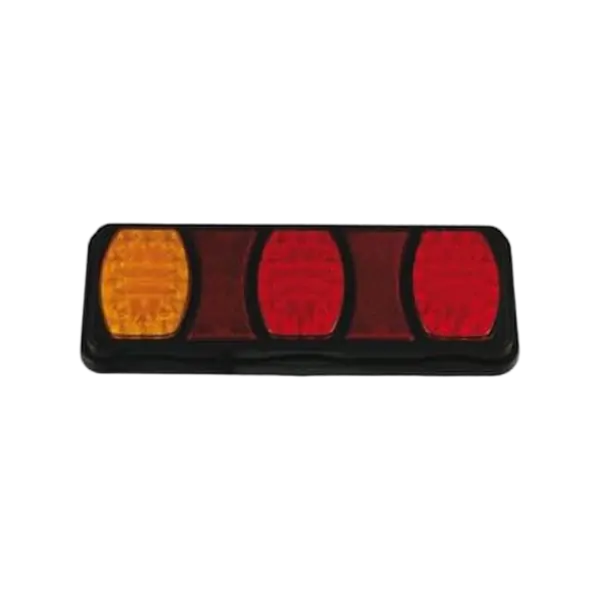

10-30V Stop/Tail (X2)/Ind IP67 356 X 134mm Surface Mount
Roadvision’s super bright LED combination lamps deliver the durability of maintenance free LED technology and greater visibility, providing increased safety with minimum current draw. Constructed with durable polycarbonate lenses and housings, the BR100 Series will survive the toughest environments. The BR100 combination lamps are designed to be easily attached to horizontal or vertical mounting surfaces with a simple surface mount design. ROADVISION’s new BR100 Series combination lamps produce more light output than incandescent lamps, whilst drawing a fraction of the current. They are dust & water proof to IP67 and totally maintenance free, with a life span rated at 100,000 hours. With the ROADVISION BR100 Series, it’s FIT and FORGET
Product features:
- Multi-volt 10-30V DC input & low current draw
- Brighter than conventional incandescent systems
- 100,000 hour LED life span with solid state technology
- Maintenance free, Sealed polycarbonate lens & housing
- IP67 water and dust proof
- Pre-wired with 300mm of sheathed tinned copper cable
- Simple surface mount design
- Retro reflector integrated into housing
- ADR/ECE approved for all functions
Product specifications:
- Voltage - Input 10-30V DC
- Amperage - Stop/Tail 0.2/0.05 Amps @ 13.8V DC
- Amperage - Indicator 0.2 Amps @ 13.8V DC
- Lens - Material Ploycarbonate
- No. of LED's - Indicator 16 Amber LED's
- No. of LED's - Stop/Tail 32 Red LED's
- Dimensions 356 x 134 x 36mm
- Brand Roadvision
- Cable Length 300mm Sheathed
- Type Stop/ Tail (x2)/ Indicator/ Reflector
- Mounting Type Surface Mount
- Mounting Hole Cut Out 298mm
