Description

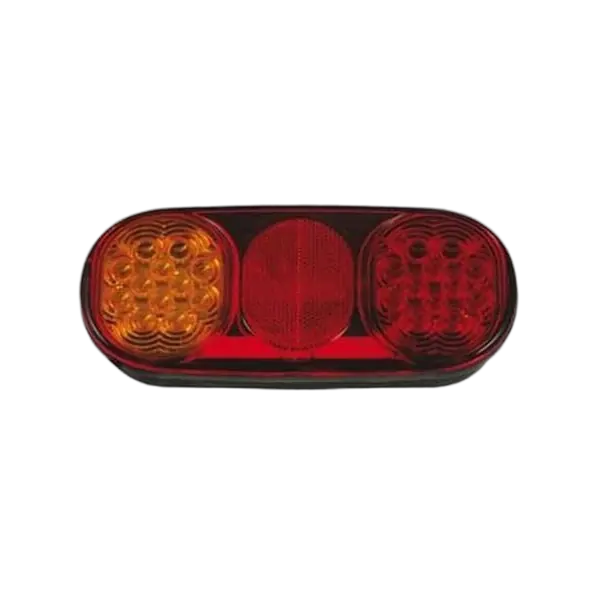

10-30V Stop/Tail/Ind/Ref 203 X 92mm LH Submersible
Featuring Stop/Tail, Indicator & Reflector or Stop/Tail, Indicator, Reflector & Licence functions designed specifically for marine trailer applications, the BR203 Series are a simple DIY lighting solution. The largest of the BR Series marine trailer lamps, they are designed for larger trailer applications, delivering the durability of maintenance free LED technology and greater visibility providing increased safety. Roadvision’s BR203 Series combination lamps produce more light output than incandescent lamps whilst drawing a fraction of the current. Couple this with unbreakable polycarbonate lenses and an extremely tough housing manufactured from high impact ABS, these lamps are dust & water proof and totally maintenance free with a lifespan rated at 100,000hrs. With ROADVISION it’s FIT & FORGET.
Product features:
- Marine LED combination lamp
- Multi-volt 10-30V DC input & low current draw
- Brighter than conventional incandescent systems
- 100,000 hour LED life span with solid state technology
- Maintenance free
- High impact ABS housing & polycarbonate lens
- Water and dust proof (submersible)
- Pre-wired with 300mm of sheathed tinned copper cable
- Available in DIY twin packs with integrated licence lamps (RHS)
- Simple surface mount design
- ADR/ECE approved for all functions
Product specifications:
- Voltage - Input 10-30V DC
- Amperage - Stop/Tail 0.2/0.05 Amps @ 13.8V DC
- Amperage - Indicator 0.2 Amps @ 13.8V DC
- Lens - Material Polycarbonate
- No. of LED's Ind- 7 Amber LEDs, S/T- 7 Red LEDs
- Dimensions 203 x 92 x 39mm
- Brand Roadvision
- Cable Length 300mm Sheathed
- Type Stop/ Tail/ Indicator/ Reflector
- Mounting Type Surface Mount
- Mounting Hole Cut Out 154mm Stud Centres
Specifications
| SKU | BR203 |
|---|---|
| Barcode # | 9340330009832 |
| Brand | Roadvision |
| Shipping Weight | 0.5000kg |
Roadvision 10-30V Stop/Tail/Ind/Ref 203 X 92mm LH Submersible
SKU: BR203
More infoMake 4 payments of $14.00 over 8 weeks and get it now!
The BR202 10-30V Stop/Tail/Ind/Ref (Left Hand Side 203x80mm) series are a compact marine LED combination lamp which is brighter than conventional incandescent systems and maintenance free.
