Description

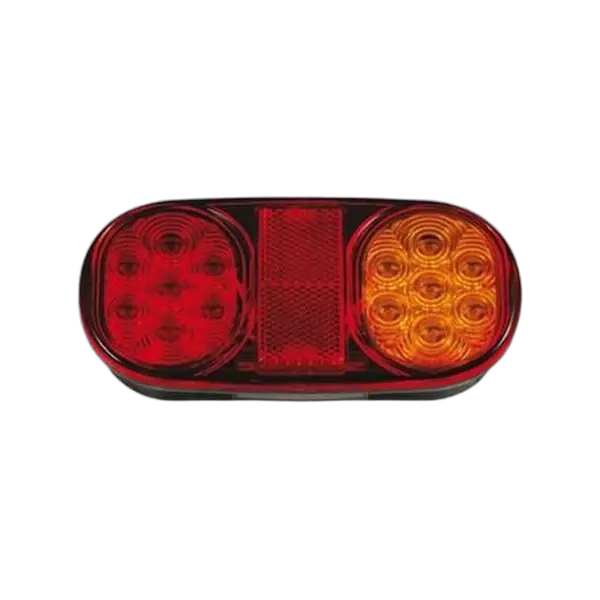

10-30V Stop/Tail/Ind/Ref 162 X 80mm RH Submersible With Lic
Featuring Stop/Tail, Indicator & Reflector or Stop/Tail, Indicator, Reflector & Licence functions designed specifically for marine trailer applications, the BR202 Series are a simple DIY lighting solution. The are designed for applications where space is at a premium, delivering the durability of maintenance free LED technology and greater visibility providing increased safety. Roadvision’s BR202 Series combination lamps produce more light output than incandescent lamps whilst drawing a fraction of the current. Couple this with unbreakable polycarbonate lenses and an extremely tough housing manufactured from high impact ABS, these lamps are dust & water proof and totally maintenance free with a lifespan rated at 100,000hrs. With ROADVISION it’s FIT & FORGET.
Product features:
- Compact marine LED combination lamp
- Multi-volt 10-30V DC input & low current draw
- Brighter than conventional incandescent systems
- 100,000 hour LED life span with solid state technology
- Maintenance free
- High impact ABS housing & polycarbonate lens
- Water and dust proof
- Supplied pre-wired with 300mm of sheathed tinned copper cable
- Available in DIY twin packs with integrated licence lamps (RHS)
- 6.2m, 7.2m & 8.3m harnessed kits available with or without licence or side-marker
- Simple surface mount design
- ADR/ECE approved for all functions
Product specifications:
- No. of LED's - Licence 4 White LED's
- Voltage - Input 10-30V DC
- Amperage - Stop/Tail 0.1/0.05 Amps @ 13.8V DC
- Amperage - Indicator 0.1 Amps @ 13.8V DC
- Lens - Material Polycarbonate
- No. of LED's Ind- 7 Amber LED's, S/T- 7 Red LED's
- Dimensions 162 x 80 x 35mm
- Brand Roadvision
- Cable Length 300mm Sheathed
- Type Stop/ Tail/ Indicator/ Reflector/ Licence
- Mounting Type Surface Mount
- Mounting Hole Cut Out 100mm Stud Centres
Specifications
| SKU | BR202NP |
|---|---|
| Barcode # | 9340330009795 |
| Brand | Roadvision |
| Shipping Weight | 0.5000kg |

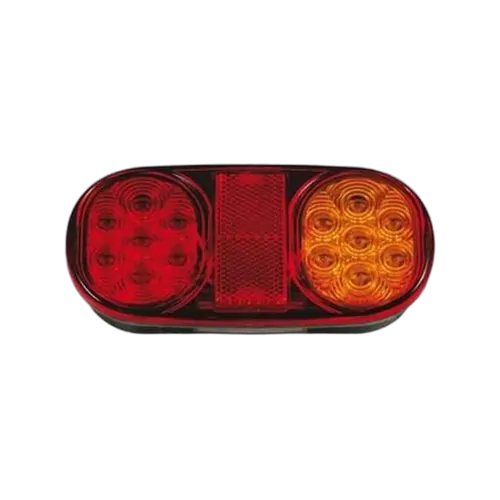

Roadvision 10-30V Stop/Tail/Ind/Ref 162 X 80mm RH Submersible With Lic
SKU: BR202NP
More infoMake 4 payments of $11.00 over 8 weeks and get it now!
The BR202 10-30V Stop/Tail/Ind/Ref (Right Hand Side with License function) series are a compact marine LED combination lamp which is brighter than conventional incandescent systems and maintenance free.
