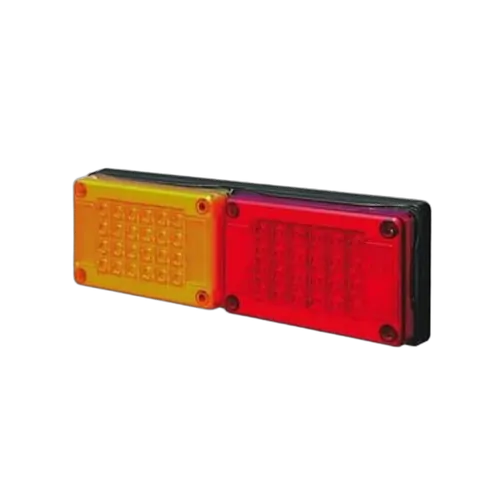

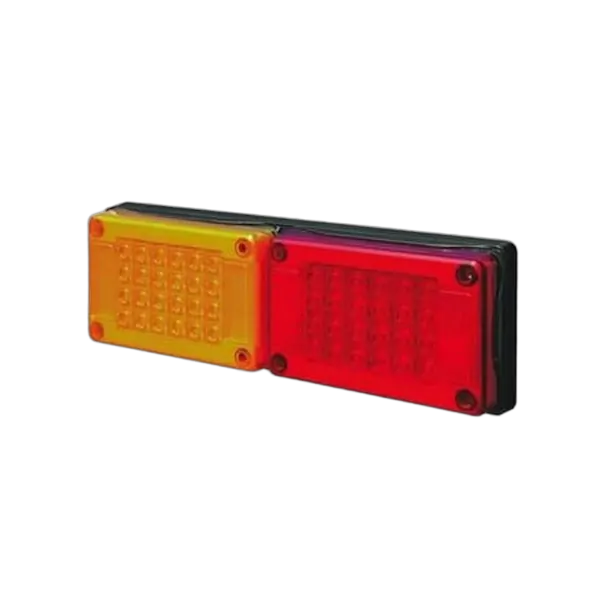

10-30V Stop/Tail/Ind Jumbo 402 x 132mm Twin Pod Surface Mount
Roadvision’s BR601 Series LED jumbo signal lamps deliver the durability of maintenance free LED technology and greater visibility providing increased safety. A complete heavy duty all-in-one solution with stop/tail, indicator & reverse functions. The BR601 Series combination lamps produce more light output than incandescent lamps, whilst drawing a fraction of the current. Couple this with unbreakable polycarbonate lenses and an extremely tough housing manufactured from high impact ABS, these lamps are dust & water proof and totally maintenance free, with a life span rated at 100,000 hours. With ROADVISION it’s FIT and FORGET.
Product features:
- Jumbo LED signal lamps
- Multi-volt 10-30V DC input & low current draw
- Brighter than conventional incandescent systems
- 100,000 hour LED life span with solid state technology
- Maintenance free
- High impact ABS housing & sealed polycarbonate lens
- Water and dust proof
- Pre-wired with 300mm of sheathed tinned copper cable
- Simple surface mount design
- Retro-fits in place of existing jumbo lamps
- ADR/ECE approved for all functions
Product specifications:
- Voltage - Input 10-30V DC
- Amperage - Stop/Tail 0.1/0.05 Amps @ 13.8V DC
- Amperage - Indicator 0.1 Amps @ 13.8V DC
- Lens - Material Polycarbonate
- No. of LED's Ind- 24 LED's, S/T- 24 LED's
- Dimensions 402 x 132 x 41mm
- Brand Roadvision
- Cable Length 300mm Sheathed
- Type Stop/ Tail/ Indicator/ Reflector
- Mounting Type Surface Mount
- Mounting Hole Cut Out 300mm & 124mm
