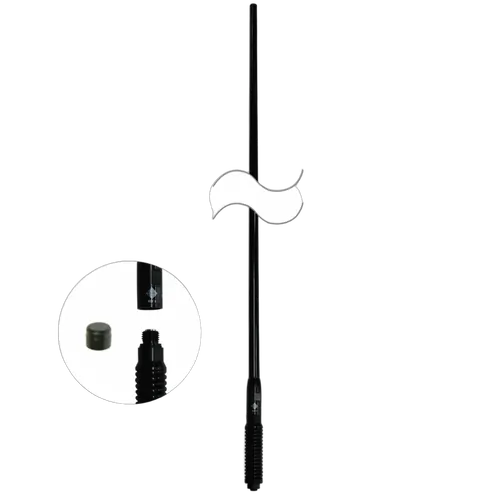

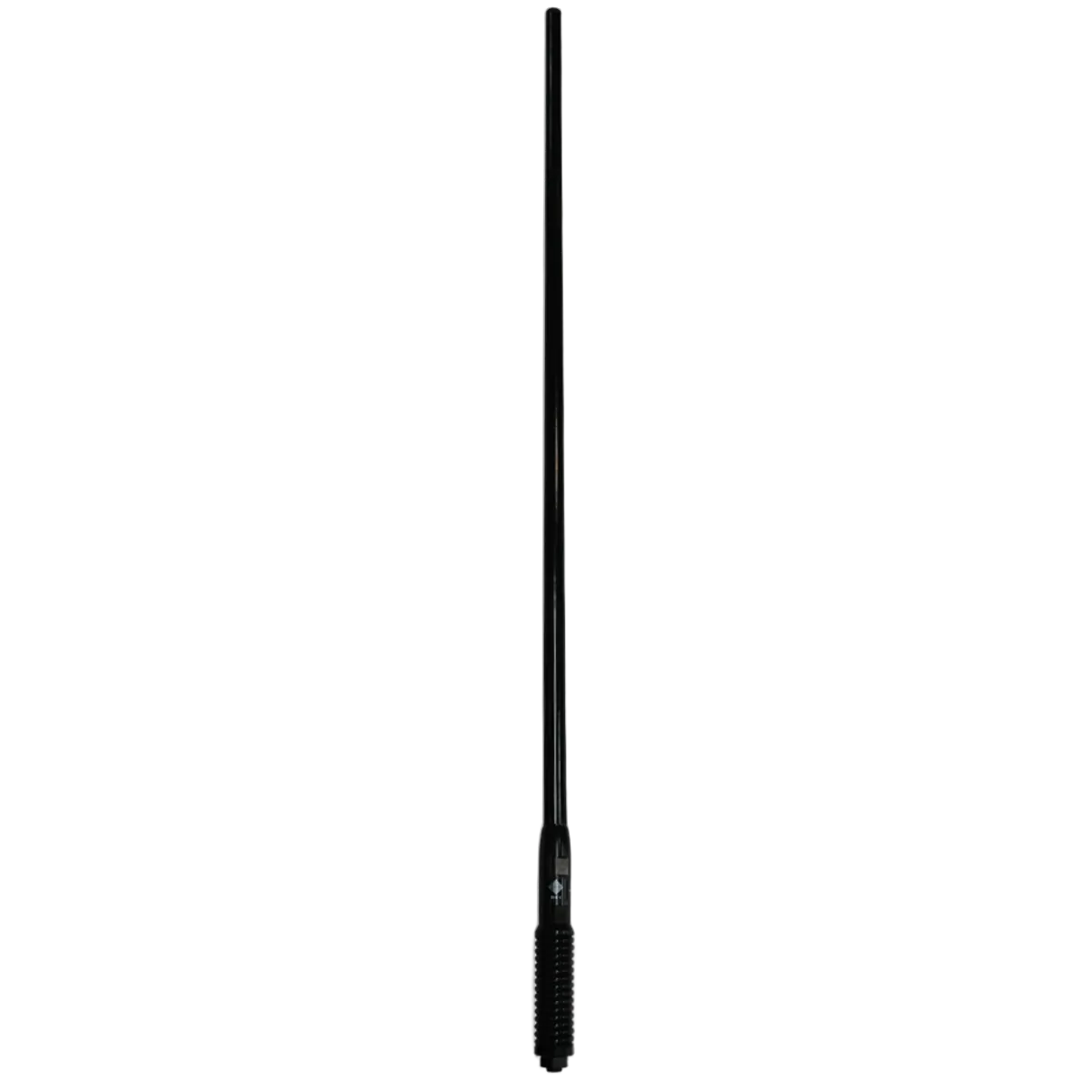

RFI UHF CB 8dBi Collinear Antenna (477 MHz); 5m FME(F) & UHF(M) Adaptor - Black
RFI UHF CB 8dBi Collinear Antenna (477 MHz); 5m FME(F) & UHF(M) Adaptor - Black
RFI UHF CB 8dBi Collinear Antenna (477 MHz); 5m FME(F) & UHF(M) Adaptor - Black
RFI
RFI UHF CB 8dBi Collinear Antenna (477 MHz); 5m FME(F) & UHF(M) Adaptor - Black
RFI UHF CB 8dBi Collinear Antenna (477 MHz); 5m FME(F) & UHF(M) Adaptor - Black
RFI UHF CB 8dBi Collinear Antenna (477 MHz); 5m FME(F) & UHF(M) Adaptor - Black
CDQ8000-B Features:

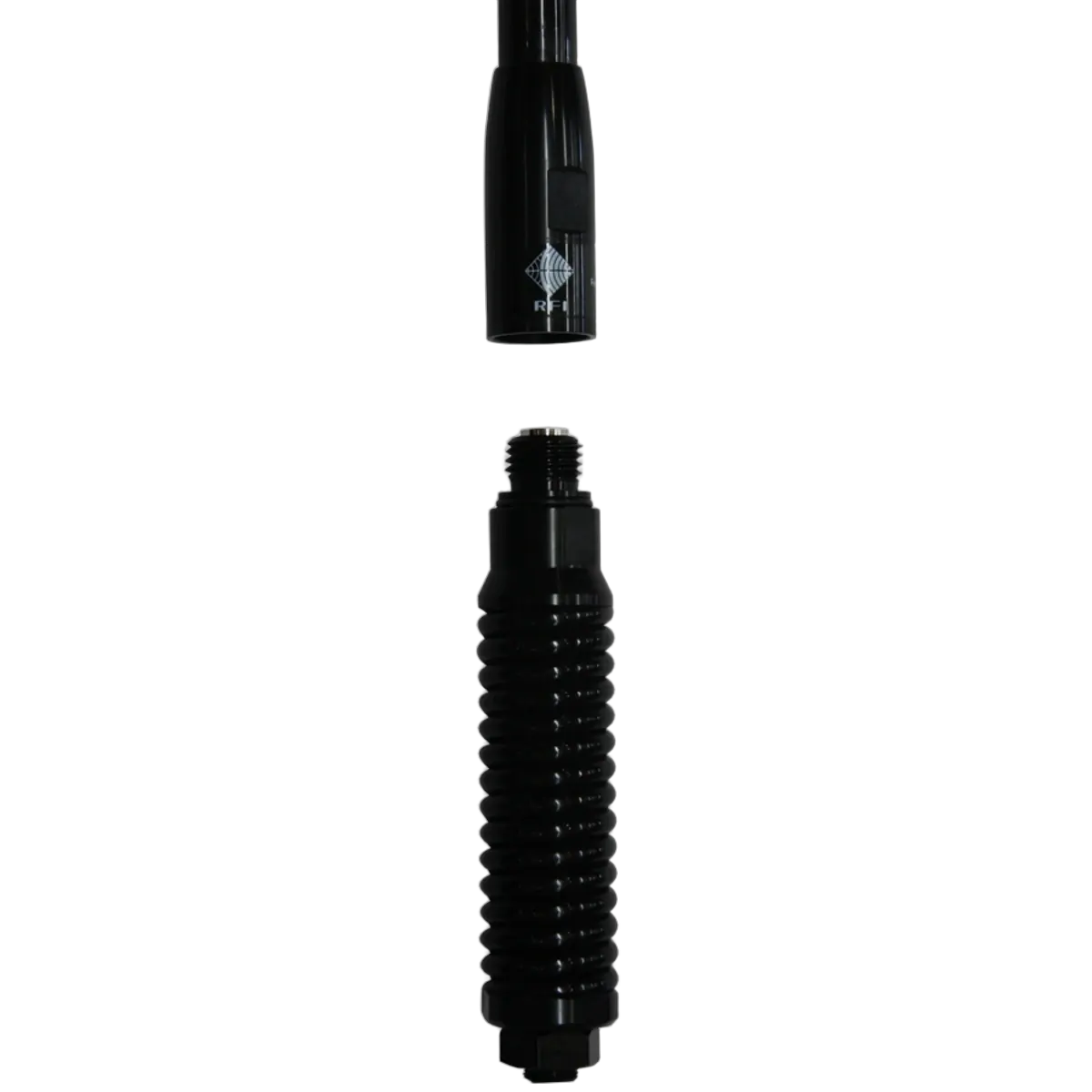

The CDQ5000 & CDQ8000 employs the new Q-Fit® removable whip system for fast and simple removal when entering low height areas such as car parks or when using car washes. This antennas are supplied with a waterproof cap to ensure no water/dust ingress into the antenna connection when the whip is removed.

With a heavy duty electro polished stainless steel spring, the CDQ5000 and CDQ8000 can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four wheel drives and trucks.

Features:
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability.
- 5 dBi (CDQ5000) and 8 dBi (CDQ8000) gain across the full 477 MHz UHF CB band.
- Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks, car wash’s or for security.
Brand RFI
Mounting Threaded Stud
Length [mm] 2080
Frequency MHz 477
Tuned Bandwidth Full. No tuning required
Radome Diameter Mm 22.5 - 15.6
VSWR <1.5:1
Nominal Gain [dBi] 8
Power [W] 25
Frequency Range [MHz] 470 - 490
Connector FME(F), UHF(M)
Band 477MHz
Tuning Supplied pre-tuned
Cable And Connector 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor
Whip Material PCB radiating element housed in tapered high impact fibreglass
Packaging Cardboard tube
Antenna Type Omni
Antenna Application Vehicle Antenna
Frequency Band UHF 380-520 MHz
Antenna Configuration SISO
  1.
SKU CDQ8000-B
Barcode # OEBC560301
Brand RFI
Shipping Weight 3.0000kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 2.150m

RFI UHF CB 8dBi Collinear Antenna (477 MHz); 5m FME(F) & UHF(M) Adaptor - Black

SKU: CDQ8000-B
In Stock
In stock
Sale price
$329.00
SAVE $126.00
RRP $455.00
Earn 3,290 Outback Rewards Points
Sale price
$329.00
SAVE $126.00
DON'T PAY RRP $455.00
PayPal Checkout
4 payments of $82.25

afterpay More info.

Make 4 payments of $82.25 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $82.25

Calculate Shipping
