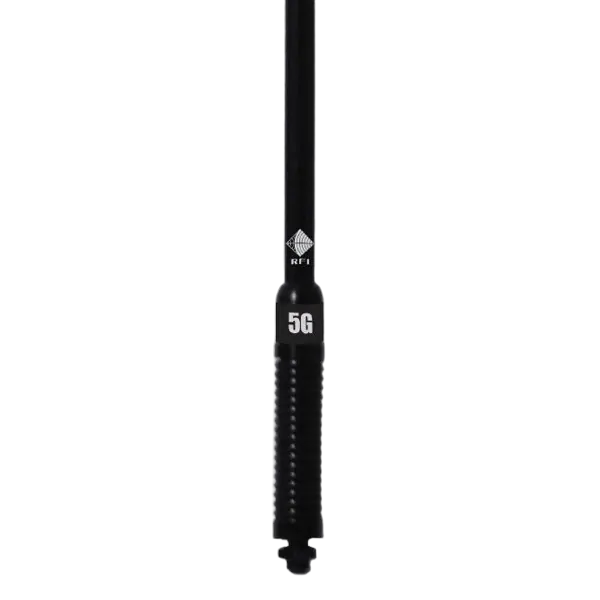

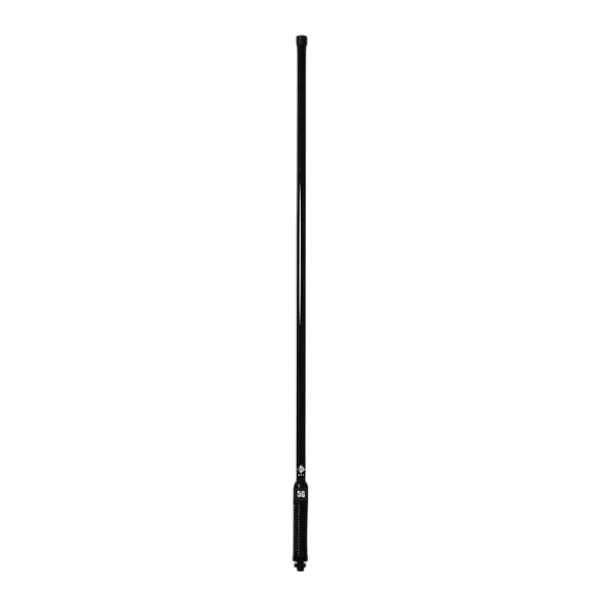

RFI CD8195-B 5G LTE 6.5DBI COLLINEAR ANTENNA (698-3800 MHZ); 5M SMA(M) - BLACK 920MM



The new CD8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz).

It is ideal for use with cellular modems & active repeaters, especially when signal is poor.



The outstanding performance of the CD8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.



The CD8100 Series includes an integrated spring with threaded stud/nut for easy installation on vehicles.


KEY FEATURES:

- Patented PCB based collinear design offering the ultimate in pattern and gain stability.

- Ideal for new 5G/LTE networks with true multi-band coverage.

- High gain across all bands making it suiting fringe and rural applications.



Colour Black
Packaging Retail Hang Sell Bag
Whip Material Fibreglass
Cable And Connector 5m RG58 low loss cable (9006) terminated with SMA male connector
Frequency Range 1710-2170, 2300 - 2700, 3400 - 3800, 698 - 960
Nominal impedance 50
Power w 10
Nominal Gain Dbi 6.5 / 4.5 / 5.5 / 6.5
Polarisation Vertical
VSWR <2.5:1
Mounting area 13-16mm diameter hole
Horizontal Beamwidth Omni-Directional
Frequency MHz 698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz
Length [mm] 920
Operating Temperature Range [°C] -40 to +85
Brand RFI
Weight [kg] 0.82
SKU CD8195-B-SMA
Barcode # 9320110037729
Brand RFI
Shipping Weight 1.0000kg
Shipping Length 0.900m

RFI CD8195-B 5G LTE 6.5dBi Collinear Antenna (698-3800 MHz); 5m SMA(M) - Black 920mm

SKU: CD8195-B-SMA
In Stock
In stock
Sale price
$172.00
RRP $249.00
Earn 1,720 Outback Rewards Points
Sale price
$172.00
DON'T PAY RRP $249.00
PayPal Checkout
4 payments of $43.00

afterpay More info.

Make 4 payments of $43.00 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $43.00

Calculate Shipping
