Description
It is our flagship product and is designed for harsh Australian conditions. Includes an integrated spring with threaded stud/nut for easy installation on vehicles. The CDQ8100 Series whips can be removed via the integrated N male connector in the whip and the N female connector on the spring assembly.
Key Features:
- Patented PCB-based collinear design offering the ultimate in pattern and gaining stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
- Q-Fit® removable whip system for ease of removal in low-height environments such as multi-story car parks, car washes, or for security.
Key Features:
- Patented PCB-based collinear design offering the ultimate in pattern and gaining stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
- Q-Fit® removable whip system for ease of removal in low-height environments such as multi-story car parks, car washes, or for security.
Brand | RFI |
Mounting | 16mm mounting hole |
Length [mm] | 1210 |
Frequency MHz | 698-960, 1710-2170 & 2300-2700MHz |
Tuned Bandwidth | Full |
Radome Diameter Mm | 22.5 - 15.6 Tapered |
VSWR | <2.5:1 |
Nominal Gain [dBi] | 7.5 / 4.5 / 5.5 |
Power [W] | 10 |
Frequency Range [MHz] | 1710 - 2170, 2300 - 2700, 698 - 960 |
Connector | SMA(M) |
Cable And Connector | 5m of 9006 low loss cable terminated with SMA male connector |
Packaging | Retail Hang Sell |
Antenna Type | Omni |
Antenna Application | Vehicle Antenna |
Frequency Band | Multi-Band 700 to 2700 |
Antenna Configuration | SISO |
Specifications
SKU | CDQ8197-B |
---|---|
Barcode # | OEBC560289 |
Brand | RFI |
Shipping Weight | 1.2000kg |
Shipping Length | 1.250m |

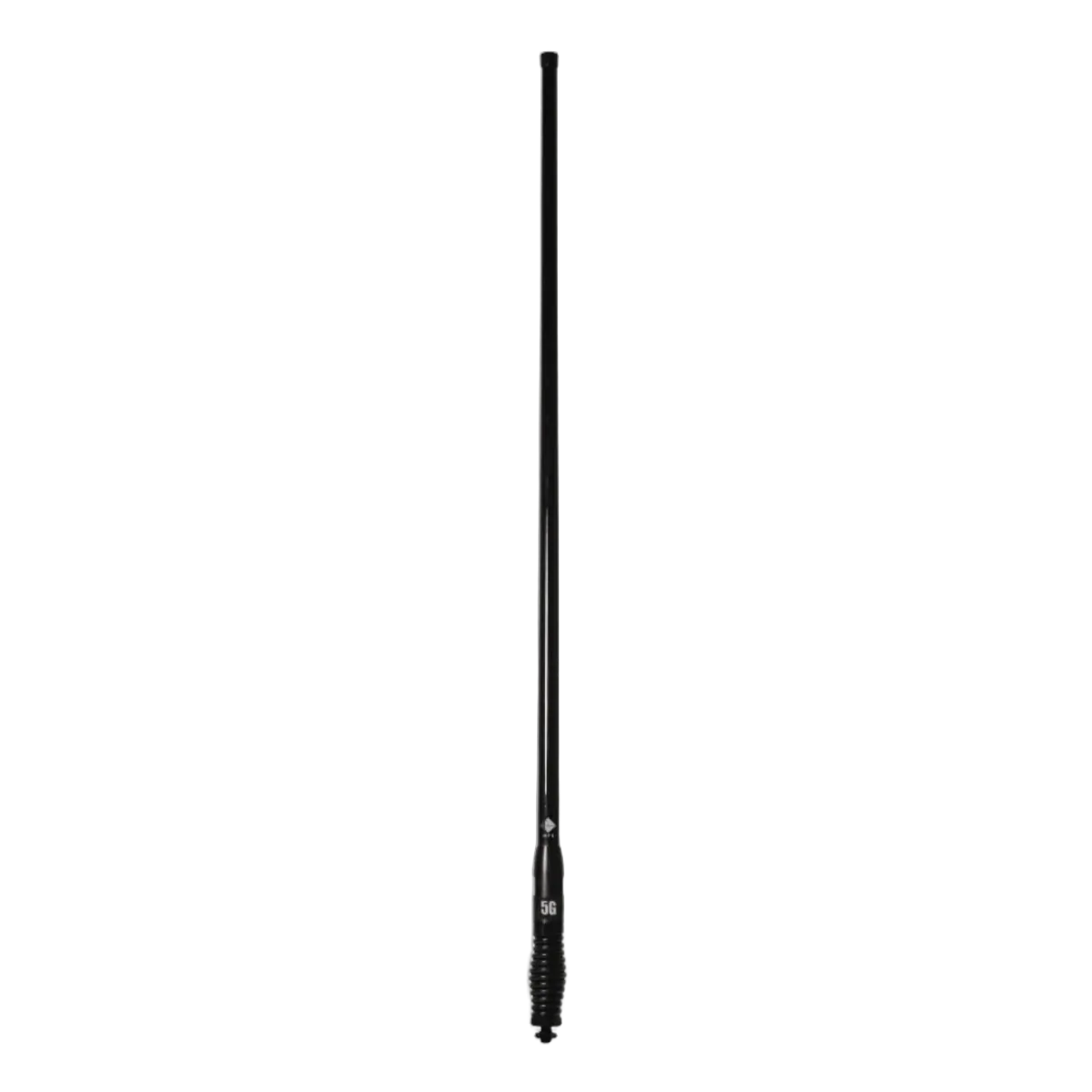

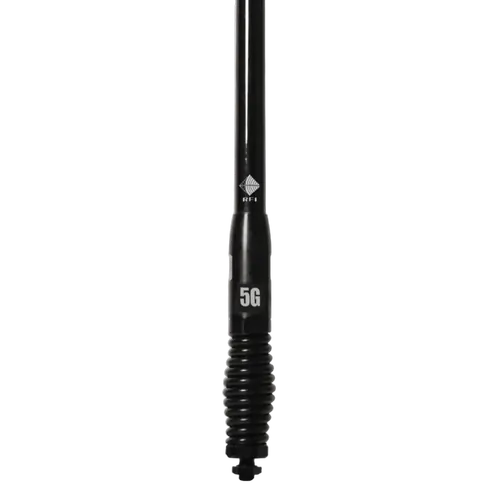

RFI 5G LTE 7.5dBi Collinear Antenna (698-3800 MHz); 5m SMA(M) - Black
