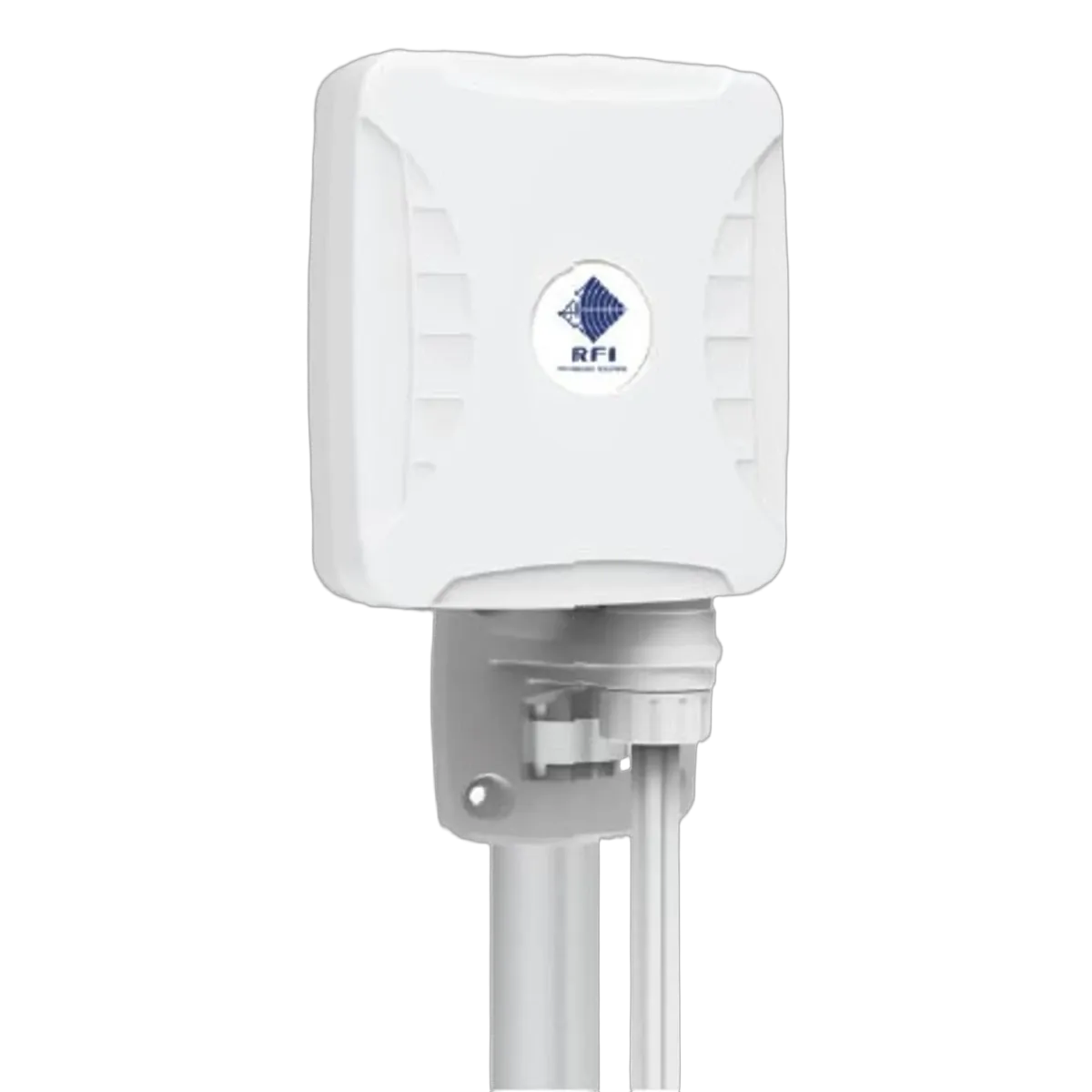

The new LTE-XPOL-2X2-5G antenna covers the 4G LTE & new 5G bands. The antenna performs exceptionally well in the following frequency bands; 698-960MHz, 1700-2700MHz & 3400-3800MHz with a peak gain of 3dBi across the frequency bands of operation.

The radiation patterns of this antenna are omni-directional and exceptionally well controlled, further adding to the performance of the antenna. This makes the antenna perfect for most application areas, such as urban, rural, agricultural and commercial, to achieve the best possible coverage over a large area. The robust mechanical enclosure design makes the antenna weather, dust and vandal resistant and gives it an IP65 rating, suitable for harsh environments.

Key Features:
- Covers the new 5G & 4G bands
- Cross polarised 2x2 MIMO

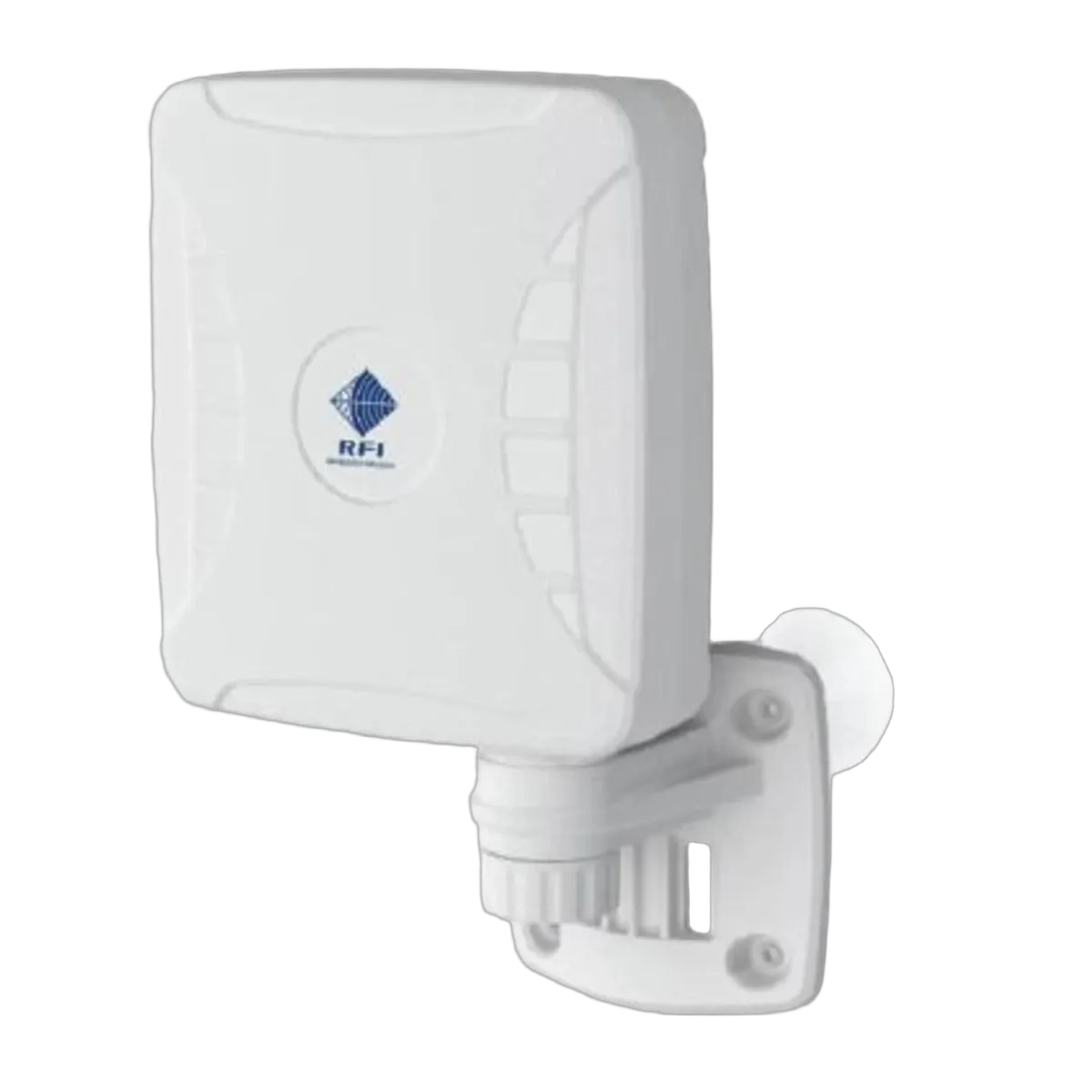

- Wall, pole or window mounts
- Lightweight & rugged

Weight [kg]    0
Brand    RFI
Frequency MHz    698-960 / 1710-2700 / 3500-3800
Tuned Bandwidth    Full
Mounting Area    Window (suction), wall or pole mount
VSWR    < 2.5:1 over 90% of the band
Polarisation    Cross Polarisation
Nominal Gain [dBi]    3
Power [W]    20
Frequency Range [MHz]    1710 - 2170, 2300 - 2700, 3300 - 3800, 698 - 960
Connector    SMA(M)
Cable And Connector    2 x 5.0m RG58 Terminated with 2 x SMA(M)
Antenna Type    Directional Panel
Antenna Application    Terminal Antenna
Frequency Band    Multi-Band 700 to 2700
Antenna Configuration    2x2 MIMO
