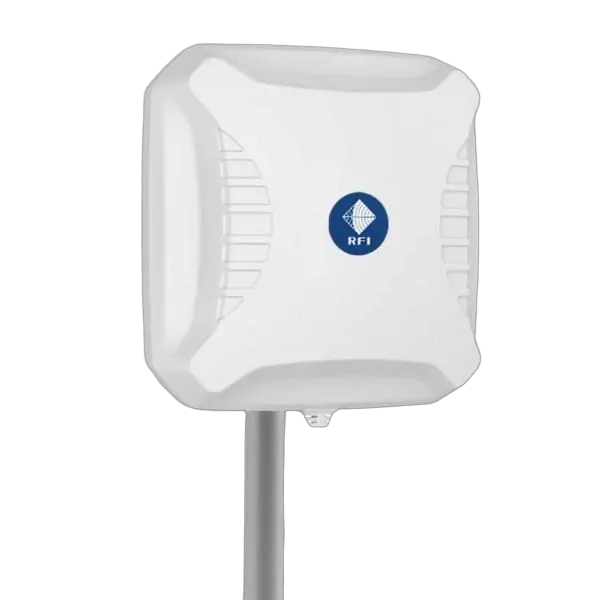

The LTE-XPOL-002-5G antenna includes the newer 3400 - 3800 MHz bands, which were not previously covered by our V2 and is suitable for 2G, 3G, 4G & 5G.
This antenna performs exceptionally well in the following frequency bands: 698 – 960MHz, 1700 – 2170MHz, 2300 – 2700MHz & 3400 – 3800MHz. In addition to the new bands, the gain in the 1700MHz and 2.7GHz is around 3dB higher than the “V2” over the same frequency bands!

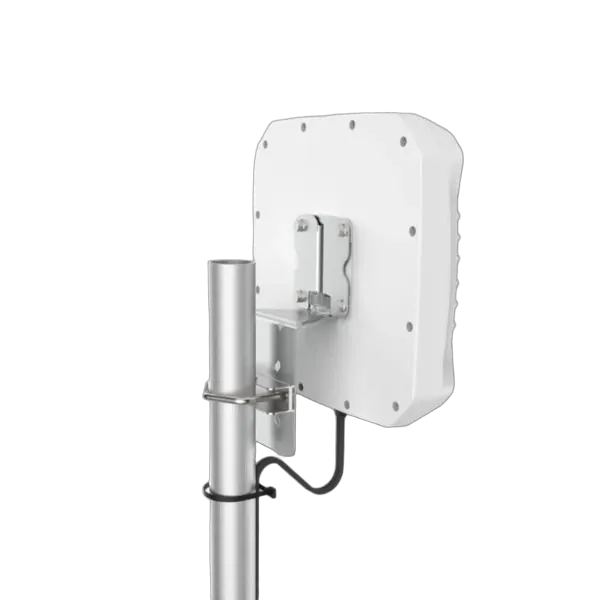

The weatherproof housing is designed for mast or wall mounting and is supplied with 2 x 10 metres of low loss RG58 cable terminated with SMA male connectors.

Key Features:
- 2-3dB higher gain over all the bands compared to “V2”
- New 3400MHz-3800MHz, 5G band with 11dBi gain
- Consistent broadband performance
- X-Polarised 2x2 MIMO antenna
- Wall or pole mountable
- Lightweight & rugged
- Weatherproof & waterproof (IP65)
- High pattern consistency across bands for 4G/5G carrier aggregation

Brand    RFI
Tuned Bandwidth    Full. No tuning required
Construction    Cream ABS
Termination    10m of RG58 fitted with SMA (M) connector per feed
VSWR    < 1.5:1 (over 95% of the band)
Dimensions    H 260, W 260
Nominal Gain [dBi]    9 dBi @ 698-960MHz , 10 dBi @ 1710-2700MHz , 11 dBi @ 3400-3800MHz
Frequency Range [MHz]    1710 - 2170, 2300 - 2700, 3300 - 3800, 698 - 960
Connector    SMA(M)
Antenna Type    Directional Panel
Antenna Application    Terminal Antenna
Frequency Band    Multi-Band 700 to 2700
Antenna Configuration    2x2 MIMO
