Features / Specifications

• Recessed mount
• Surface Mount Brackets Available
• Low profile slimline design
• ADR/ECE approved
• IP67 100% Water proof
• 12 Volt or 24 Volt
• 237mm x 25mm x 3mm
• 5 Year Warranty


Download Data Sheet

Fitting Instructions

Recessed - Mount onto flat surface horizontally. Push lamp and grommet into cutout (cut out 203mm x 19mm) in mounting surface, run wires through back and fix with screws (Max Torque - 8kgf/cm). Products can also be mounted using surface mounting brackets sold separately. Please refer to ADR 13/00 for mounting instructions.

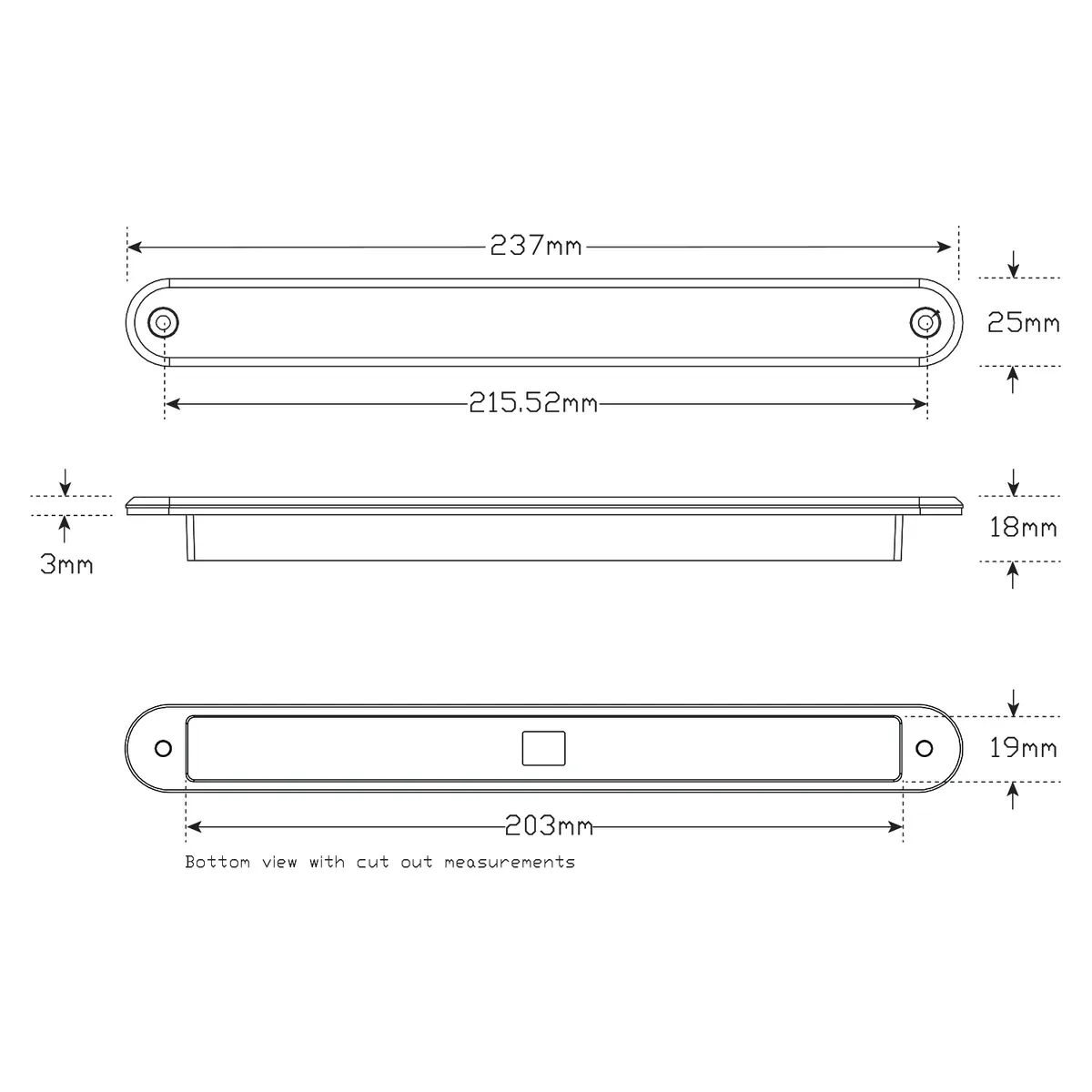

Technical Drawings
