• Solid 5mm alloy gussets adding strength and rigidity in rougher seas and transportation.
• 2" diameter premium high tensile aluminium tubing.
• Universal design fits consoles up to 128cm wide.
• Prefabricated, pre-welded construction.
• Assembles and installs without welding.
• Marine grade clear anodized finish.
• Marine grade 316 stainless steel fasteners included.

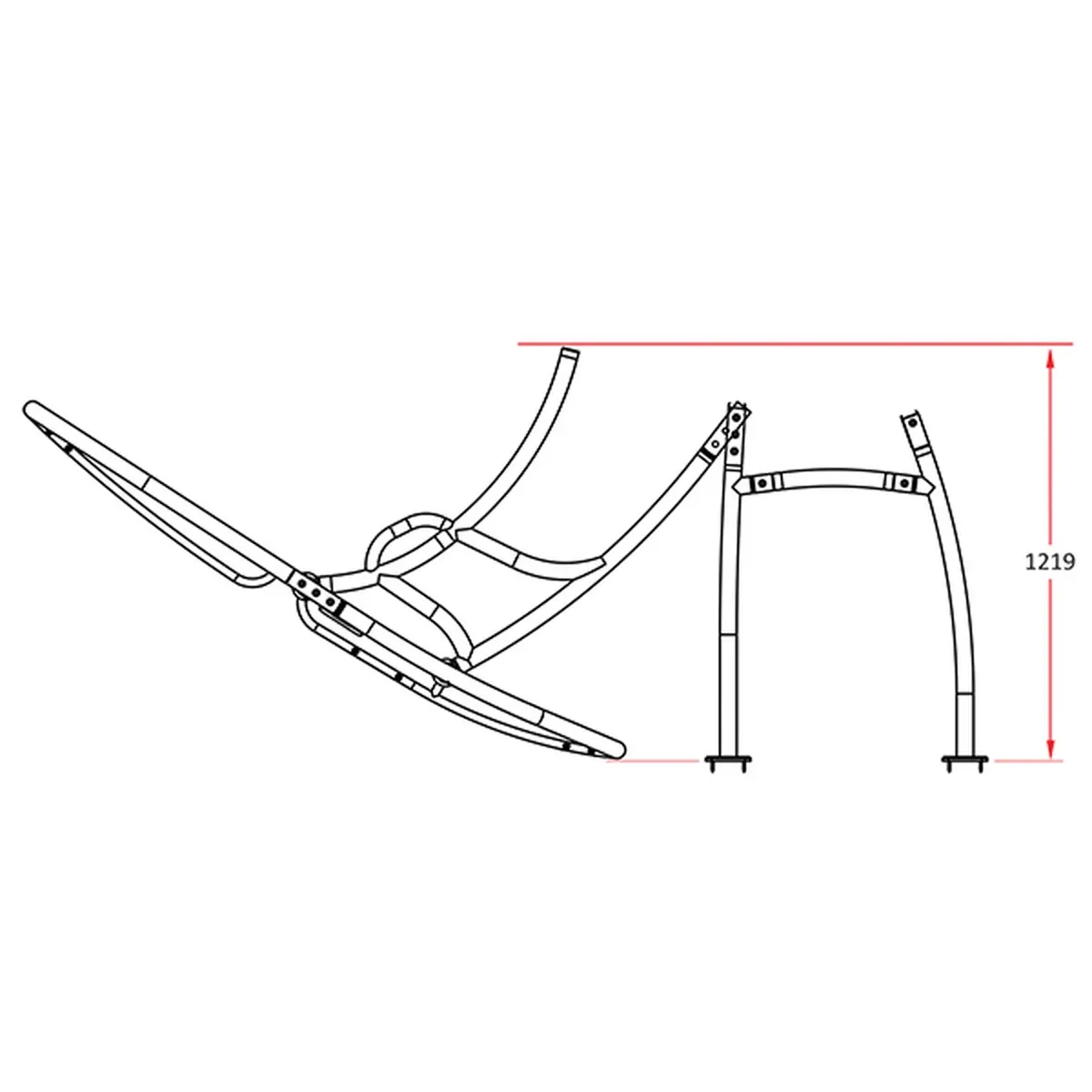

• Folds forward when not in use.
• 7 anodised solid plates provides mounting points for lights, UHF antenna, radar, outriggers and much more.
• Outer mounting plates are 12mm thick.
• Centre mounting plates are 5mm thick.
• Black acrylic canvas with lashing included.
Acrylic Canvas Top:
• Heavy-duty solution dyed yarn filtering up to 90% of the suns heat and light.
• Marine grade canvas is water repellent.
• UV stabilised.
• Easy to clean.
• Lashing included.
Part No. | 293414 |

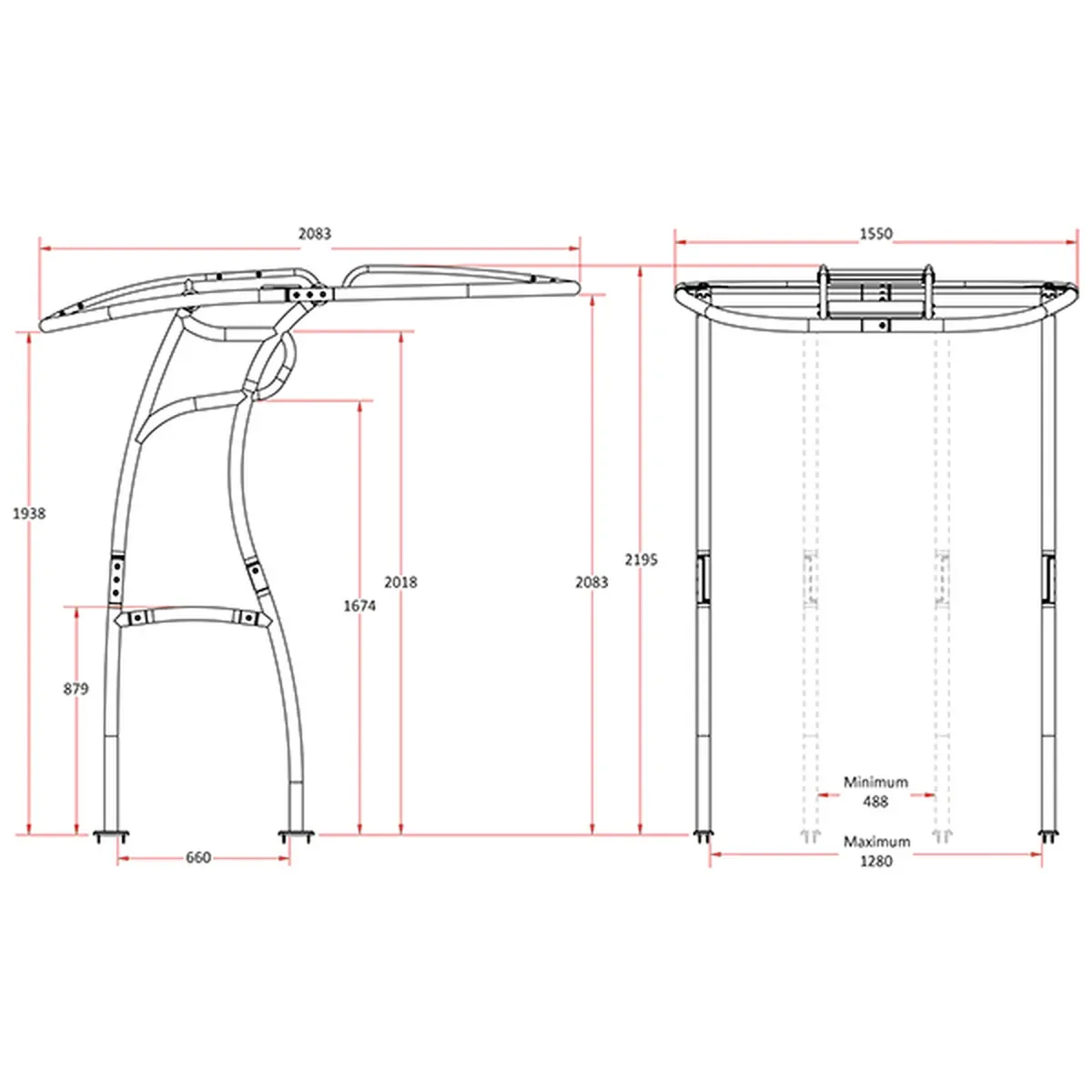

Length | 2083mm |
Width | 1550mm |
Height | 2195mm |
Grab Rail Height | Min 1674mm - Max 2018mm |
Support Legs Width | Min 488mm - Max 1280mm |
T-Top Colour | Black |
SKU | 293414 |
---|---|
Barcode # | 9330420197495 |
Brand | Relaxn |
Shipping Weight | 50.0000kg |
Shipping Width | 1.200m |
Shipping Height | 0.600m |
Shipping Length | 1.600m |
Shipping Cubic | 1.152000000m3 |
