• Solid 5mm alloy gussets adding strength and rigidity in rougher seas and transportation.
• 2" diameter premium high tensile aluminium tubing.
• Universal design fits consoles up to 128cm wide.
• Prefabricated, pre-welded construction.
• Assembles and installs without welding.
• Marine grade clear anodized finish.
• Marine grade 316 stainless steel fasteners included.

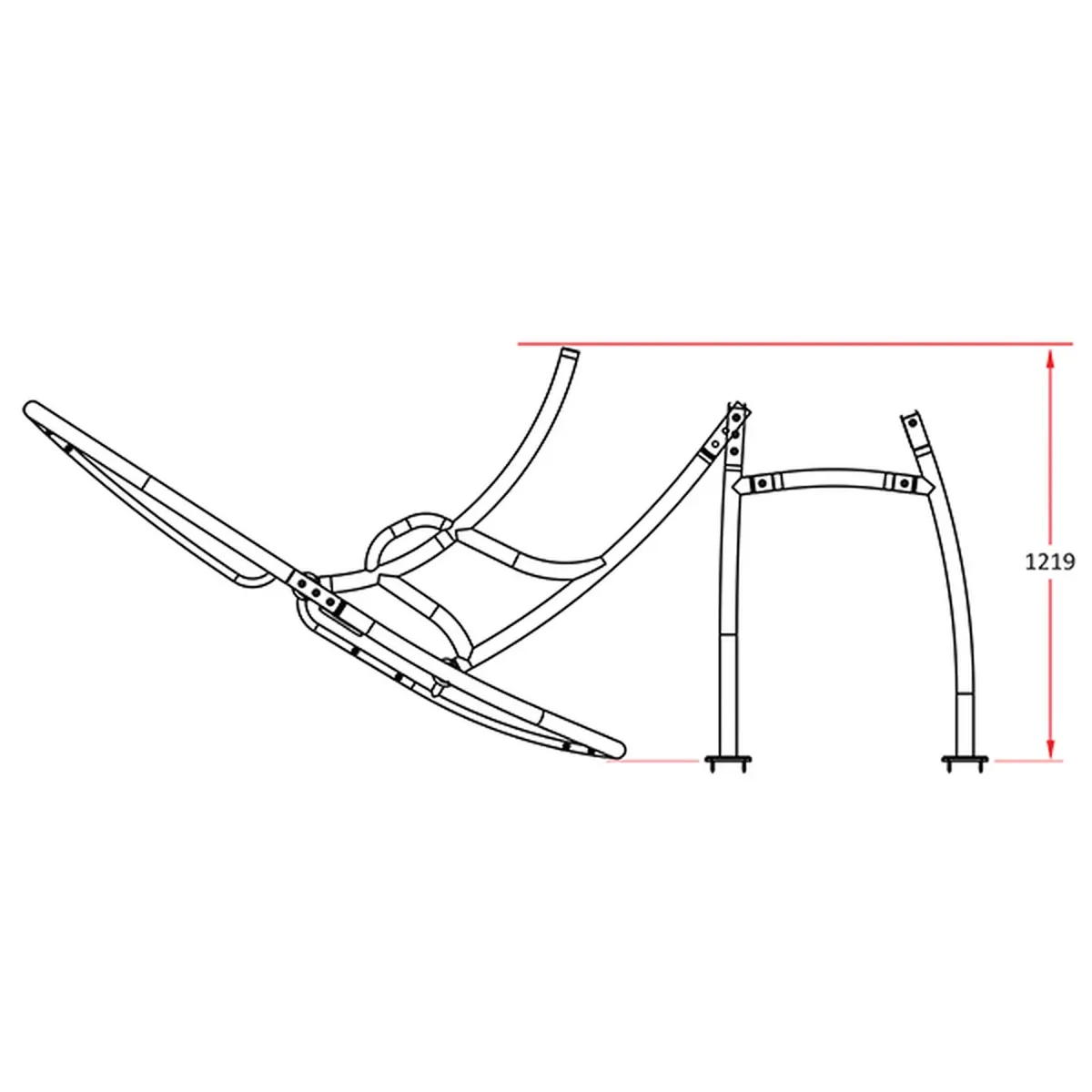

• Folds forward when not in use.

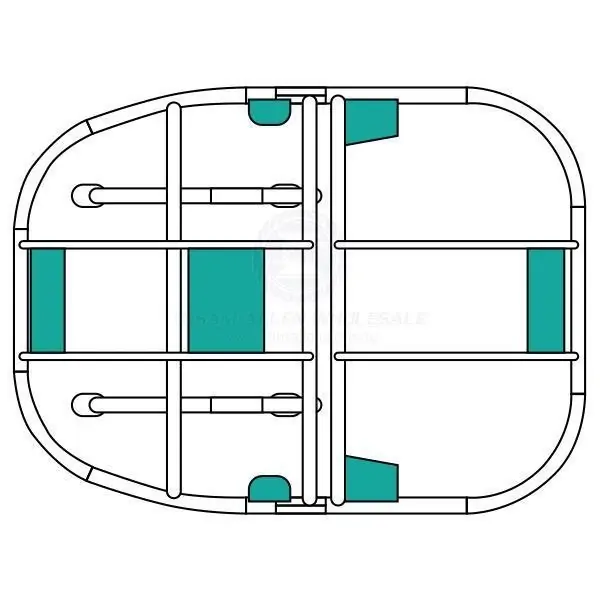

• 7 anodised solid plates provides mounting points for lights, UHF antenna, radar, outriggers and much more.
• Outer mounting plates are 12mm thick.
• Centre mounting plates are 5mm thick.
• Black acrylic canvas with lashing included.

Acrylic Canvas Top:
• Heavy-duty solution dyed yarn filtering up to 90% of the suns heat and light.
• Marine grade canvas is water repellent.
• UV stabilised.
• Easy to clean.
• Lashing included.

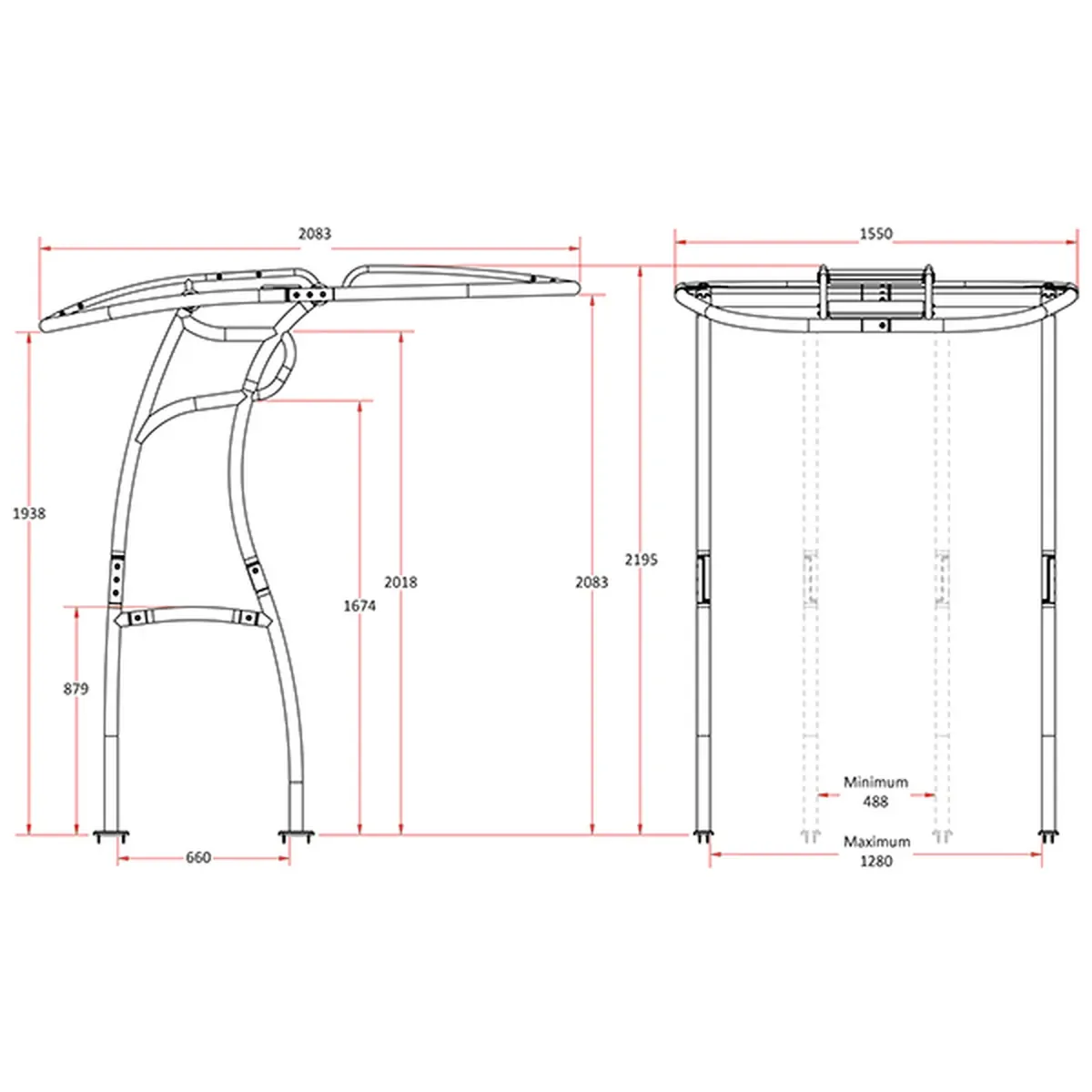

Part No.293413

Length2083mm

Width1550mm

Height2195mm

Grab Rail HeightMin 1674mm - Max 2018mm

Support Legs WidthMin 488mm - Max 1280mm
