Redarc RedVision Manager30 Kit

This kit includes The Manager30 main unit, REDARC’s award-winning 30amp battery management system for charging auxiliary batteries used in recreational automotive and marine applications. The DC to DC charger incorporates AC, DC and solar inputs to achieve the best charge for an auxiliary battery and is suitable for all major battery types including Lead Acid, Lithium, Gel, Calcium, or AGM batteries.

The Manager30 operates like 6 separate products, it charges an auxiliary battery from the vehicle while on the move, it’s a 240-volt charger, a solar regulator, a battery isolator, a load disconnect controller, all with a remote battery monitor for up to date battery information and charge status.

Product Features:

• Combines power protection, distribution, and control in one unit
• Distribution Box accepts inputs from a range of battery management components via the Manager30 allowing close monitoring of all battery usage and charging information
• Accepts inputs for monitoring up to 6 water levels and temperatures
• Capable of switching devices on/off like lights, TV, electric steps etc
• Bluetooth connectivity to BYOD iOS and Android to the exclusive RedVision User App
• Fully configurable home screen via RedVision Configurator App

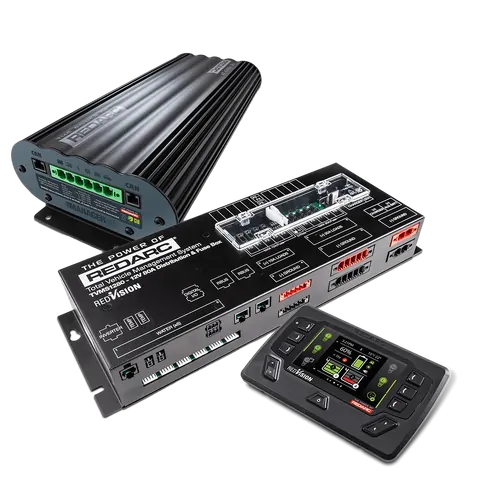

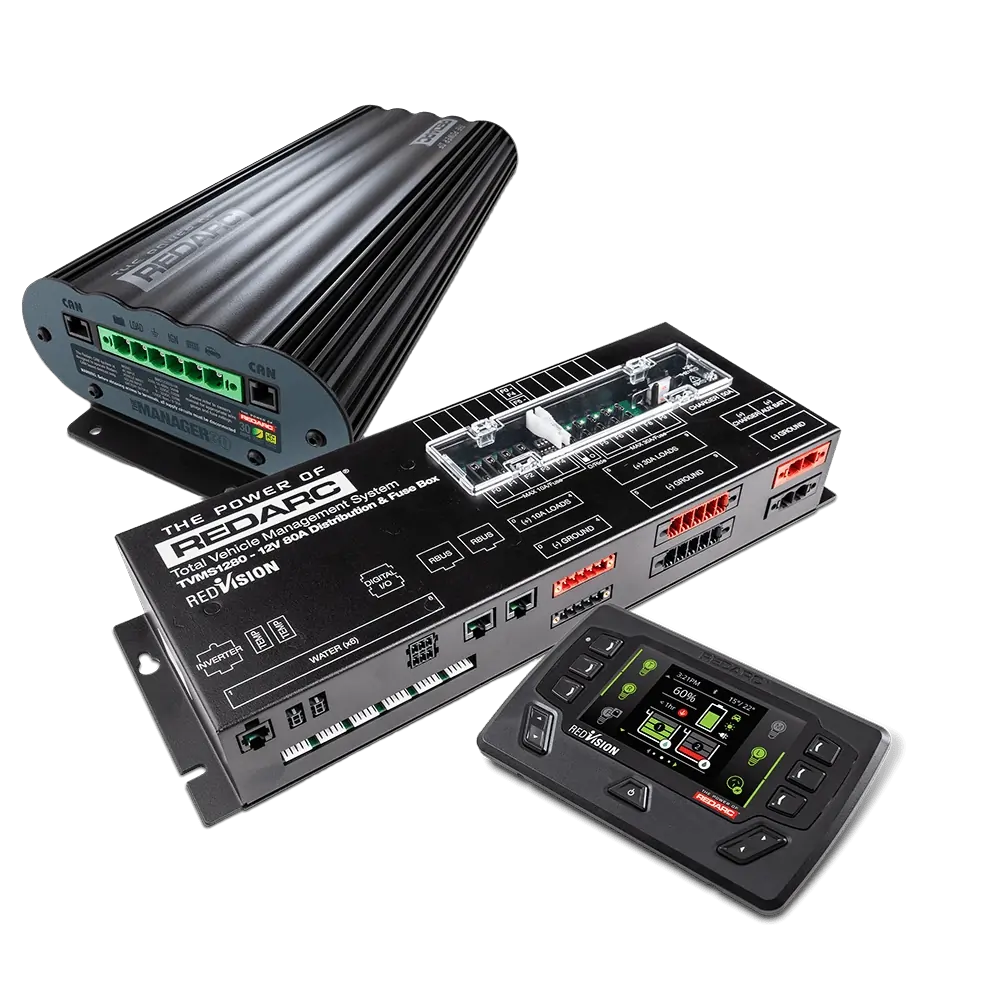

This kit includes;

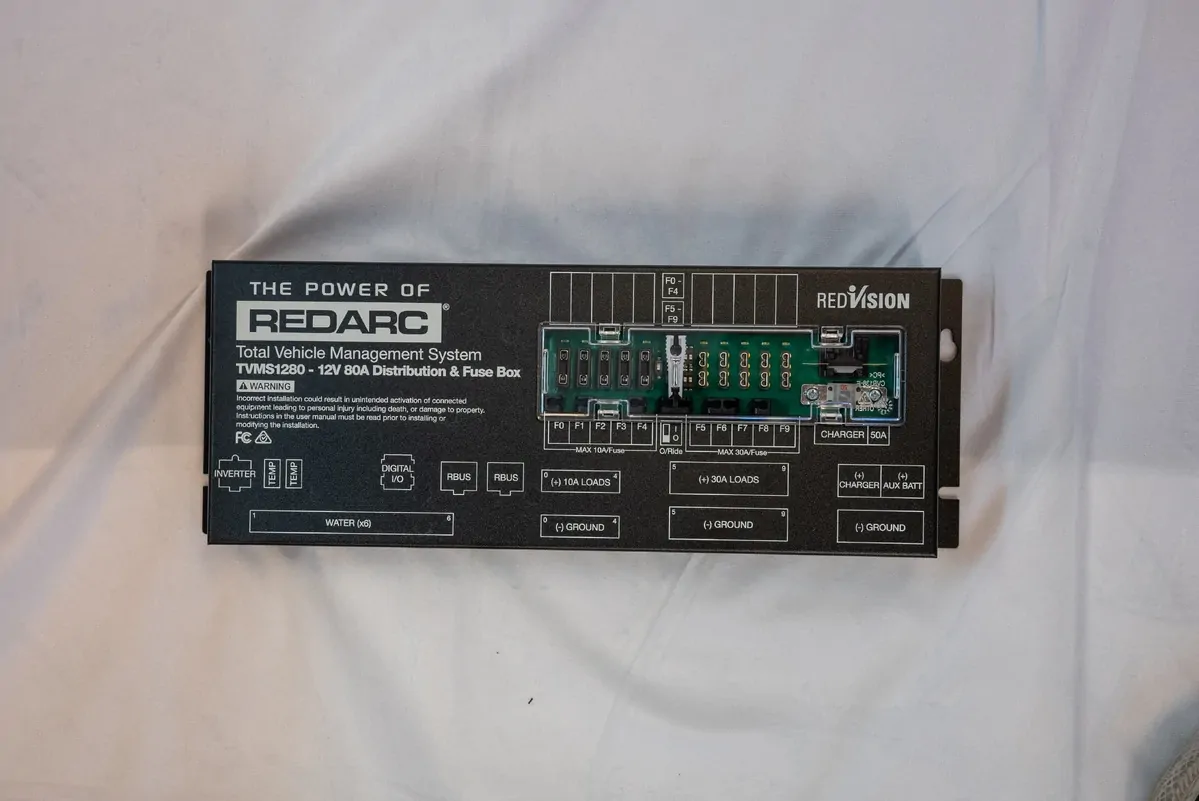

• RedVision Distribution Box

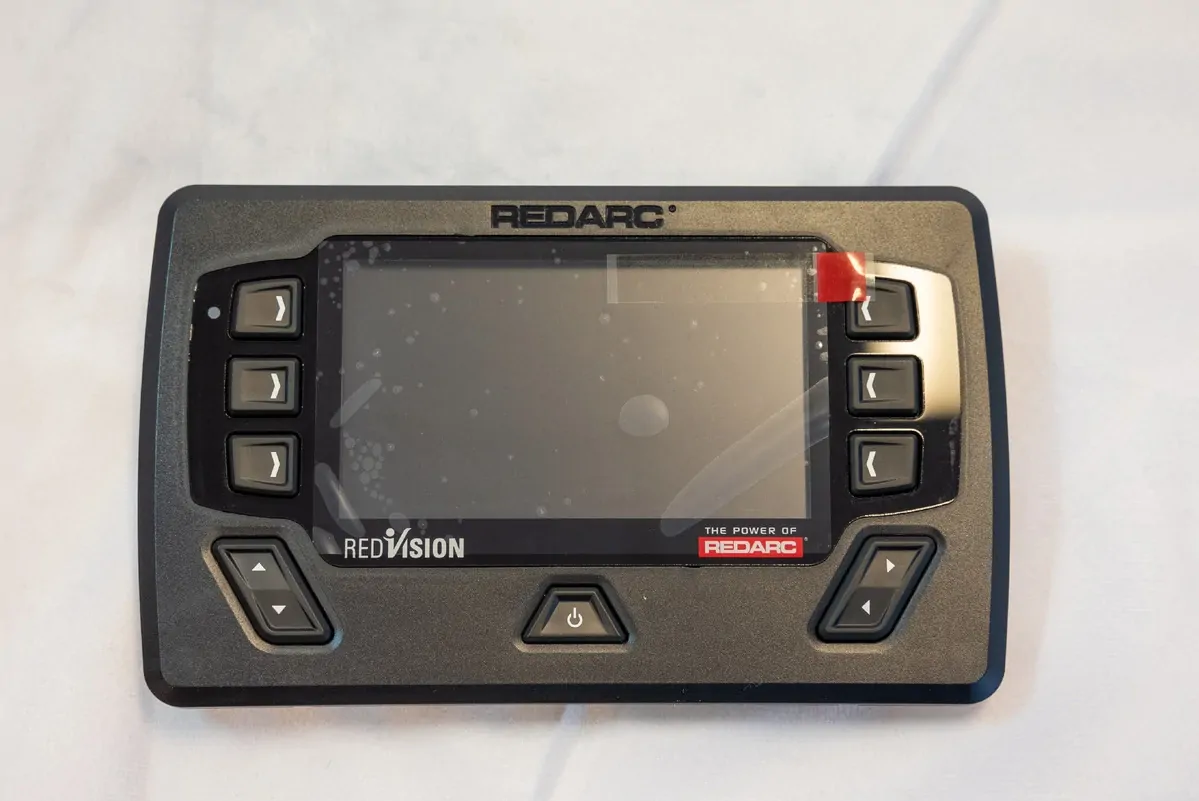

• RedVision In-vehicle Mounted Display Screen

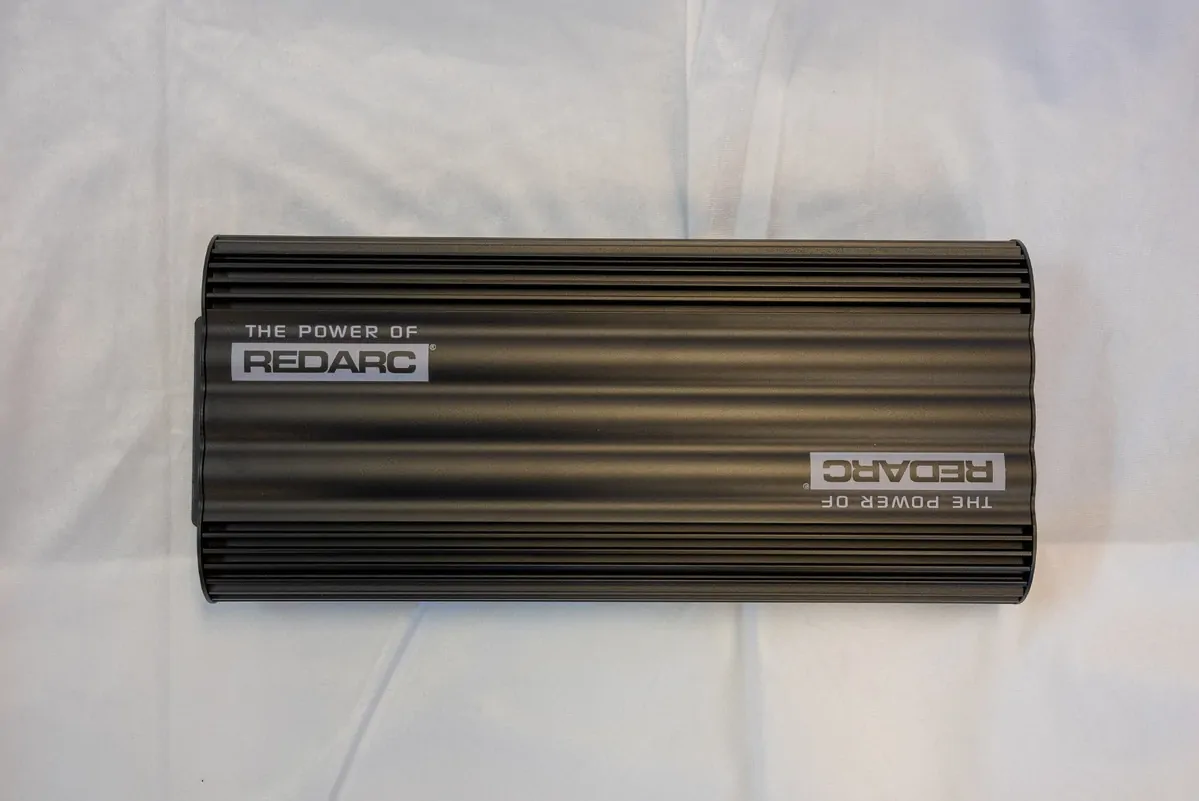

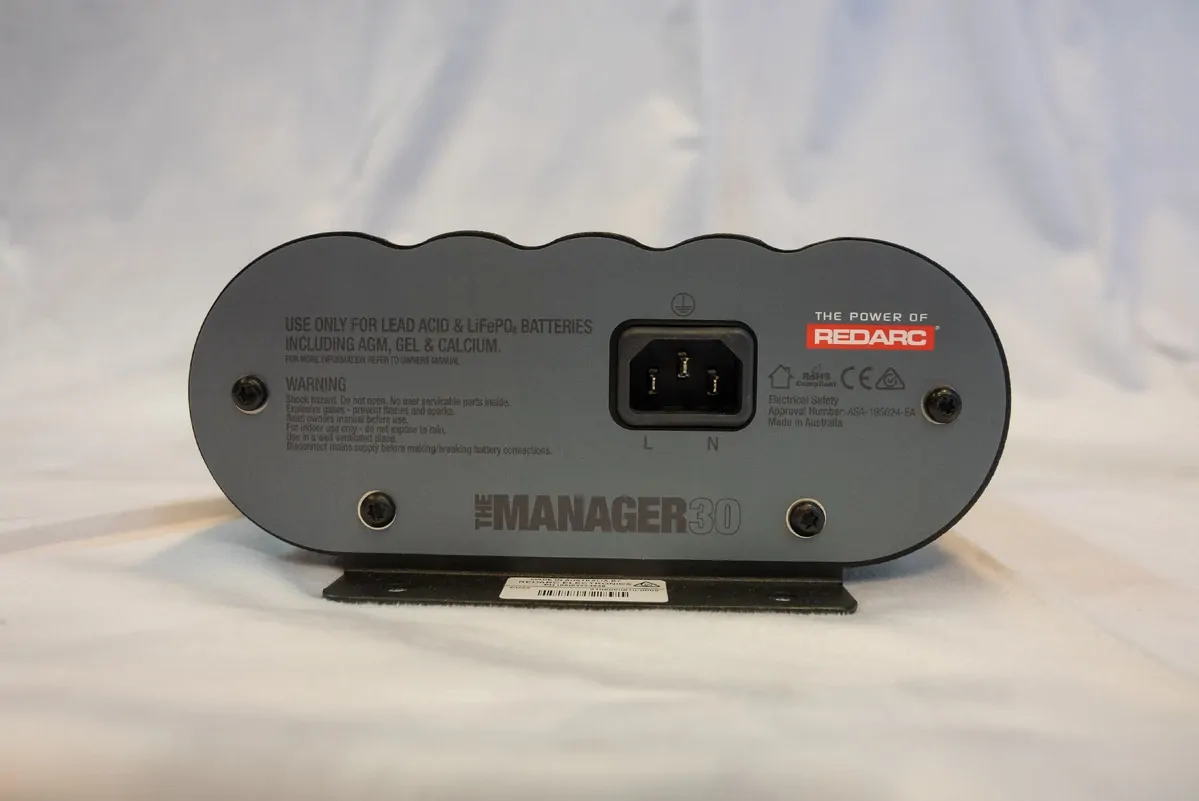

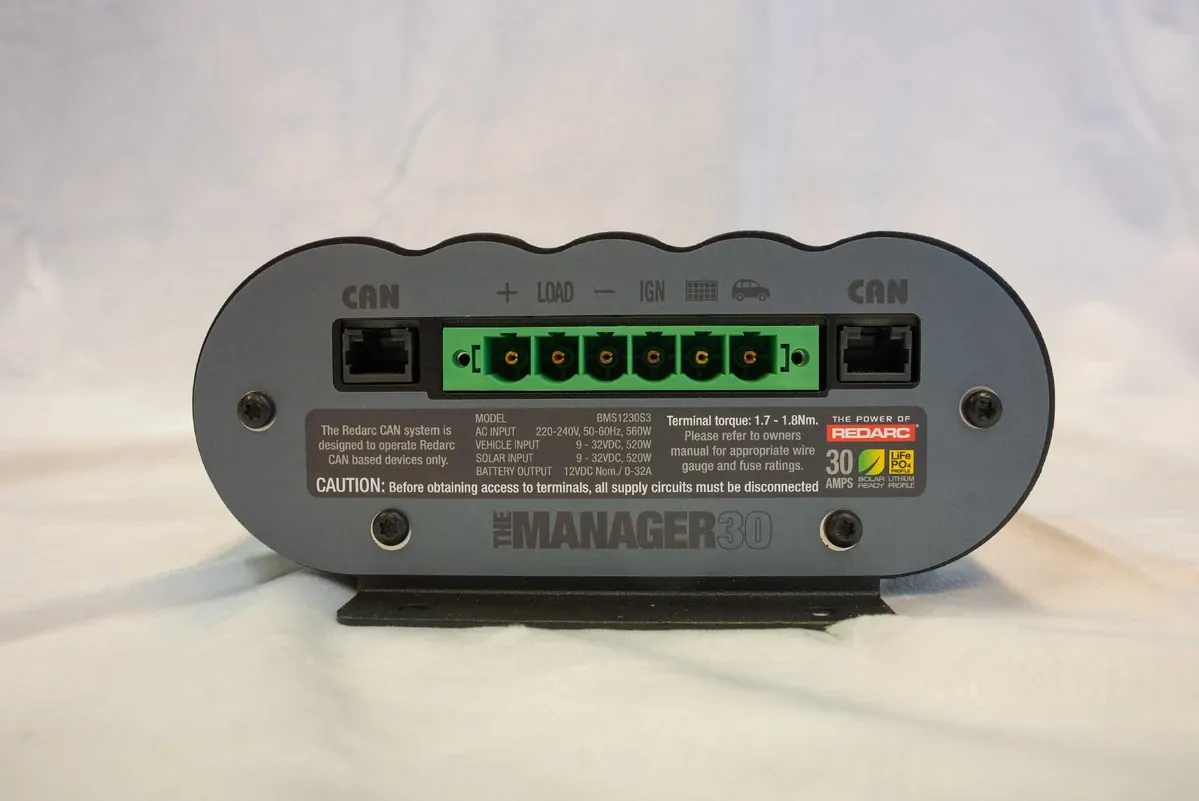

• Manager30 Battery Management System main unit

FAQ about the Redarc RedVision Manager30 Kit (TVMSKIT05)

What Devices Can the Redarc RedVision Manager30 Kit Control?

The Redarc RedVision Manager30 Kit is capable of controlling various on-board devices within your vehicle. These devices include lights, fans, fridges, inverters, and water pumps. It features 10 output channels, comprising 5 channels capable of handling up to 30 amps and 5 channels capable of handling up to 10 amps. This versatility allows for the management of a diverse array of low and high-powered devices.

What Automation Features Does It Offer?

The RedVision system offers several automation features designed to streamline operations and conserve energy. For instance, users can easily deactivate all systems except the fridge with a single button press. Additionally, the system can automatically power down non-essential loads when battery levels are low, thereby extending battery life and ensuring operational efficiency.

How Can I Configure My Manager30 with the RedVision App?

To configure your Redarc Manager30 with RedVision, you'll need to connect the two systems and utilize the RedVision app. Redarc provides a comprehensive guide available for download on their website, offering step-by-step instructions for configuring your Manager30 with the RedVision app. This ensures seamless integration and customization tailored to your specific requirements.
