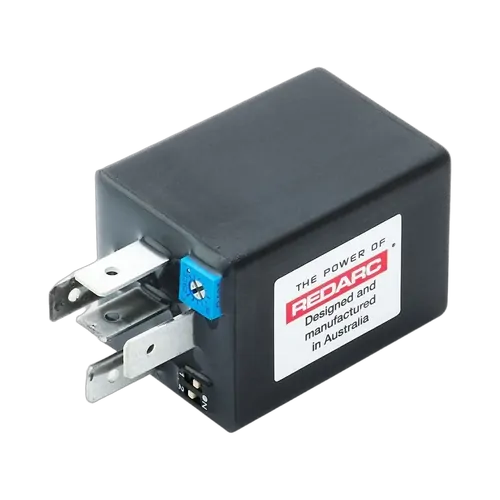

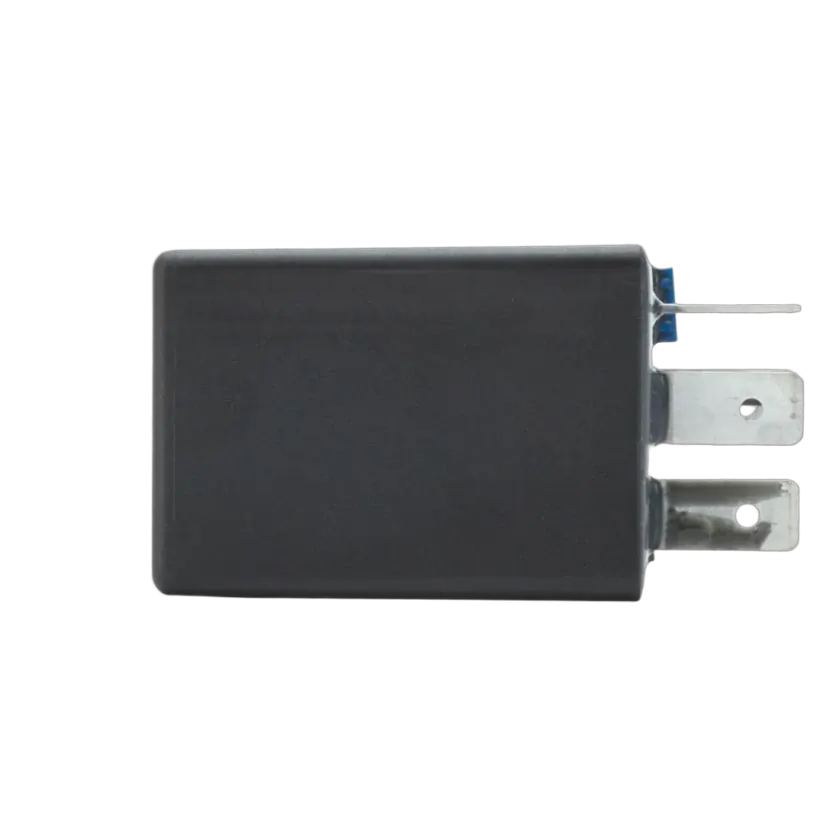

The REDARC Multi-Function Timer (TIM05) is a timer relay for 12V and 24V applications. Suitable for mobile and stationary installations, they feature customisable time and switching mode settings.

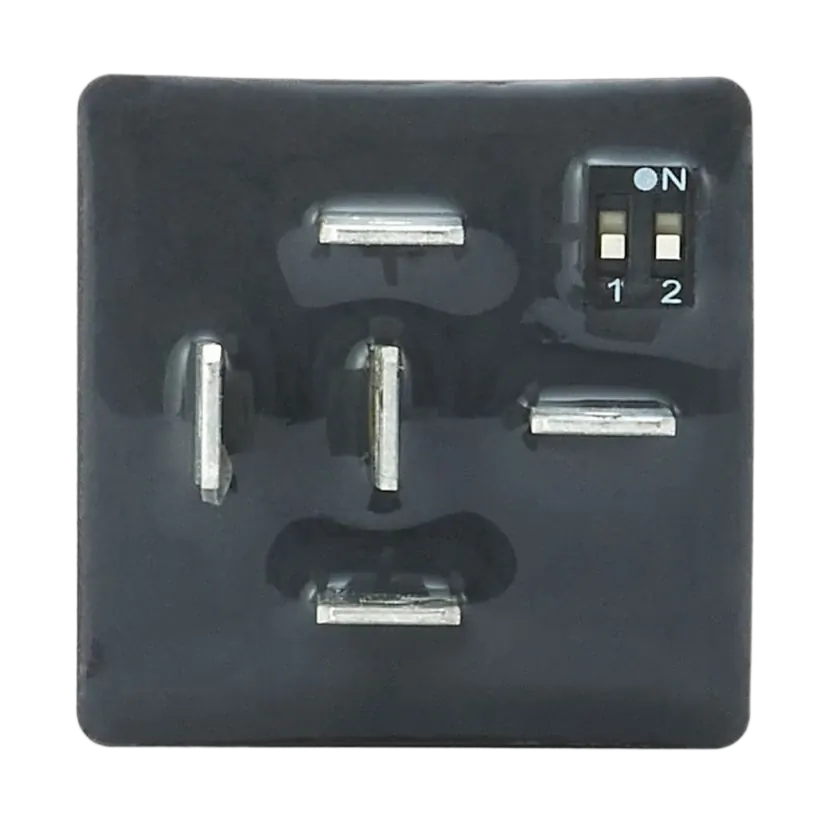

The TIM05 & TIM06 timers can be used in a 12V or 24V negative ground automotive system, are designed to plug into a standard automotive relay base and have the same pin numbers as a standard automotive relays (underside shown on diagram). Contacts operate in a similar way to a changeover relay.

  •  The timer switches the internal relay to provide output on PIN 87. (Positive output only)
  •  The timer is started by switching pin PIN 86 ON or OFF (depending on Switch 1).
  •  Use Switch 2 to select time range between SECONDS and MINUTES.
  •  Use the potentiometer to adjust time (increasing in clockwise direction).

The TIM05 & TIM06 can supply a maximum current of 10 AMPS.

FEATURES

  • User adjustable 1- 60 seconds/minutes
  • Change over type relay
  • Standard automotive relay base
  • Fully customisable upon request

SPECIFICATIONS

GTIN_BARCODE 9338628001682
BRAND REDARC
WEIGHT 70 g
HEIGHT 30 mm
WIDTH 24 mm
DEPTH | LENGTH 75 mm
WARRANTY 2 Years
INPUT VOLTAGE 12V / 24V
MAX. RATED OUTPUT CURRENT 10A
SKU TIM05
Barcode # 9338628001682.0
Brand Redarc
Shipping Weight 0.0700kg
Shipping Width 0.024m
Shipping Height 0.030m
Shipping Length 0.075m

Redarc Multi Function Timer

SKU: TIM05
Sale price
$199.00
PayPal Checkout
4 payments of $49.75

afterpay More info.

Make 4 payments of $49.75 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $49.75
