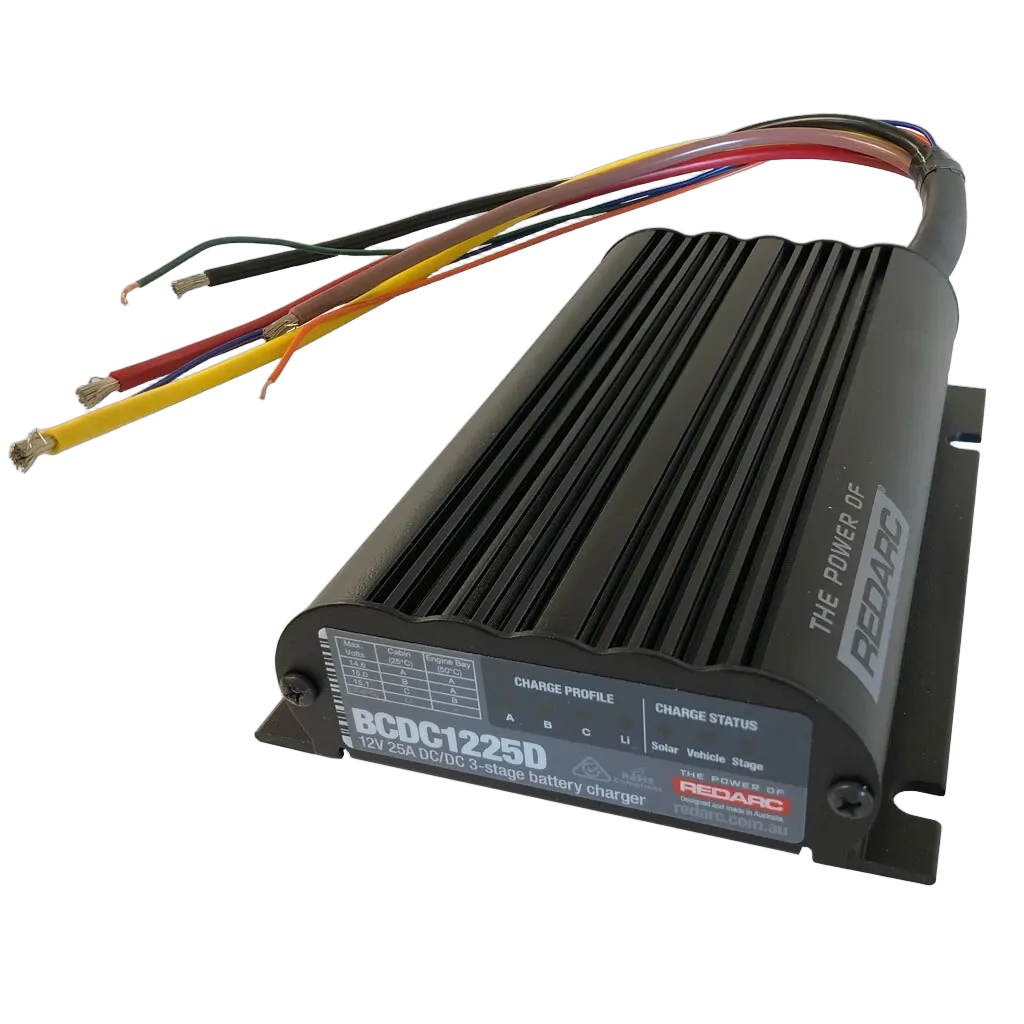

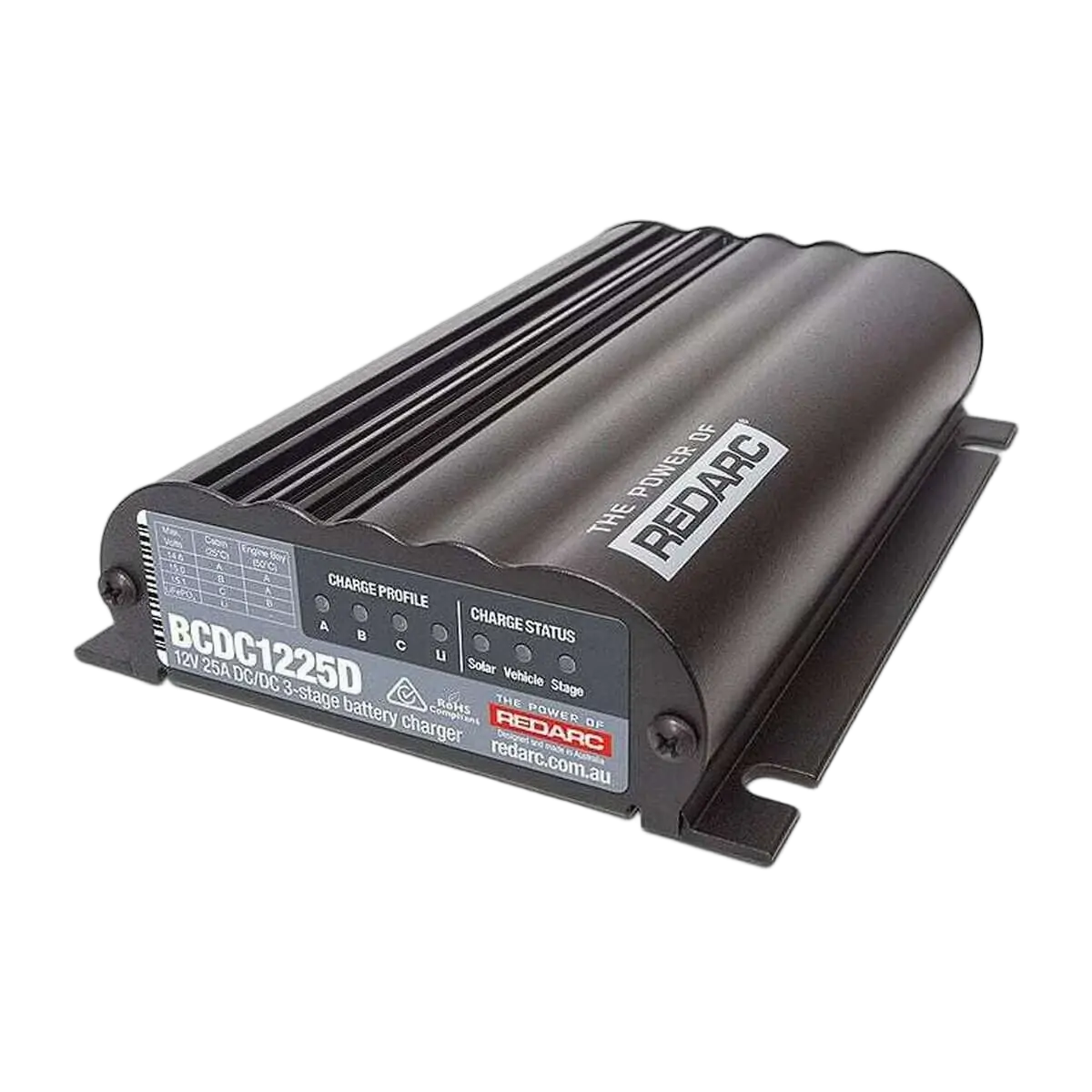

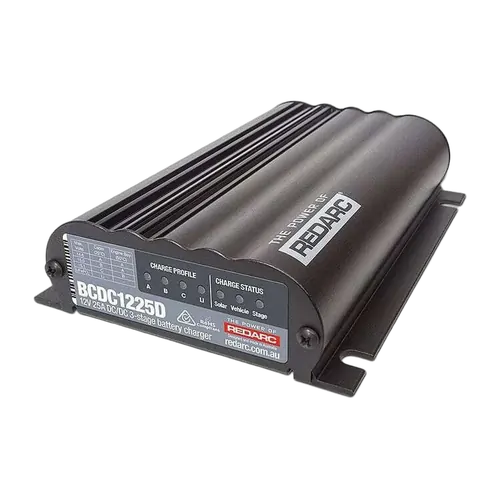

REDARC 12V DC-DC Battery Charger
This Redarc battery monitor and charger is used for charging your car batteries, as well as secondary batteries whilst travelling remotely. The Redarc battery management system has the most recent version of REDARC's in-vehicle charging technology, which simultaneously charges from solar and DC inputs. The Redarc 12v battery charger is one of the most advanced twin battery chargers on the market. This advanced technology has improved battery charging with the next evolution of REDARC's DC to DC charging technology. The REDARC battery charger can charge from both the solar panel and the alternator at the same time since it has a Maximum Power Point Tracking (MPPT) solar regulator. Not to mention it comes with a very easy DIY 12v battery wiring guide so all the home sparkys out there can give it a red hot crack. If you’re not sure, no harm in taking your set up into an auto electrician, better safe than stuck.
This Redarc 25AH 12v battery charger, which has a Maximum Power Point Tracking (MPPT) solar regulator, will charge from the sun and the alternator concurrently. Additionally, the Redarc battery charger/monitor will choose solar charging first thanks to built-in "Green Power Priority," which reduces the burden on the alternator. The device is appropriate for 12 volt 4WD/caravan & camper electrical systems and is compatible with both normal and variable/smart alternators. The REDARC 12v battery charger is compatible with charging AGM, Gel, Standard Lead Acid, Calcium, and LiFePO4 batteries since it has the same unique charging profiles as its predecessor and a new lithium charging profile. The Redarc BCDC 12v battery charger is award-winning technology that has been independently validated and tested to guarantee maximum battery life and a battery charge of a known 100 percent. The Australian-made, specially-tested DC to DC 12v battery charger and battery management system is unaffected by water, dust, or vibration. It can operate in the scorching Simpson Desert heat up to 80°C and can cross deep water at Cape York as it is water resistant.
*Mounting brackets sold seperately.
Features:
- Separate DC and solar charging inputs
- Maximises the performance and life of your auxiliary battery
- Simultaneous DC and solar charging with Green Power Priority
- Suits 12V standard and variable voltage/smart alternators
- Suitable for AGM, GEL, standard lead acid, calcium and LiFePO4 batteries
- Input (Operating) Voltage 9 - 32VDC
- Output System Voltage 12VDC
- Maximum Charging Voltage 15.3V
- Output Current Rating (Cont.) 25A
- Input Current (Max.) 25A
- Input Fuse Rating 40A
- Output Fuse Rating 40A
- Warranty 2 Years
- Standby Current Draw <100mA
- Output Power 375W
- Width (mm) 120
- Height (mm) 37
- Type Approval CE
- Length (mm) 165
- Weight (kg) 0.85

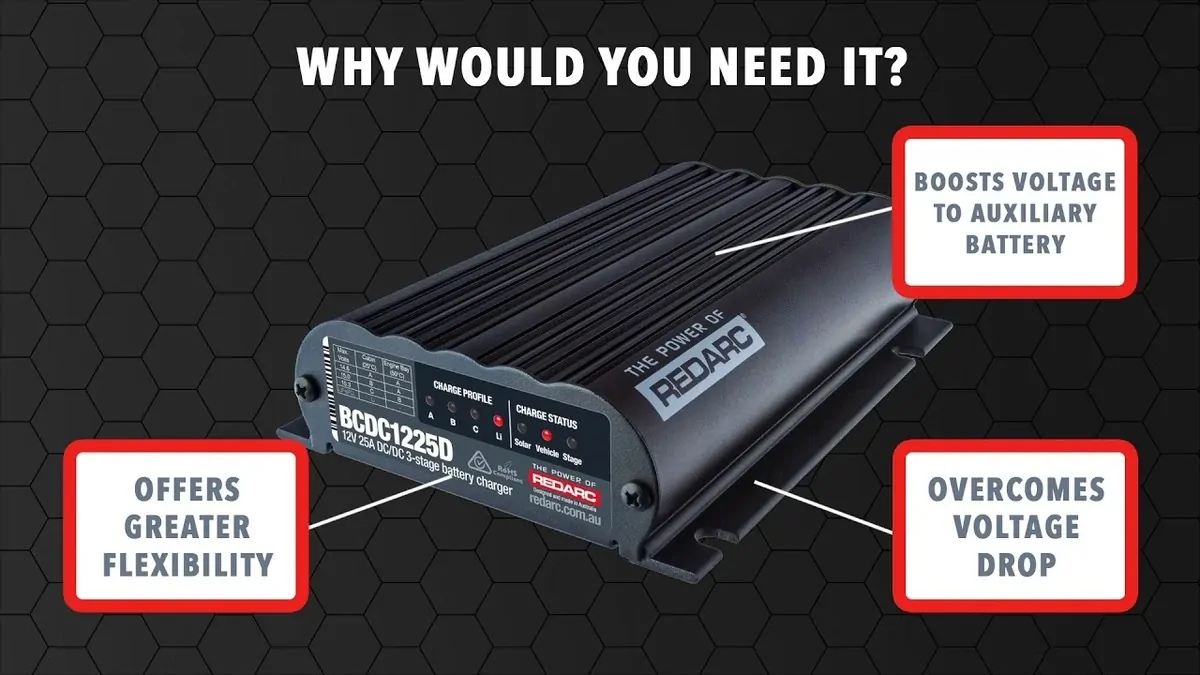

How does a REDARC DC to DC charger work?
A REDARC DC to DC charger optimises the charging of auxiliary batteries by drawing power from both the vehicle's alternator and solar panels simultaneously, using MPPT solar regulation and Green Power Priority to maximize efficiency
Do DC to DC chargers drain the main battery?
No, DC to DC chargers like the REDARC BCDC1225D do not drain the main battery. They include a built-in battery isolator to prevent drawing power when the vehicle is off
Can redarc BCDC1225D charge lithium?
Yes, the REDARC BCDC1225D can charge lithium (LiFePO4) batteries, along with AGM, Gel, Standard Lead Acid, and Calcium batteries.
Do I need a 25A or 40A DC-DC charger?
The choice between a 25A or 40A DC-DC charger depends on your battery bank size and charging needs. For battery banks up to 200AH, a 25A charger is suitable. For larger capacities, consider a 40A charger
| SKU | BCDC1225D |
|---|---|
| Barcode # | 9338628004348 |
| Brand | Redarc |
| Shipping Weight | 3.0000kg |
