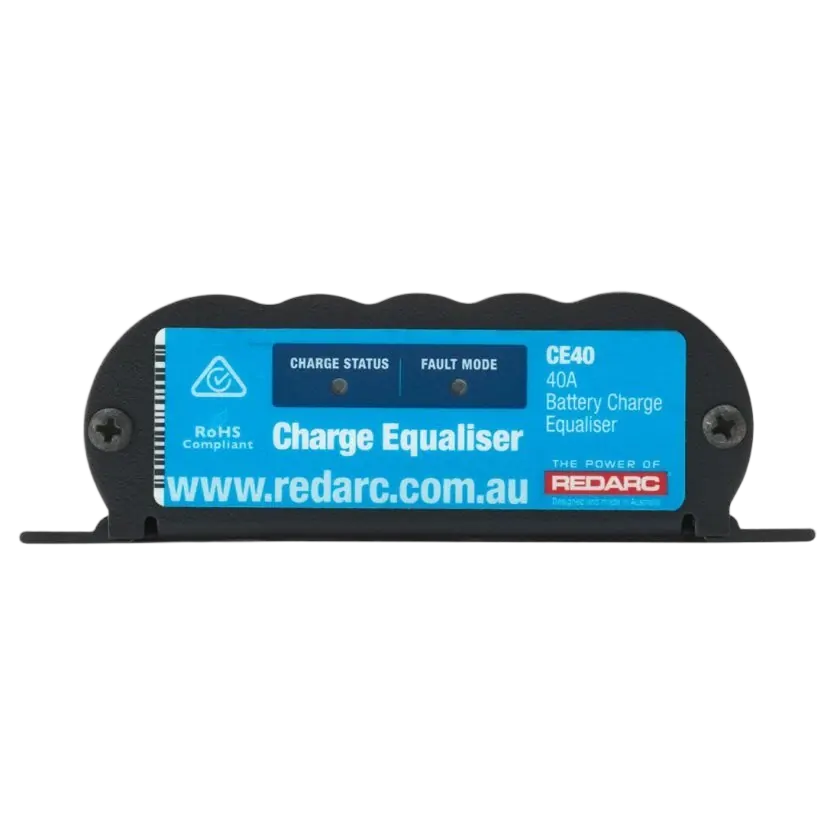

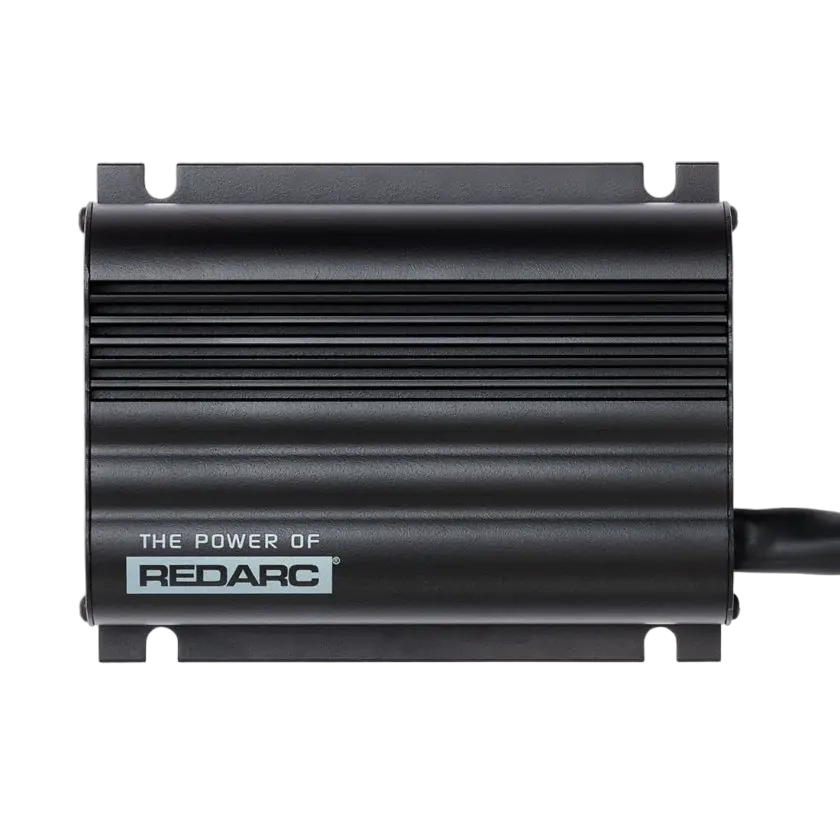

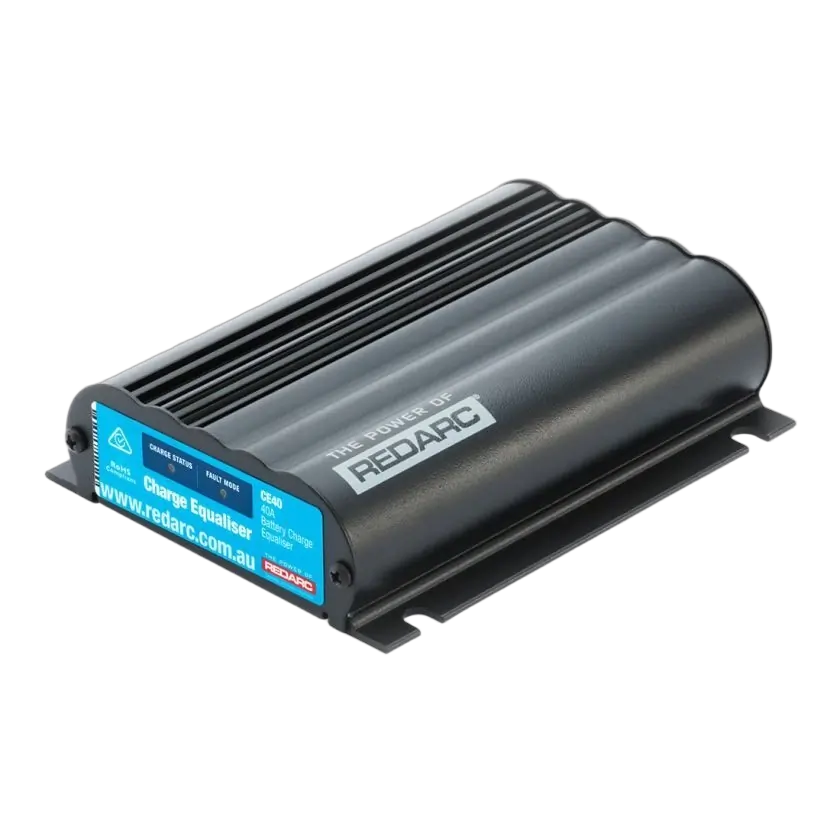

The REDARC 40A Charge Equaliser allows 12V to be 'tapped' from the centre of a two battery, 24V DC electrical system while still ensuring an equal charge across the two batteries.
The REDARC 40A Charge Equaliser allows 12 volts to be ‘tapped’ from the centre of a series-connected, two battery, 24 volt DC electrical system while still ensuring an equal charge across the two batteries.
This is particularly useful when space or cost prohibits the installation of a separate 12 volt battery.
REDARC have incorporated technology from the award-winning BCDC range into the new style CE40S2. The CE40S2 has a maximum 40A output and offers improved functionality, reduced installation complexity and features input isolation, negating the need for an input relay or isolator.
The REDARC Charge Equaliser has a high peak current capability and fast transient response suited for loads requiring a safe, clean and stable 12 volt supply.
It has the advantage of drawing power from a battery rather than through a current limited device, like a voltage reducer. This allows for a much larger peak current draw.
BENEFITS
- Designed to keep your 24 volt batteries equally charged
- Reduce down time and running costs by extending battery life
- Peak load currents are limited only by the battery
- Designed for Australia's Harsh Conditions
FEATURES
- Based on the award winning BCDC Platform
- High peak current capability
- Fast transient response
- Sealed and suited for commercial applications
SPECIFICATIONS
GTIN_BARCODE | 9338628003303 |
---|---|
BRAND | REDARC |
CONTINUOUS RATING | 40A |
NO LOAD CURRENT | <100mA |
STANDBY CURRENT | <10mA |
OPERATING TEMPERATURE | -20°C to 80°C |
WEIGHT | 680 g |
HEIGHT | 37 mm |
WIDTH | 120 mm |
DEPTH | LENGTH | 150 mm |
WARRANTY | 2 Years |
INPUT VOLTAGE | 20 - 32V |
OUTPUT VOLTAGE | 6 - 16V |
MAX. RATED OUTPUT CURRENT | 40A |
INPUT FUSE RATING | 50A (Not supplied) |
OUTPUT FUSE RATING | 50A (Not supplied) |
SKU | CE40S2 |
---|---|
Barcode # | 9338628003303.0 |
Brand | Redarc |
Shipping Weight | 0.6800kg |
Shipping Width | 0.120m |
Shipping Height | 0.037m |
Shipping Length | 0.150m |
