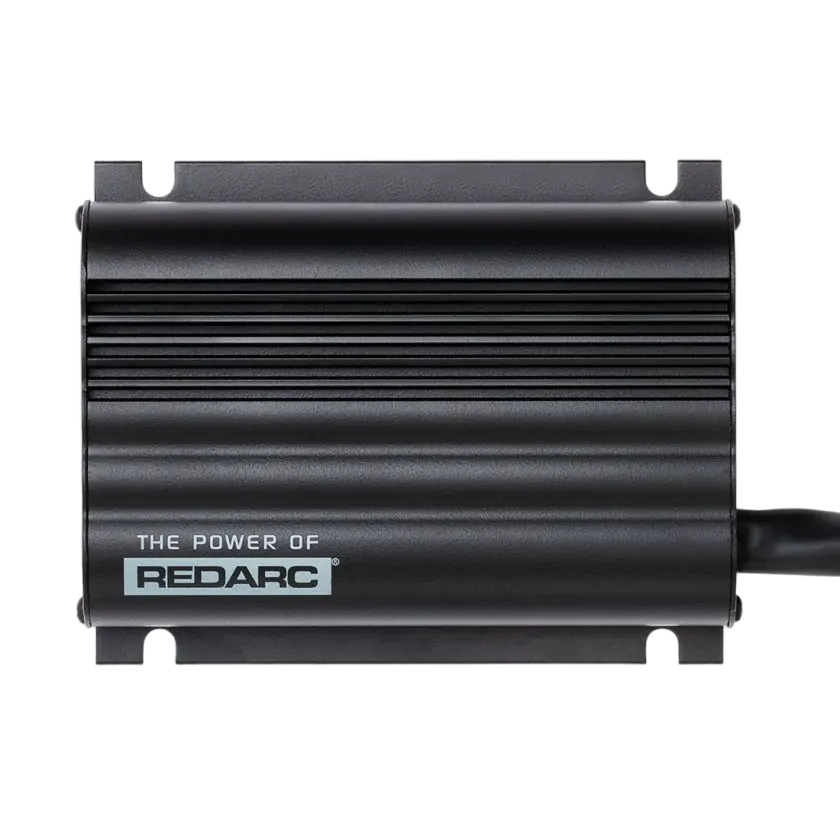

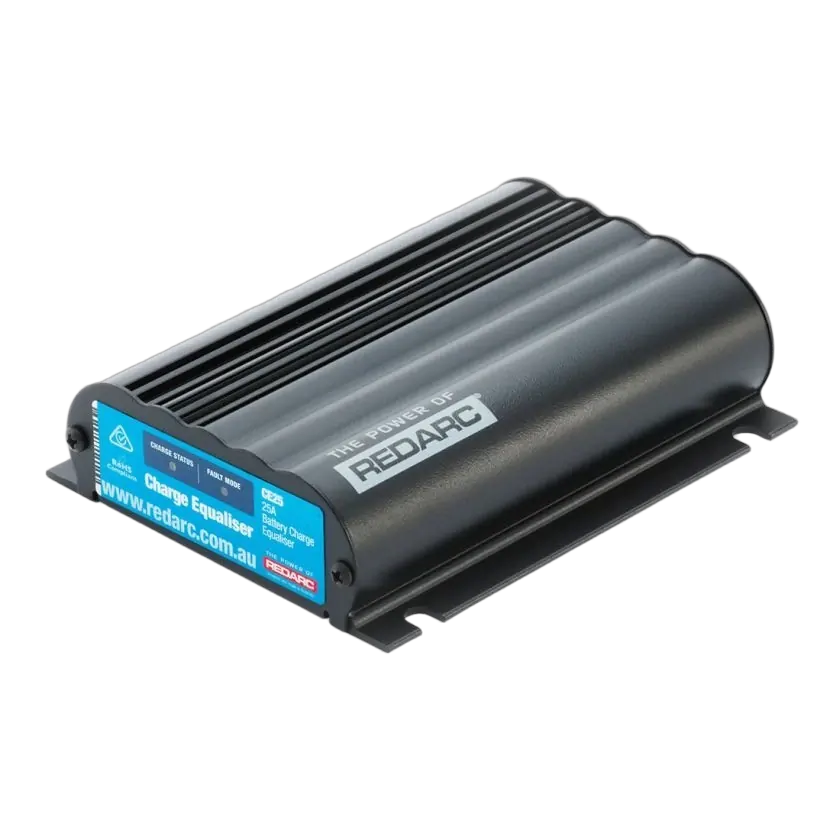

The REDARC 25A Charge Equalizer (CE25S2) is designed to manage a high current, 12 volt supply in a 24 volt vehicle.

The REDARC 25A Charge Equaliser allows 12 volts to be ‘tapped’ from the centre of a series-connected, two battery, 24 volt DC electrical system while still ensuring an equal charge across the two batteries.

This is particularly useful when space or cost prohibits the installation of a separate 12 volt battery.

REDARC have incorporated technology from the award-winning BCDC range into the new style CE25. The CE25 has a maximum 25A output and offers improved functionality, reduced installation complexity and features input isolation, negating the need for an input relay or isolator.

The REDARC Charge Equaliser has a high peak current capability and fast transient response suited for loads requiring a safe, clean and stable 12 volt supply.

It has the advantage of drawing power from a battery rather than through a current limited device, like a voltage reducer. This allows for a much larger peak current draw.

BENEFITS

  • Designed to keep your 24 volt batteries equally charged
  • Reduce down time and running costs by extending battery life
  • Peak load currents are limited only by the battery
  • Designed for Australia's Harsh Conditions

FEATURE

  • Based on the award winning BCDC Platform
  • High peak current capability
  • Fast transient response
  • Sealed and suited for commercial applications

SPECIFICATIONS

GTIN_BARCODE 9338628003242
BRAND REDARC
NO LOAD CURRENT <100mA
STANDBY CURRENT <10mA
OPERATING TEMPERATURE -20°C to 80°C
WEIGHT 680 g
HEIGHT 37 mm
WIDTH 120 mm
DEPTH | LENGTH 150 mm
WARRANTY 2 Years
INPUT VOLTAGE 20 - 32V
OUTPUT VOLTAGE 6 - 16V
MAX. RATED OUTPUT CURRENT 25A
INPUT FUSE RATING 40A (Not supplied) REDARC FK40 recommended
OUTPUT FUSE RATING 40A (Not supplied) REDARC FK40 recommended
SKU CE25
Barcode # 9338628003242.0
Brand Redarc
Shipping Weight 0.6800kg
Shipping Width 0.120m
Shipping Height 0.037m
Shipping Length 0.150m

Redarc 25A Charge Equalizer

SKU: CE25
Sale price
$749.00
PayPal Checkout
4 payments of $187.25

afterpay More info.

Make 4 payments of $187.25 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $187.25

Calculate Shipping
