Three-stage, 24V DC-DC battery charger designed to charge Lithium Iron Phosphate (LiFePO4) batteries to their optimal level, regardless of size.

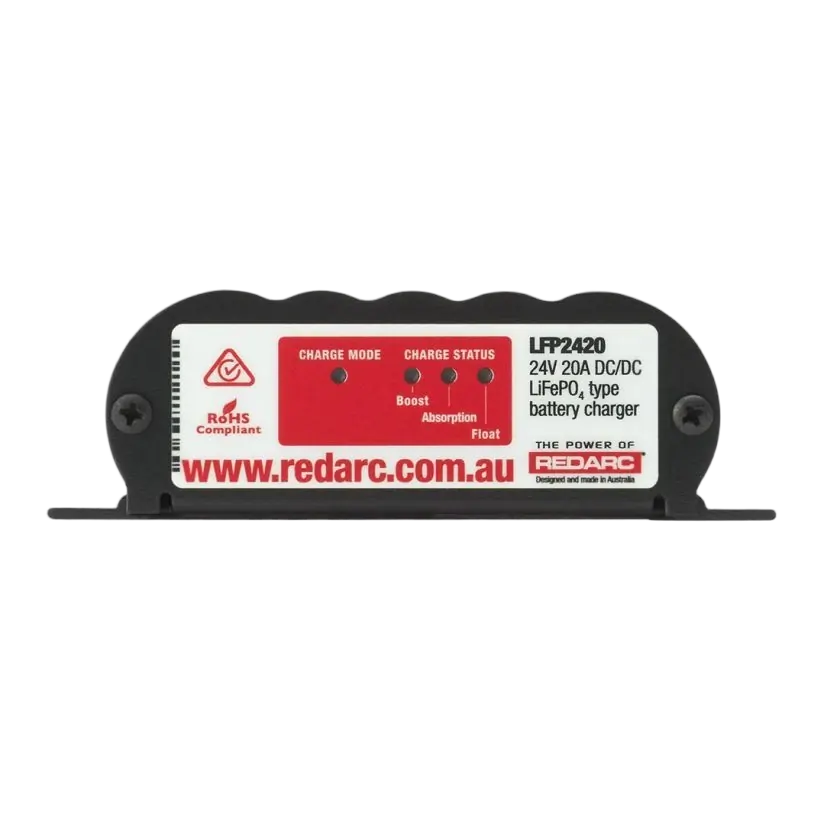

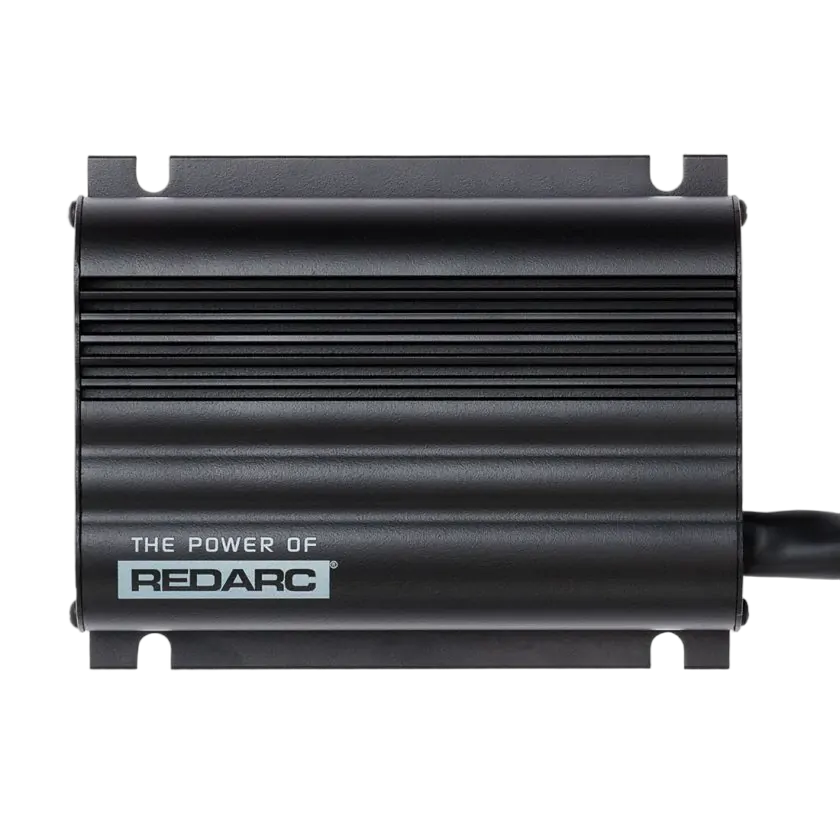

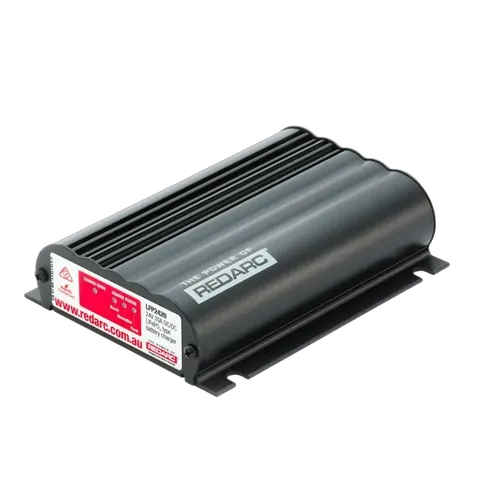

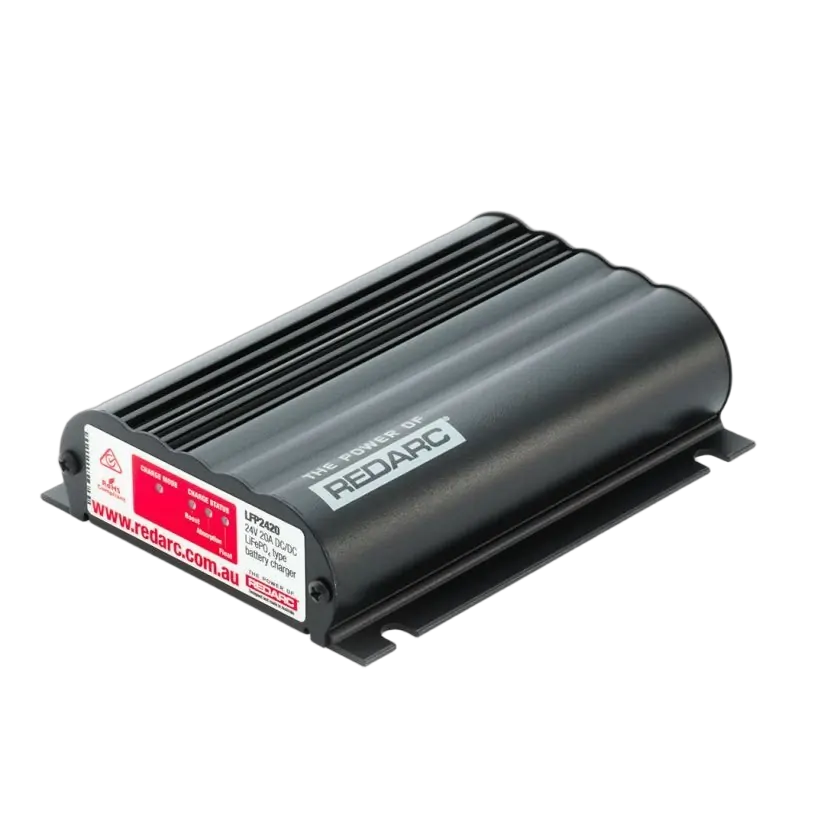

The REDARC LFP2420 In-vehicle battery charger is a 24 Volt 20 Amp, three stage DC DC charger that operates from a vehicle input between 9 and 32 Volts DC. It is designed to charge Lithium Iron Phosphate (LiFeP04) batteries to their optimal level with chemistry specific battery charging algorithms.
The LFP2420 features a three stage charging algorithm, with a 24V charging output the DC to DC charger is perfectly suited to trucking applications such as charging battery banks for tailgate lifters and side curtains.
The LFP2420 features a MPPT Solar Regulator, which means 12V solar panels can be used to charge your 24V auxiliary batteries. The MPPT Solar charging algorithm extracts the maximum available power from your solar panels at any given time.
FEATURES
- Three Stage DC to DC Battery Charger
- MPPT Solar Regulator
- Start Battery Isolator
- Fully sealed
- No fan for super quiet operation
- Charges Lithium Iron Phosphate (LiFeP04) batteries
To find out the best dual battery setup for your needs use the free REDARC Dual Battery Selector here.
SPECIFICATIONS
GTIN_BARCODE | 9338628004638 |
---|---|
BRAND | REDARC |
BATTERY CHEMISTRY | Lithium |
CONTINUOUS RATING | 20A |
POWER TYPE - AC DC | DC TO DC |
SOLAR INPUT VOLTAGE | 9 - 32V |
OPERATING TEMPERATURE | -10°C to 80°C |
WEIGHT | 28 oz (650 g) |
HEIGHT | 1.5" (37 mm) |
WIDTH | 4.7" (120 mm) |
DEPTH | LENGTH | 5.9" (150 mm) |
WARRANTY | 2 Years |
INPUT VOLTAGE | 9 - 32V |
OUTPUT VOLTAGE | 24V DC |
MAX. RATED OUTPUT CURRENT | 20A |
INPUT FUSE RATING | 60A/40A |
OUTPUT FUSE RATING | 30A (Not supplied) |
SKU | LFP2420 |
---|---|
Barcode # | OEBC661999 |
Brand | Redarc |
Shipping Weight | 0.6500kg |
Shipping Width | 0.120m |
Shipping Height | 0.037m |
Shipping Length | 0.150m |
