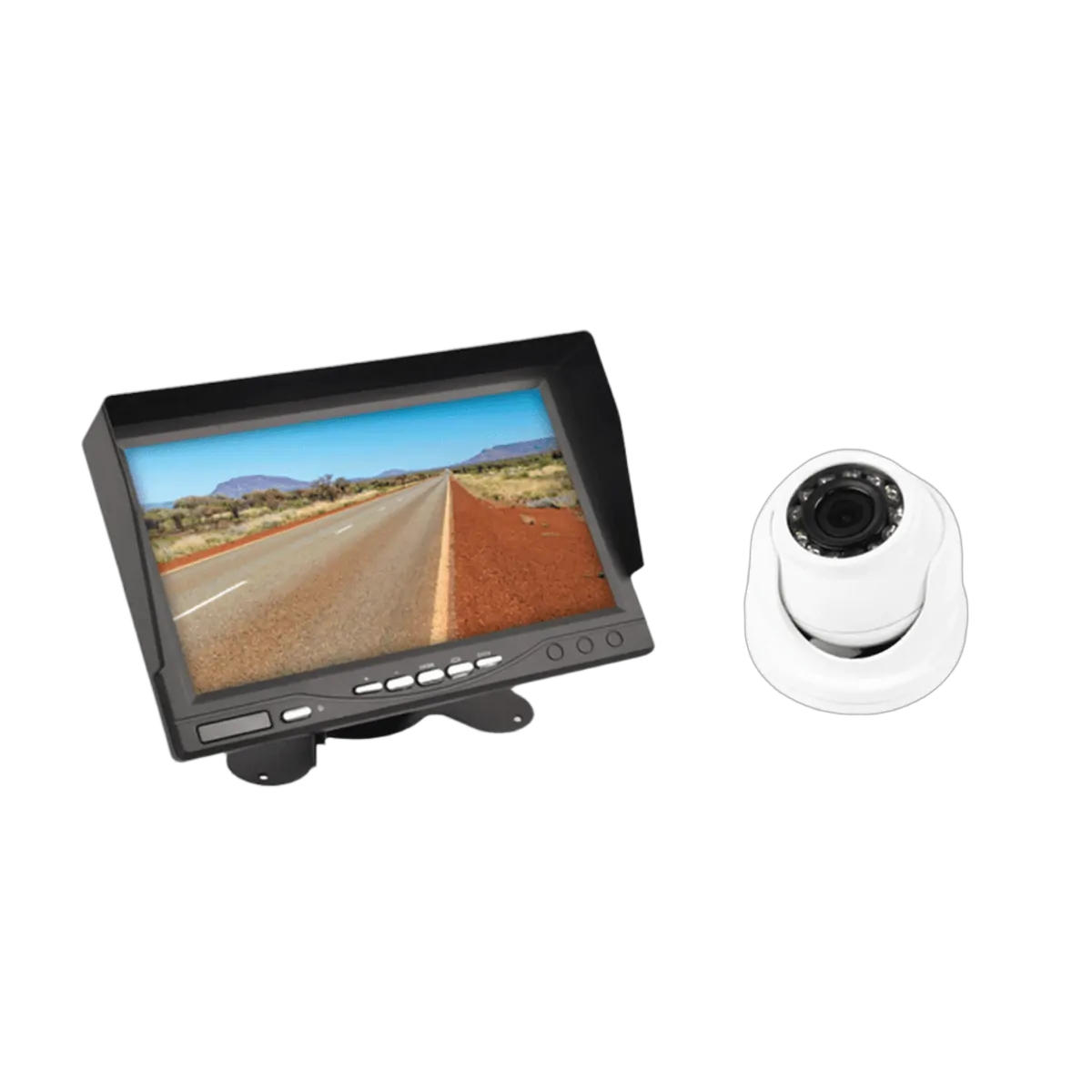

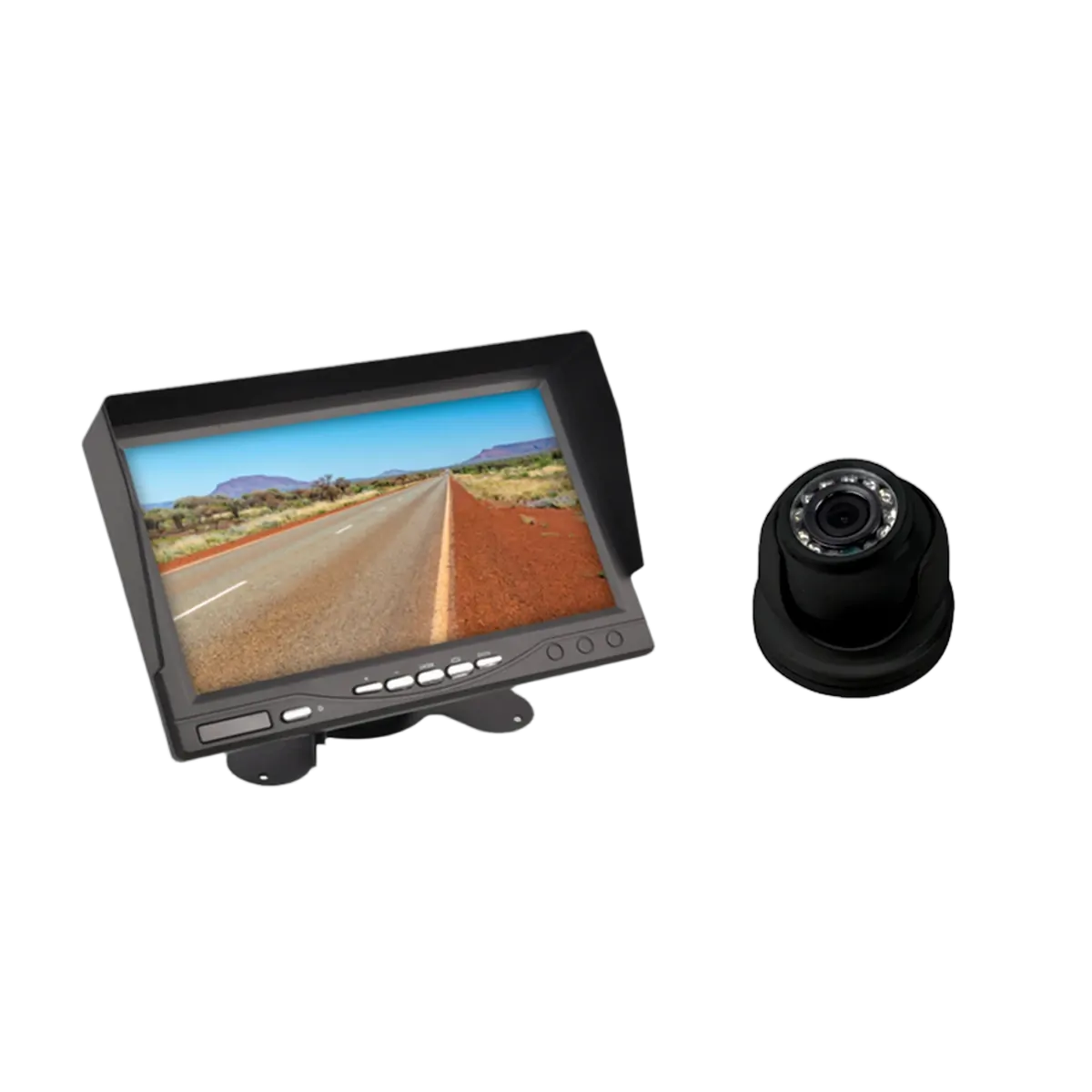

The Aussie Traveller Rear View Camera Kit as a must for your vehicle, so that you can get a clear picture what's behind you. The round eyeball style camera produces wide angle, high quality imagery for you to view on the 7 inch high resolution display monitor. This kit has all that is required for easy installation and mounting. It is exactly what you need for keeping a close eye on your 4x4, Caravan, RV, Camper Trailer or Motorhome.
- Waterproof IP67 rating
- 12V powered camera & LCD display monitor
- 5m coiled cable for connection between the tow vehicle and the towed vehicle
- Easy to install - Screen can be mounted onto front windscreen or dashboard via the supplied suction mount
- Camera features extremely low current draw yet delivers excellent resolution
- Uses standard 50Hz frequency with 120degree lens angle
- Cables also allow for RV installation such as Campers and Motorhomes

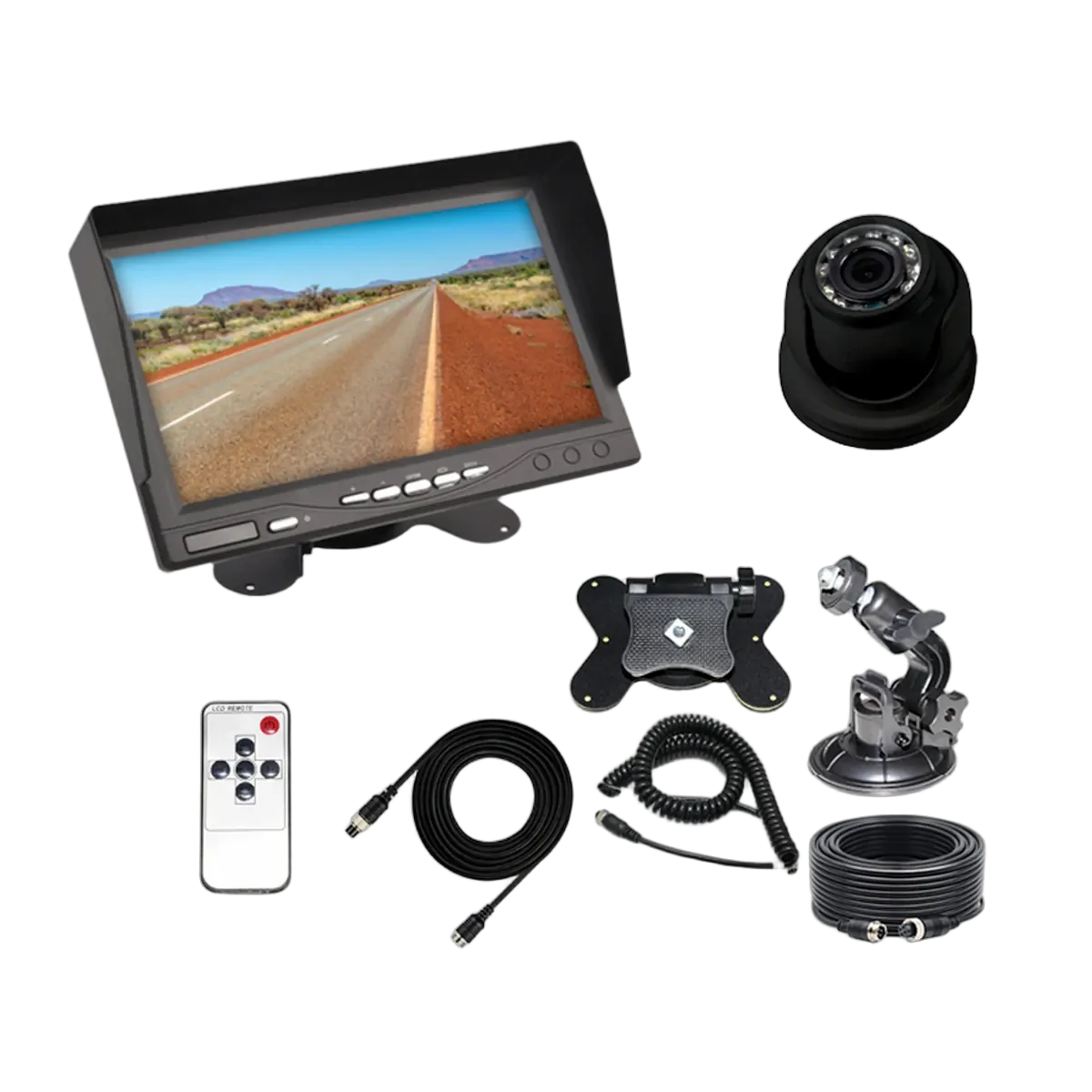

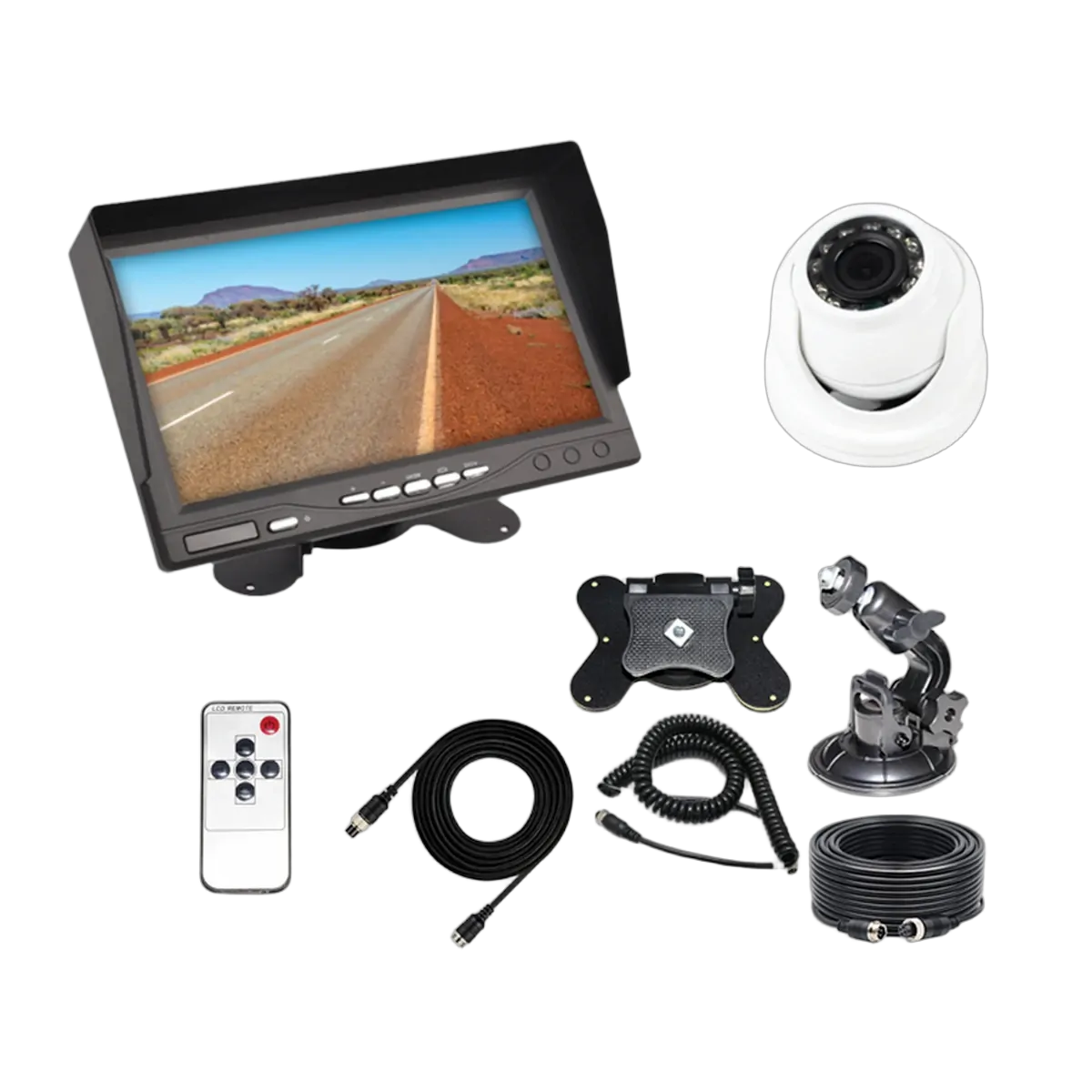

- 7” TFT LCD Monitor
- Window mount and fixed mount monitor brackets
- Remote control
- 15m tow vehicle cable
- 5m towed vehicle cable
- 5m coiled cable
- Installation manual
TFT LCD Monitor:
- Screen dimensions: 7 inch
- Resolution: 800 x 480 RGB
- System: PAL & NTSC auto switch
- Power: DC 12V
- Consumption: 3W
- Video: Two way video input
- Rear View: Image can be changed Left & Right
- Operate Mode: Key button & Remote control
- Size: 180 x 120 x 50 (mm)
Camera:
- System: PAL/NTSC
- Effective Pixels: 648 x 488 pixels
- Sensing Area: 5.55um x 5.55um
- Scanning System: 2:1 interlace
- Sync System: Internal
- Resolution: 420 TV lines
- Horizontal Sync,Frequency: 15.625KHz / 15.73KHz
- Vertical Sync,Frequency: 50Hz / 60Hz
- Minimum illumination: 1.5lux/F1.2
- Video Output: 1.0VP-P.75Ohm
- Gamma Consumption: 0.45
- AGC: Auto
- S/N ratio: Better than 48Db
- White Balance: Auto
- Electronic Shutter: 1/60-1/15,000 Seconds
- BLC: Auto
- Current Consumption: 80Ma
- Power Supply: DC 12V
- Operating Temperature: -10°C~46°C RH95% MAX
- Storage Temperature: -30°C~60°C RH95% MAX
- Lens: 1.8mm F=2.0
- Lens Angle: 120°
- Waterproof Grade: IP67
| SKU | 05100070001020 |
|---|---|
| Barcode # | 9358048002045 |
| Brand | Aussie Traveller |
| Shipping Weight | 3.0000kg |

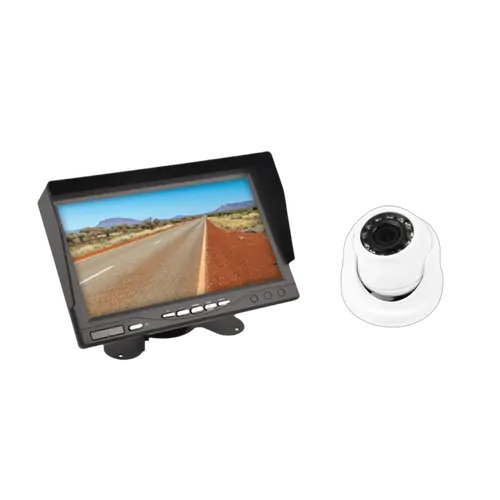

Rear View Round Camera Kit White - Single Aussie Traveller
