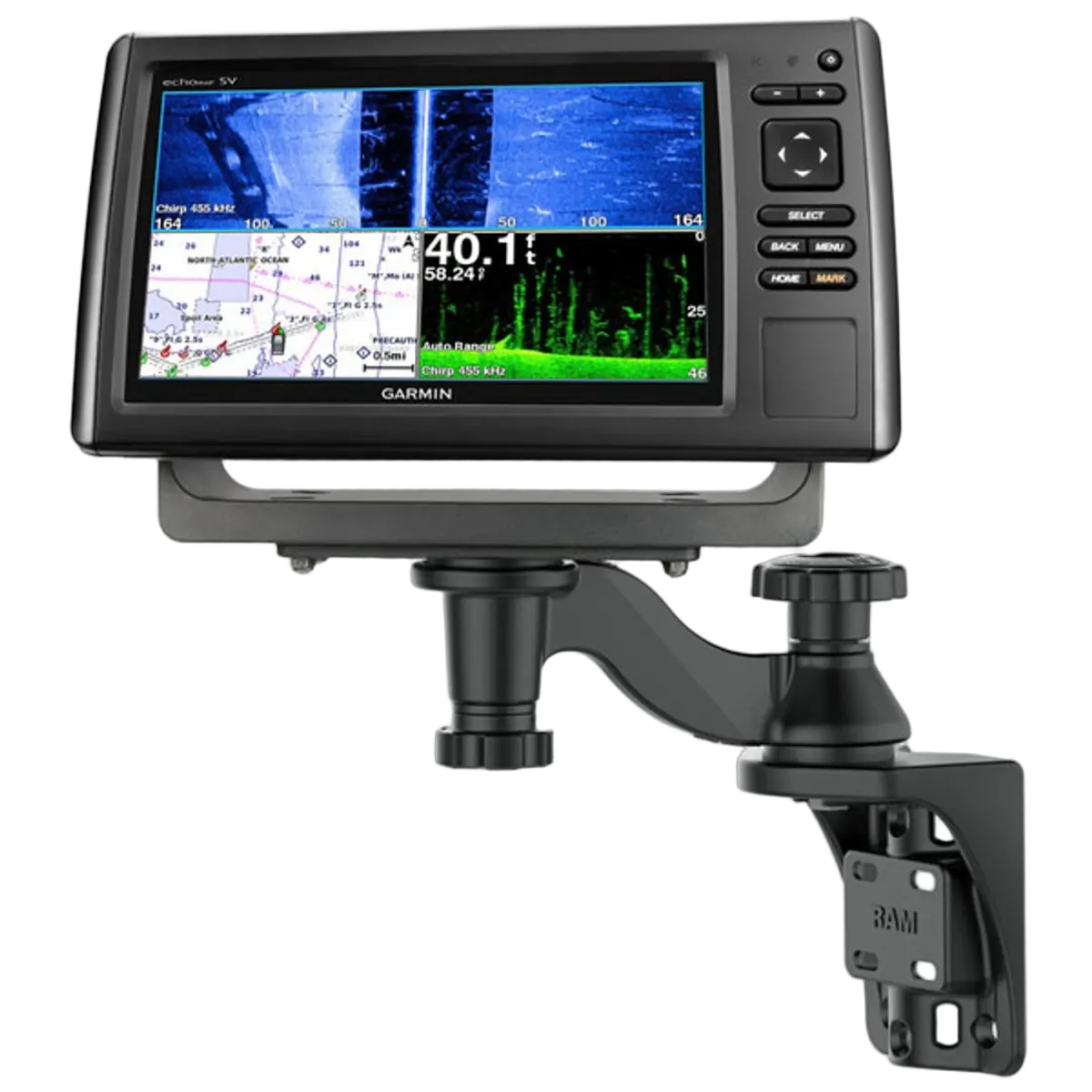

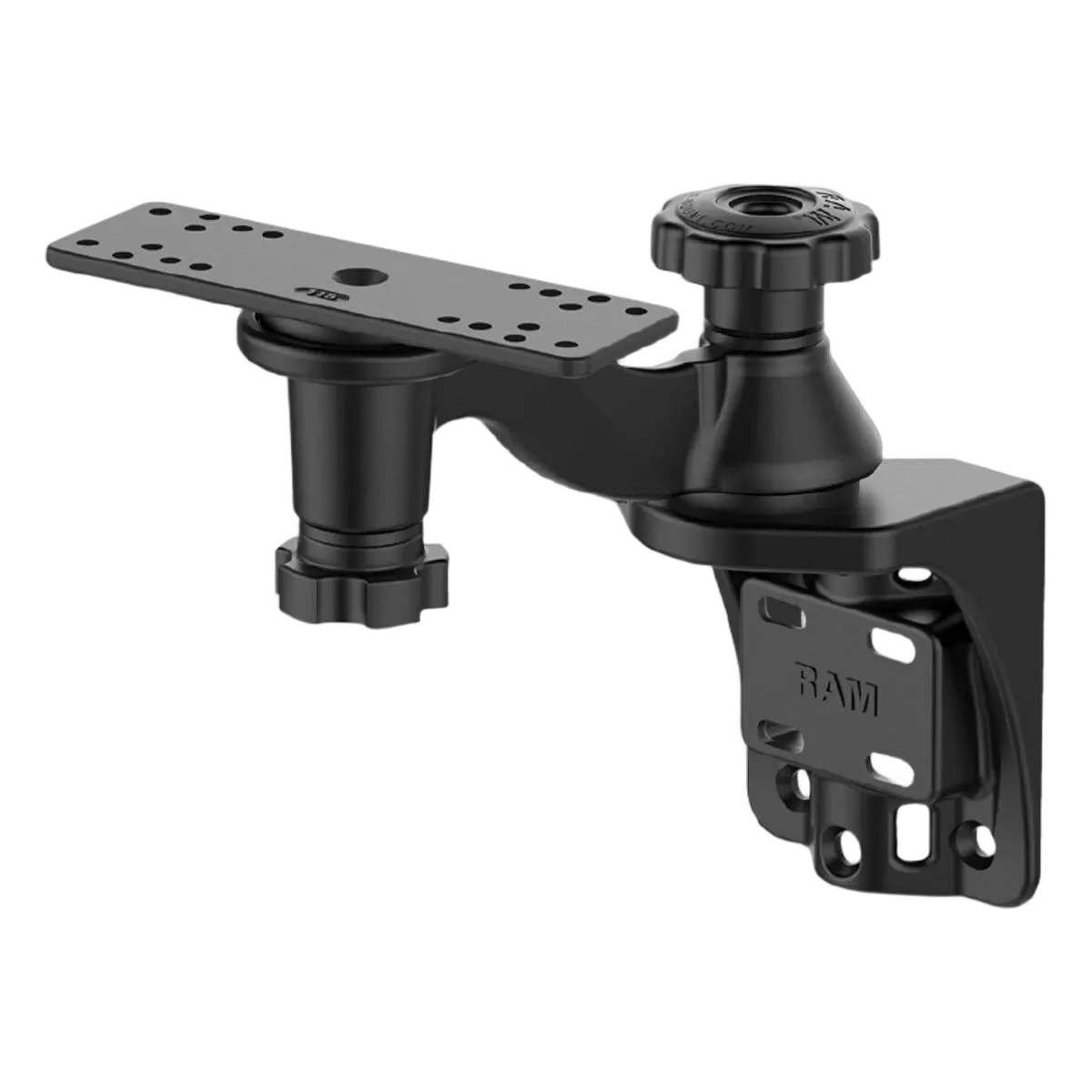

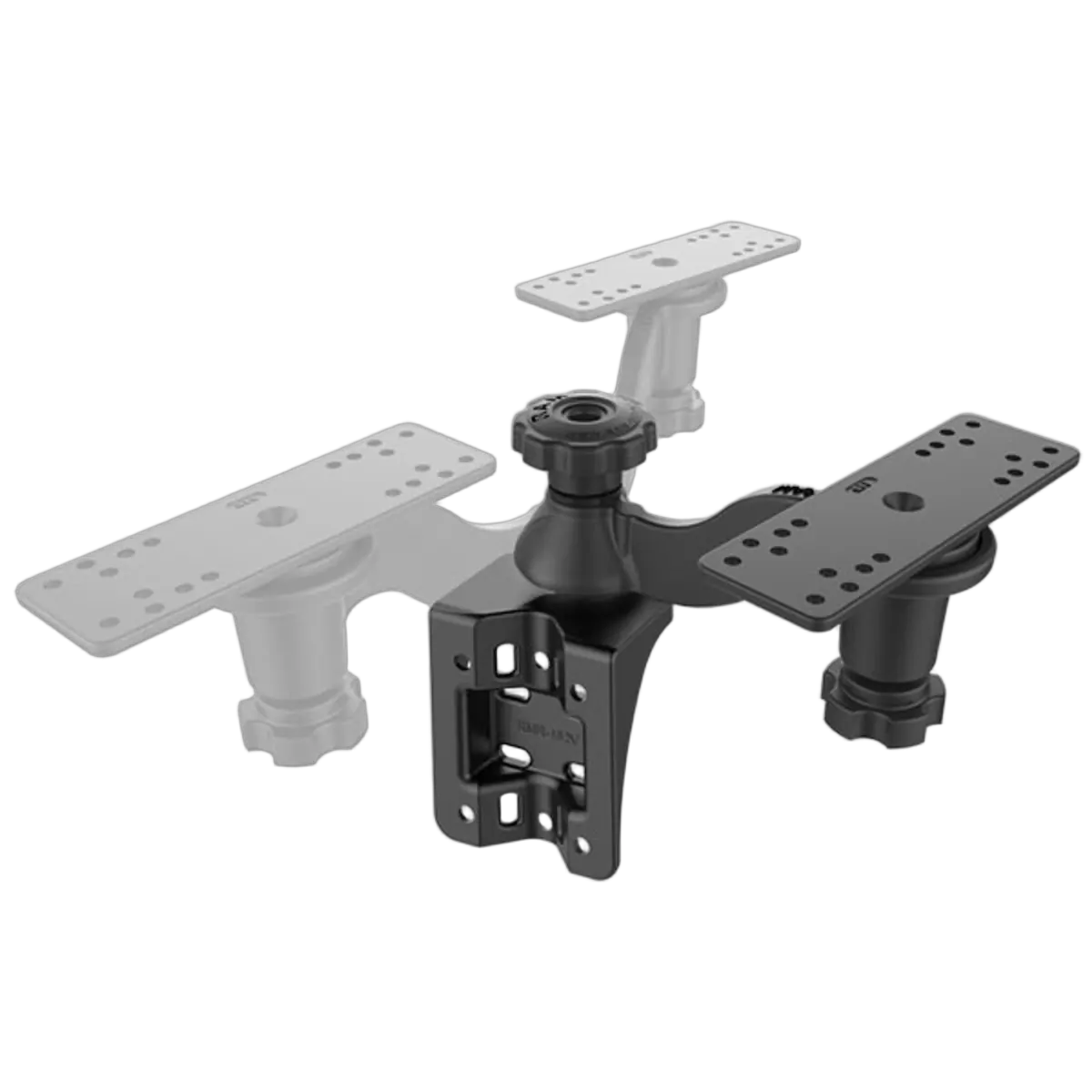

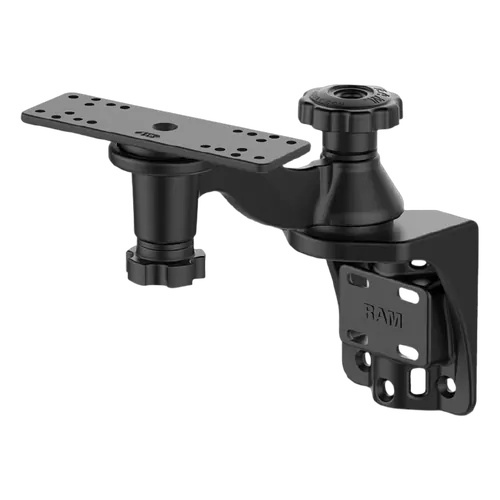

The RAM single swing arm mount consists of a 152mm long swing arm mounted on a vertical surface mounting base. At the device mounting end of the mount is a rectangular 158 x 50mm plate. There are two (2) pivoting points on the mount. One at the swing arm and base and one at the centre of the rectangular plate and the end of the swing arm. Each pivoting point allows a complete 360 degree rotation.

Dimensions
• Overall length of swing arm assembly 290.51mm
• Overall height 214.63mm
• Centre of knob to centre of ball socket 152.4mm
