Selected Part Number: PACRP5GM32
General Product Information

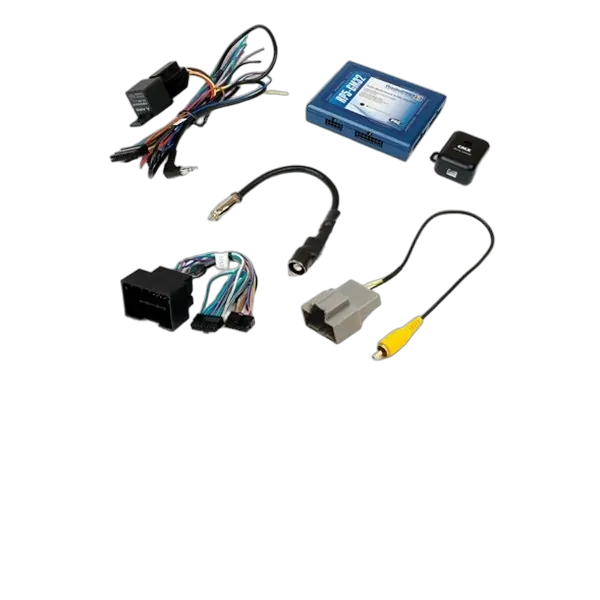

An all in one radio replacement and SWC interface, the innovative new PAC Audio RadioPRO5 comes pre-loaded with OnStar retention, amplifier retention, SWC software, navigation based output signals and other features that save time and money during installation.

  • Retains steering wheel controls (pre-programmed)
  • Retains OnStar® when the factory radio is replaced
  • Retains factory Bluetooth (2009 model vehicles)
  • Retains rear seat audio controls
  • Retains all warning chimes (chime module included)
  • Retains back-up sensors/park assist
  • Retains factory Bose audio systems
  • Retains factory premium Bose audio (Y91 digital. does not support fading)
  • Retains factory reverse camera
  • Dual zone function
  • Chime volume adjustment (factory buttons)
  • Rear seat audio and video (GMRVD2) required
  • OnStar volume adjust from steering wheel controls
  • OnStar volume adjustment
  • Retained accessory power output (RAP)
  • Reverse wire output
  • VSS (Vehicle Speed Sense) output
  • Illumination output
  • Parking brake output
  • Includes antenna adaptor
  • Retains lane departure warning system
  • Retains OnStar Turn-by-Turn voice prompts

Important Product Compatibility Information
Vehicle Plug Style

44PIN GM Style 'ClickLok' Connector

Plug & Play

YES – FACTORY CONNECTOR TO BARE WIRES

Dual Press Steering Wheel Control Function

YES – Customisable

Manual Programming Feature

YES – SWC Button remapping via control button

Retain Factory Amplifier?

YES

Retain Factory Reverse Camera?

YES – Included With Interface

Retain Parking Sensors?

YES – If parking sensors were part of the OEM Radio this is retained

Retain Factory Steering Wheel Audio Controls?

YES – Will retain Steering Wheel Audio Controls with Select Aftermarket Radios

Vehicle Notes

* All 2012-2013 GM trucks and SUVs equipped with factory navigation radios
* 2012+ 2500 & 3500 trucks equipped with factory navigation radios
* 2012-2013 GM trucks & SUVs equipped with factory non-navigation radios must use the RP5-GM31
* 2012+ 2500 & 3500 trucks equipped with factory non-navigation radios must use the RP5-GM31
* 2014+ Silverado & Sierra 1500 series trucks must use the RP5-GM51
* In Premium Amplified Systems there will be no fading capability of the aftermarket stereo

Product Vehicle Applications
What Fits My Car

This product is compatbile with the following vehicles. If no vehicles are listed, this product is universal product (non vehicle specific)
Vehicle Make Vehicle Model Vehicle Year + Vehicle Chassis Code
CHEVROLET AVALANCHE 2007 - 2011 (THIRD GEN)
CHEVROLET SILVERADO 2007 - 2014 (SECOND GEN)
GMC SIERRA 2007 - 2014 (SECOND GEN)
HUMMER H2 2008 - 2011 (H2)
SKU PACRP5GM32
Barcode # 606523109260
Brand Pac Audio
Shipping Weight 1.5000kg

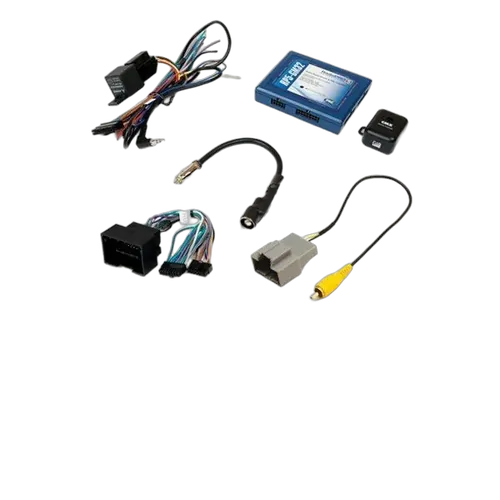

Radio Pro 5 Swc & Amp Interface - Gm Lan 29 Bit - With Oe Navigation

SKU: PACRP5GM32
Sale price
$429.00
