Selected Part Number: PACRP5GM52HAR
General Product Information

The PACRP5GM52HAR is an optional special harness designed for use with the PACRP5GM51 (sold separately) and replaces the included PACRP5GM51 harness when installing into a GM vehicle with a 7″ OEM factory radio display.

The harness combined with PACRP5GM51 retains the vehicle’s telematics, steering wheel controls, and more.

  • Quick connect harness for select GM Trucks with 7-inch radio display
  • Compatible with PACRP5GM51 (sold separately) to retain
  • OnStar Telematics system
  • Factory WiFi system
  • Front and rear park assist
  • All warning chimes (chime module included)
  • OEM Auxiliary Input
  • Data controlled outputs for connection to navigation radio; speed, reverse, and E-brake status output wires
  • Original steering wheel control functions
  • Data controlled RAP accessory output
  • Vehicle data-bus intact for service
  • Updatable using a PAC-UP USB adapter
Compatibility Notes
  • This harness is only necessary when the vehicle has an “IOA” or “IOB” build code. The build codes can be found on a silver sticker in the glove compartment.
  • Must be used in conjunction with the RP5-GM51

Important Product Compatibility Information
Plug & Play

YES – FACTORY CONNECTOR TO BARE WIRES

Vehicle Plug Style

DUAL GM Style Connectors

Vehicle Notes

* 2016+ vehicles with build codes IOA or IOB must also use the RP5-GM52-HAR. Build codes can be found on a silver sticker either in the glove box or in the trunk near the spare tyre well.

* 2015 + Colorado/Canyon must use Revision 1.1.4 or higher and Vehicle Settings revision 2.0.7 or higher

* 2015 + Tahoe/Suburban/Yukon must use Revision 1.1.3 or higher and Vehicle Settings revision 2.0.6 or higher. You must use Interface Updater 2.0 to update an RP5-GM51.

* Chevrolet Impala: Not compatible in vehicles with the IO3 RPO code. RPO codes can be found on a silver sticker in the trunk near the spare tire well.

* Does not retain RSE system

* 2014 Vehicles: Only compatible with 1500 series trucks. 2500 & 3500 series trucks equipped with non-navigation radios must use the RP5-GM31. 2500 & 3500 series trucks equipped with navigation radios must use the RP5-GM32

* Does not retain Bose amplifier. Information on how to bypass the factory amp is included in the instructions

Product Vehicle Applications
What Fits My Car

This product is compatbile with the following vehicles. If no vehicles are listed, this product is universal product (non vehicle specific)
Vehicle Make Vehicle Model Vehicle Year + Vehicle Chassis Code
CHEVROLET SILVERADO 2015 - 2018 (THIRD GEN)
GMC SIERRA 2015 - 2018 (THIRD GEN)
HOLDEN ASTRA SEDAN 2017 - 2018 (BL)
HOLDEN EQUINOX 2017 - 2018 (EQ)
HOLDEN TRAX 2017 - 2018 (TJ)
SKU PACRP5GM52HAR
Barcode # 609098820899
Brand Pac Audio
Shipping Weight 2.0000kg

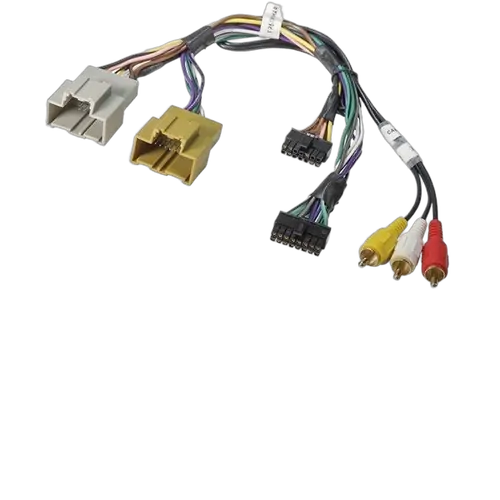

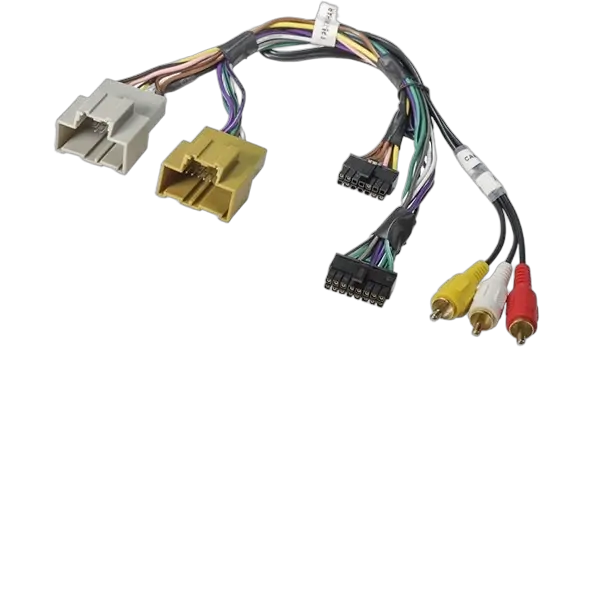

Radio Pro 5 16-Up Rp5Gm5 1 7" Display Harness

SKU: PACRP5GM52HAR
Sale price
$49.95
