Selected Part Number: PACRP4MZ11
General Product Information

An all-in-one radio replacement and SWC interface, the innovative new PAC Audio RadioPRO4 comes pre-loaded with amplifier retention and SWC software, navigation based output signals and other features that save time and money during installation.

  • Retains steering wheel controls (pre-programmed)
  • Works with non-amplified, Bose digital and premium audio systems
  • Provides requisite data commands to retains A/C compressor function in 2010 Mazda CX-9
  • In vehicle’s settings menu using the OE LCD and SWC
  • Allows the clock to be set without having to plug in the OE radio
  • Information on the OE LCD can be changed to MPG, estimated miles to empty, etc. without having to connect the OE radio
  • User-programmable text to be display during normal operation
  • User-programmable Bose Digital
  • Amplified settings – Gain, Fader, and Surround sound settings
  • Field updatable using the PAC-UP
  • Includes Plug & Play Harness
  • Retains rear seat entertainment
  • Provides 12V ACC, Illumination, VSS, Parking Brake, and Reverse


Important Product Compatibility Information
Vehicle Plug Style

24PIN MAZDA Style Connector

Plug & Play

YES – FACTORY CONNECTOR TO BARE WIRES

Retain Factory Steering Wheel Audio Controls?

YES – Will retain Steering Wheel Audio Controls with Select Aftermarket Radios

Retain vehicle OE clock & trip display?

YES – Retains OE Clock &/or Trip Display if this feature was controlled by the OEM radio

Retain Factory Amplifier?

YES

Retain Factory Reverse Camera?

NO – Additional Product May Be Required

Will it Retain Factory Navigation?

Yes, OE Navigation is retained and is controlled from the SWC buttons – all audio is lost.

Dual Press Steering Wheel Control Function

YES – Customisable

Manual Programming Feature

YES – SWC Button remapping via control button

Vehicle Notes

* 2014+ Mazda 3: Not compatible in models equipped with 7" touchscreen
* 2013+ CX-9 equipped with BOSE must use revision 1.2.3.2 or higher

Product Vehicle Applications
What Fits My Car

This product is compatbile with the following vehicles. If no vehicles are listed, this product is universal product (non vehicle specific)
Vehicle Make Vehicle Model Vehicle Year + Vehicle Chassis Code
MAZDA 3 2009 - 2013 (BL)
MAZDA 3 2013 - 2016 (BM) - WITH MONOCHROME DISPLAY
MAZDA 6 2008 - 2010 (GH)
MAZDA 6 2010 - 2012 (GH)
MAZDA 6 2013 - 2015 (GJ)
MAZDA CX5 2012 - 2015 (KE)
MAZDA CX7 2006 - 2010 (ER)
MAZDA CX7 2010 - 2011 (ER)
MAZDA CX9 2006 - 2011 (TB)
MAZDA CX9 2012 - 2015 (TB)
MAZDA MX5 1998 - 2005 (NB)
MAZDA MX5 2006 - 2008 (NC)
MAZDA MX5 2009 - 2013 (ND)
MAZDA RX8 2008 - 2012 (FE)
SKU PACRP4MZ11
Barcode # 606523109239
Brand Pac Audio
Shipping Weight 1.5000kg

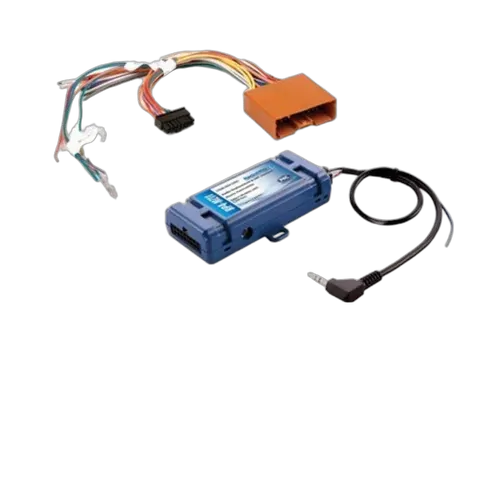

Radio Pro 4 Mazda Plug & Play Can-Bus Swc & Amp Interface

SKU: PACRP4MZ11
Sale price
$369.00
PayPal Checkout
4 payments of $92.25

afterpay More info.

Make 4 payments of $92.25 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $92.25

Calculate Shipping
