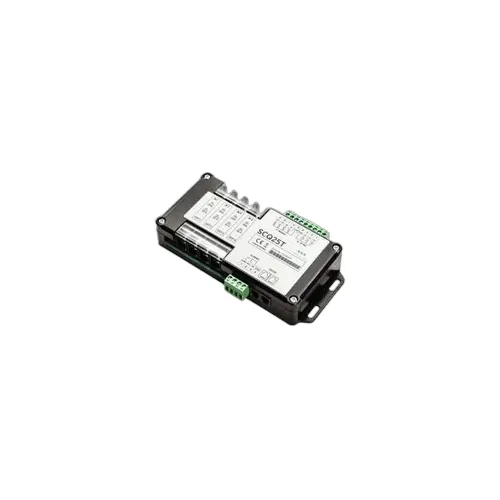

Quad Shunt 4 X 25A & 4 X Tank Module

Description
Specifications

Description

Features

SCQ25 is an innovative shunt module for monitoring individual consumers and generators with;

4 x 25A Current Sensors
For 12v and 24v Systems

Connection Possibilities;

Up To 4 x Consumer Devices
Up To 4 x Generators
1 x Relay Input

With Monitoring Possibilities;

Up To 3 X Batteries
Up To 7 x Tanks
Up To 4 x Temperatures

Free SIMARINE Android and iOS Apps:

Simarine offers a free App to connect your PICO display to your smartphone via Wi-Fi. The Apps allow you to monitor all battery and tank data, upload history, edit and restore settings and even upgrade the firmware with new features.

Specifications

Model	Simarine Quadro Shunt Module
SI-SCQ25	Quad Shunt 4 x 25A Circuits Module
Operating
Power Source Voltage Range	6-35V
Temperature Range	-20 - +70°C
Power Consumption at 12V
Operating	3.5mA
Current Measuring Channels	4
Relay (monostable)
Maximum Operating Current	1A
Maximum Common Input Voltage	6 – 30V
Voltage Inputs
Per Channel	0.01 – 25 A
Resolution	0.01A
Accuracy	± 0.6 %
Sampling Rate	100ms
Maximum Currents
Continuous	25A
Peak Current (<1 min)	35A
Peak Current (<5 sec)	50A
Voltage Drop at 25 A	35mV
Maximum voltage on connections	35V
Connectivity	Up To
Current Sensors	4
Relay Common Input (COM)	1
Relay Output Normally Open (NO)	1
Relay Output Normally Closed (NC)	1
SiCOM RJ9 Sockets	2
Installation and Dimension
Dimensions (length x width x depth)	182 x 80 x 32 mm
Weight	230g

Specifications

SKU	SI-SCQ25T
Barcode #	SI-SCQ25T
Brand	Enerdrive
Shipping Weight	0.5000kg
Assembled Length	0.150m
Assembled Height	0.100m
Assembled Width	0.150m

$349.99

SAVE $30.01

DON'T PAY RRP $380.00
