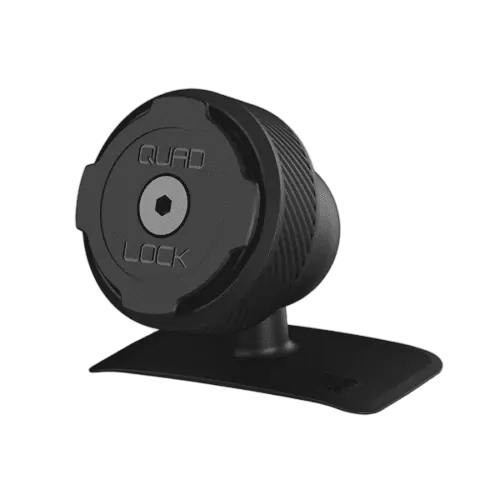

Suitable for use with all Quad Lock® Cases and Universal Adaptors, the Quad Lock® Adhesive Dash / Console Car Mount offers a versatile mounting solution with its slimline adhesive base and pivot head.

SECURE MOUNTING

With 3M VHB adhesive and a flexible base, the Dash / Console mount can adhere to flat and slightly curved surfaces. See our recommended surface guidelines for more information to choose the correct surface and mounting angle.

ADJUSTABLE VIEWING ANGLE

The single pivot ball joint allows for 180º head articulation in the Z axis and 360º rotation around the base. Mounting your phone in the optimal viewing position is simple.

SLEEK DESIGN

Slim profile base and black hardware will cleanly integrate with your car's interior.

MAG AND WIRELESS CHARGING (OPTIONAL)

Upgrade your mount with one of our two Quad Lock MAG™ Heads and make mounting your phone even easier.

Add the Quad Lock MAG™ Wireless Charging Head or Quad Lock® Wireless Charging Head and always keep your phone battery in the green, no matter the adventure.

Quad Lock MAG™ Heads require use of a Quad Lock MAG™ Case or MAG Universal Adaptor.

^{Please Note:}

^{*Power supply requirements for fast charge may vary depending on phone brand and model}

^{Wireless Charging Heads purchased before July 2022 not compatible with Adhesive Dash/Console Mount and Vent Mount.}

^{Whats included}

ADHESIVE DASH/CONSOLE MOUNT

• 1 x Quad Lock® Adhesive Dash/Console Car Mount
• 1 x Quad Lock 360™ Top Cap
• 1 x Spare 3M VHB Adhesive Pad
• 1 x Alcohol wipe

Tech Specs

ADHESIVE DASH/CONSOLE MOUNT

• Glass filled nylon
• TPU ball overmold
• 3M VHB Adhesive
• Compatible with all Quad Lock® Cases and Universal Adaptors
• Compatible with Quad Lock® Wireless Charging Head purchased after July 2022
• Compatible with all Quad Lock MAG™ Heads

Surface Guidelines

The Quad Lock® Adhesive Dash/Console Mount uses a 3M™ VHB 5611 Adhesive which will adhere to smooth, non-textured, non-porous surfaces such as:

• Plastics such as PC, ABS, PVC, Nylon, Acrylic (eg. car dash or console)
• Un-coated glass (eg windshield)
• Metals
• Fibreglass

The adhesive will not bond to the following substrates:

• Rubber, TPU, TPE
• Leather
• Silicone
• Soft touch coating or paint
• Low surface energy plastics such as Polypropylene (PP), Polyethylene (PE), Acetal, HDPE

Application temperature:

• Ideal application temperature is between 21ºC (70ºF) to 38ºC (100ºF)
• It is not recommended to adhere the mount in temperatures below 10ºC (50ºF)

Please ensure the substrate is thoroughly cleaned and dry before applying the Dash/Console Mount.

The 3M™ VHB™ is a single use adhesive and is not reusable.

The Dash/Console Mount is not recommended for use on motorcycles, scooters, ATVs, or other high frequency engine vibrations applications.
