FEATURES

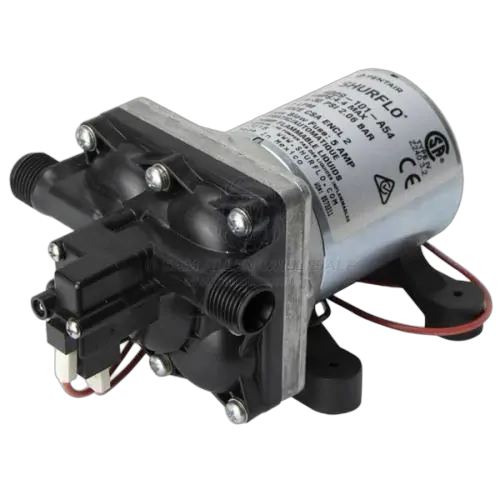

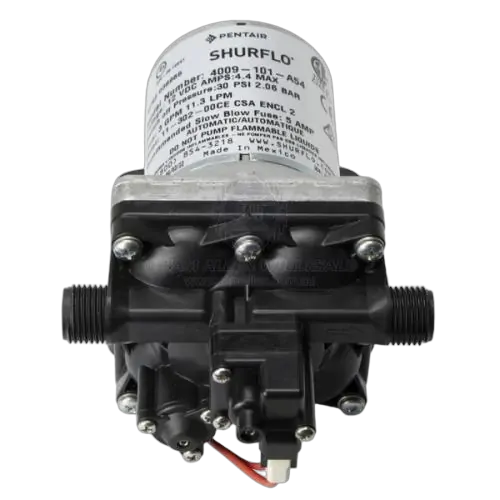

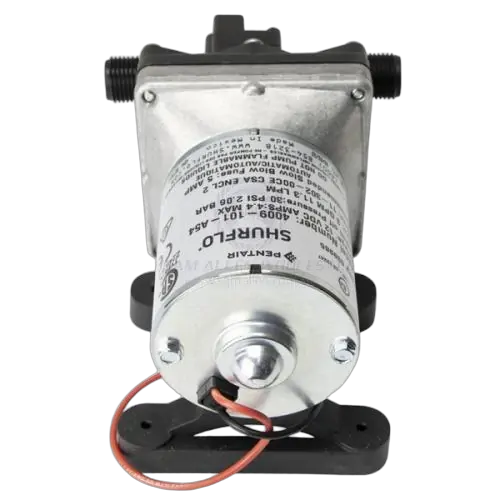

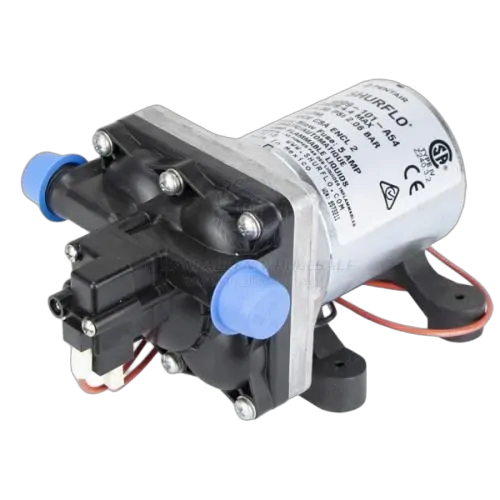

• SHURflo's 4009 series RV Pump is created with unique one-piece 4 Chamber Diaphragm and internal by-pass, assuring long life and top performance in all plumbing systems.
• Designed for multi-fixture RV adjustable by-pass fresh water pump installation.
• This pump may be used for general fresh water transfer.
• This pump is super quite for automatic demand fresh water transfer, intermittent duty.
• Ports 1/2in-14 NPSM-Male.
• Thermally Protected, CE Certified, Ignition Protected ISO 8846.
• RCM Certified to Australian Standards.
SPECIFICATIONS
Part No. | 239504 |
Length | 205mm |
Width | 125mm |
Height | 111mm |
Volts | 12V |
Amp | 4.4 |
Fuse | 5A |
Flow Rate | 11.3 LPM (3.0 GPM) |
Shut-Off Pressure | 30 PSI |
Port Size Inlet / Outlet | 1/2in-14 NPSM-Male |
Unit Qty | 1 |
SKU | 239504 |
---|---|
Barcode # | OEBC673675 |
Brand | Shurflo |
Shipping Weight | 1.5000kg |
Shipping Width | 0.125m |
Shipping Height | 0.111m |
Shipping Length | 0.205m |
