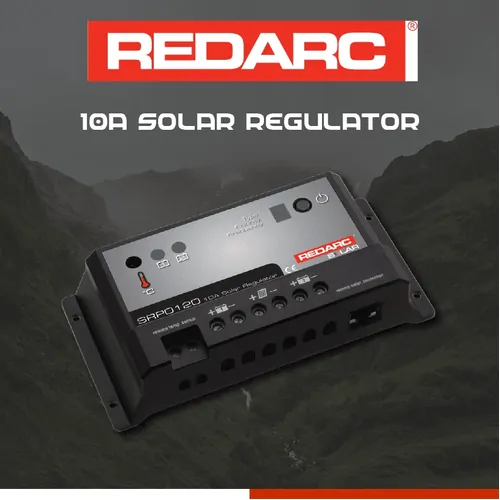

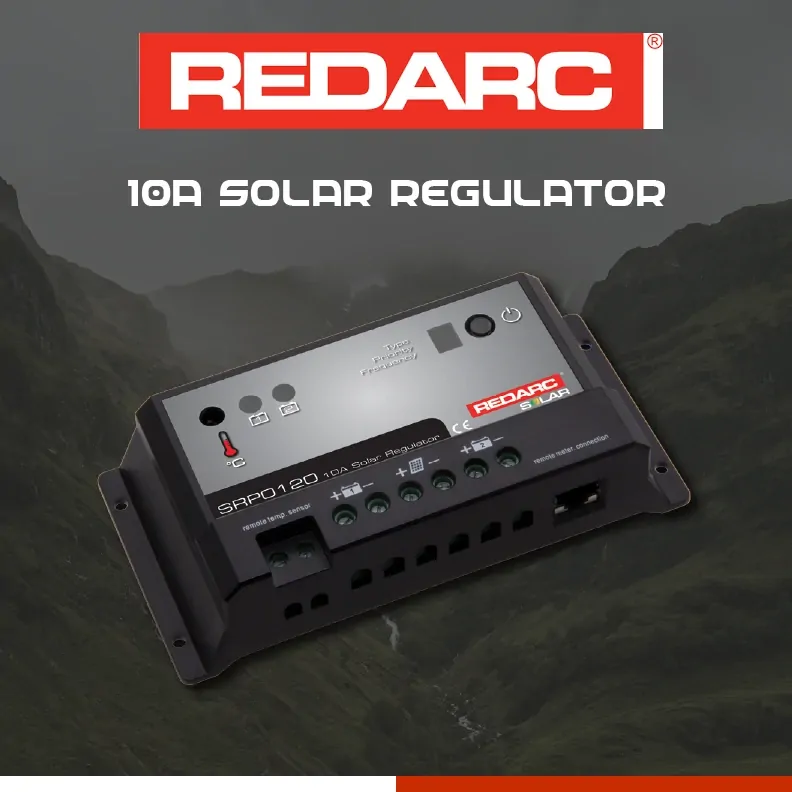

The REDARC 10A Solar Regulator suits 12 and 24 volt solar panels. It ensures that the power the panels supply to the auxiliary or house batteries is the correct voltage, so that maximum charge can be maintained, while also protecting your batteries from overcharge. The SRP0120 can charge two separate battery banks simultaneously, featuring dual-battery outputs. Your new REDARC solar regulator is perfect for permanent installation in motorhomes, caravans, and camper trailers.
The REDARC SRPO240-RM Remote Monitor is a fantastic addition to your solar-power setup and complements REDARC Regulators. The remote allows you to keep track of how your solar panels and batteries are performing via a large, backlit LCD screen.
Product Specifications:
- Input (Operating) Voltage: 12V/24V
- Output System Voltage : 12VDC
- Maximum Charging Voltage: 14.8V
- Output Current Rating (Cont.): 10A
- Warranty: 2 Years
- Standby Current Draw: 4mA
- Length (mm): 153
- Width (mm): 76
- Height (mm): 37
- Weight (kg): 0.24
| Nominal Current Draw | 10mA |
| Maximum Input Volts | 30V |
| Maximum Voltage | 14.8V (Calcium setting) |
| Terminals | 4mm |
| Standby Current Draw | 4mA |
| Remote Connection | 8-pin RJ-45 |
| Operating Temp. | -35°C to +50°C |
| Boost Time | 2 hours |
| Float Voltage | 13.6V |
| Nominal Current | 10A |
| Temp. Compensation | -30mV/12V/°C |
| Battery Voltage Range | 9 -15V |
| SKU | SRP0120 |
|---|---|
| Barcode # | 9338628002696 |
| Brand | Redarc |
| Shipping Weight | 0.2400kg |
| Assembled Length | 0.153m |
| Assembled Height | 0.028m |
| Assembled Width | 0.076m |
