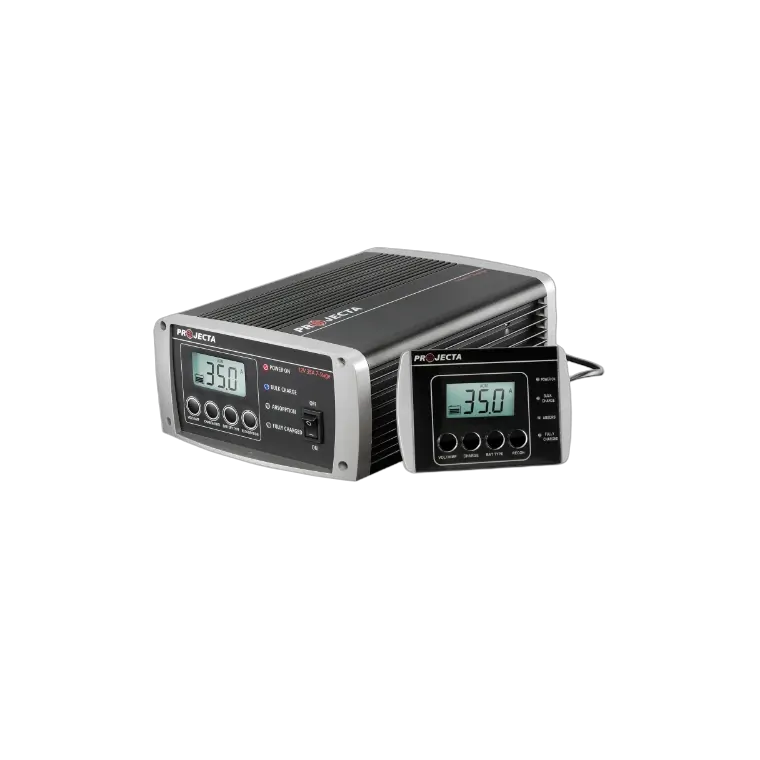

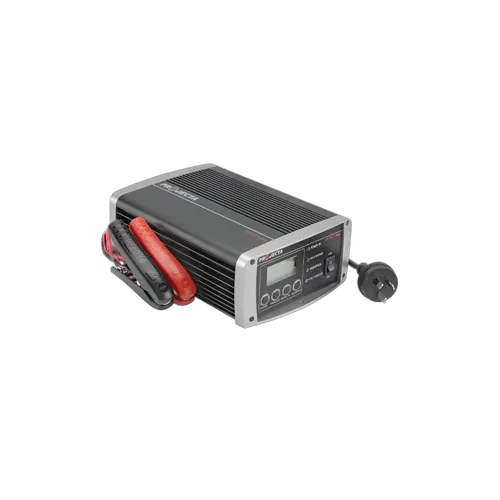

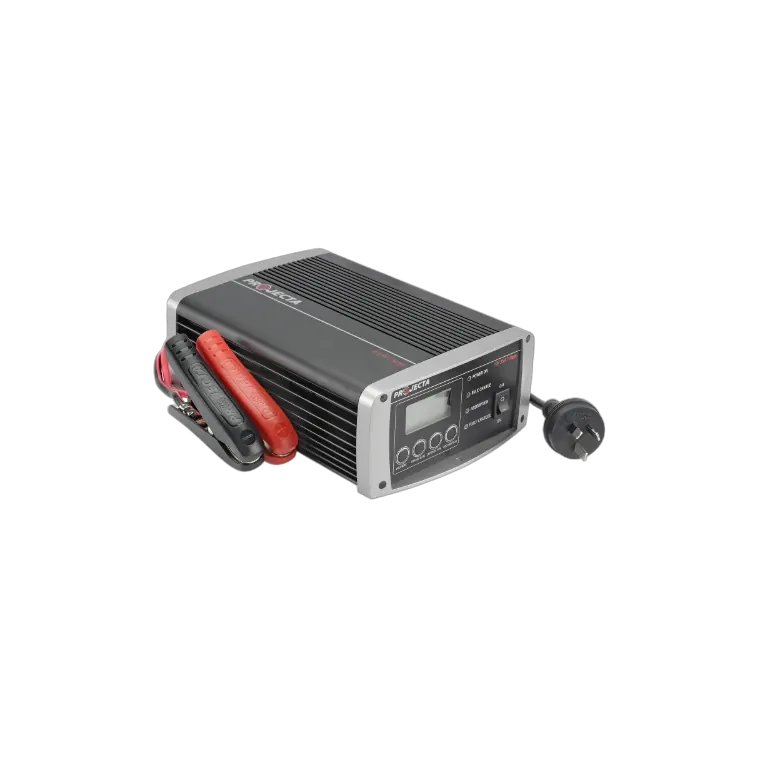

With world class 7 stage technology this advanced automatic charger is ideal for the high power demands of caravans and motor homes delivering a comprehensive and accurate charge that gives your batteries longer life and better performance.

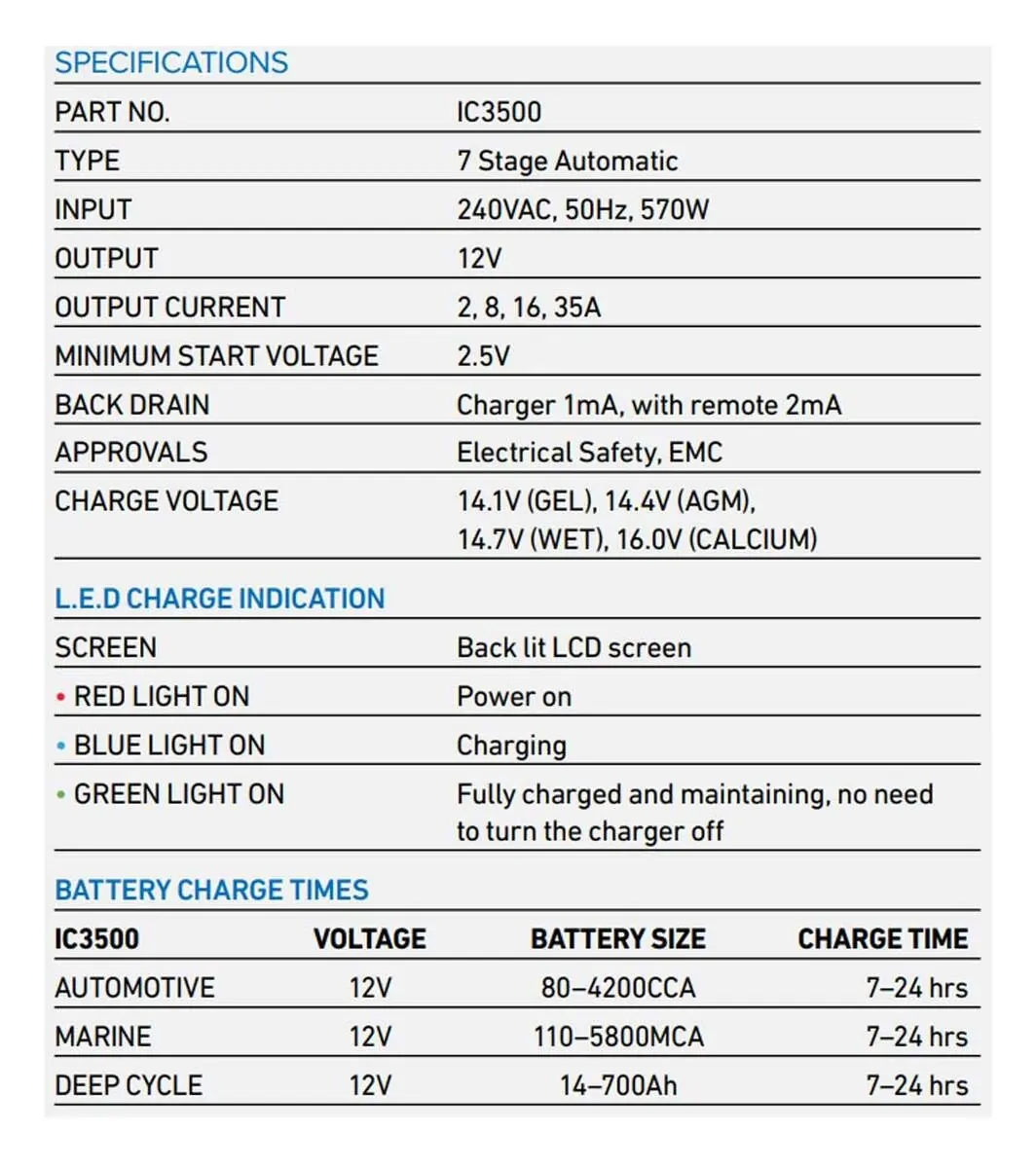

SPECIFICATIONS |
|
|
PRODUCT DETAILS |
|

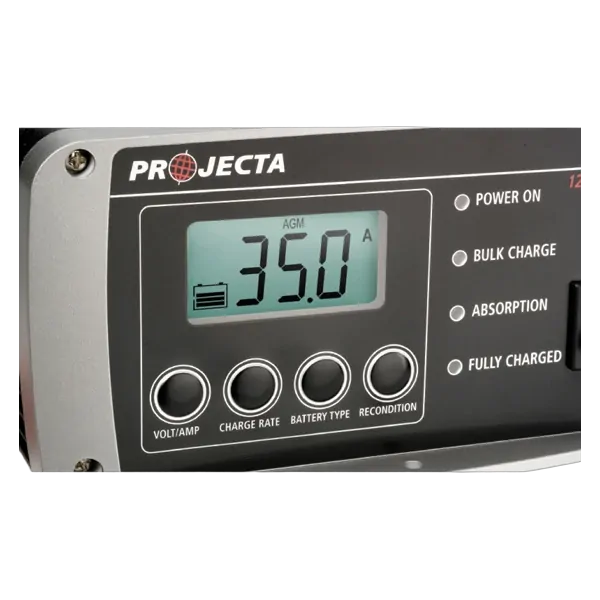

L.E.D CHARGE INDICATION |
PART NO. |
IC3500 |
|
SCREEN |
Back lit LCD screen |
TYPE |
7 stage |
|
RED LIGHT ON |
Power on |
INPUT |
240VAC, 50Hz, 1080W |
|
BLUE LIGHT ON |
Charging |
OUTPUT |
12V |
|
GREEN LIGHT ON
|
Fully charged and maintaining,
no need to turn the charger off |
OUTPUT CURRENT |
2, 8, 16, 35A |
|
MINIMUM START VOLTAGE |
2.5V |
|
BATTERY CHARGE TIMES |
BACK DRAIN |
5mA |
|
|
Voltage |
Battery size |
Charge time |
APPROVALS |
Electrical Safety, EMC |
|
AUTOMOTIVE |
12V |
80-4200CCA |
7-24 hrs |
CHARGE VOLTAGE
|
14.1V (GEL), 14.4V (AGM),
14.7V (WET), 16.0V (Calcium) |
|
MARINE |
12V |
110-5800MCA |
7-24 hrs |
|
DEEP CYCLE |
12V |
14-700Ah |
7-24 hrs |
|
