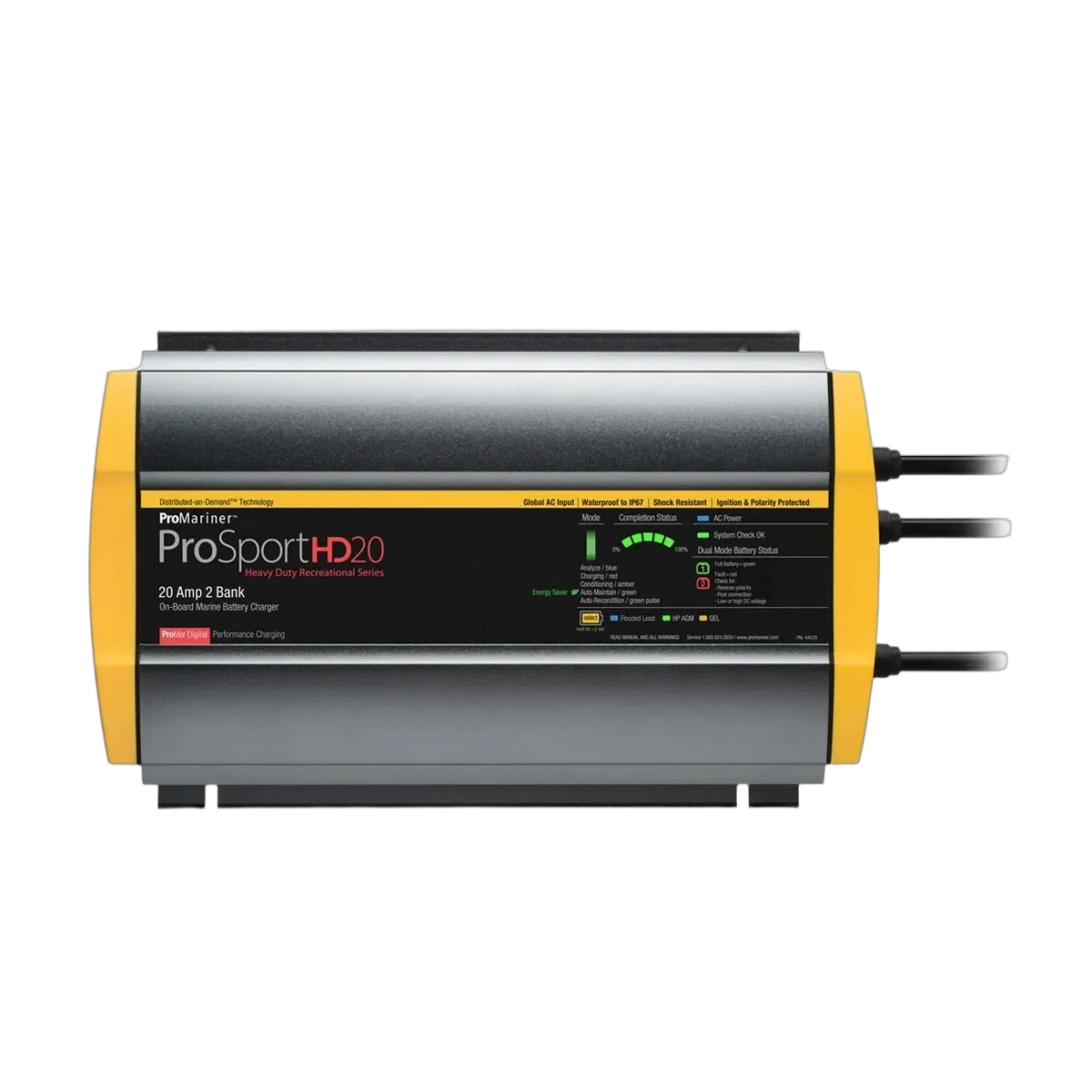

ProSport HD

The New ProSport HD Generation 4 boasts a new tri-surface heatsink design. This new heavy-duty lightweight design delivers significantly faster charging through optimal cooling, while delivering true rated amp output during charge mode. ProSportHD’s enhanced microprocessor and software provides new digital features including: fuel gauge style Charge Completion Monitor, Charge Mode, individual Fault indicators and three digitally selectable performance charge profiles for Flooded (lead acid), AGM and GEL batteries. HP AGM profile on ProSportHD 20 Dual only. Fully automatic 5-stage charging enhances battery performance while extending battery life. System Check OK and Battery Status indicators provide real time installation and battery fault status. Designed for use in harsh environments with our industrial grade jacketed DC and AC power cables which include new molded strain reliefs and wire splitters.

ProMar Digital Technology
Microprocessor and software controlled charging technology for fast, precise charging.

Distributed-On-Demand™ Technology
100% of all available charging amps are utilized by distributing unused charging amps to any one or combination of all batteries as needed.

Heavy Duty Tri-Surface Extruded Heat Sink Design 1
Upper, lower and rear facing heat sink design for optimal cooling while delivering true rated constant current charging amps during its two charge mode.

Expanded LED Display with Completion Status Gauge 2
LED fuel gauge style completion status. Four color multi-stage mode LED status bar. Multi-stage Charge Mode, System Check OK, individual Battery Status and Battery Type indication.

Lightweight Design
Up to 40% lighter compared to an epoxy filled charger.

Auto-Maintain Energy Saver Mode
Monitor and auto maintain batteries only when needed to maintain full state of charge. This significantly reduces AC power consumption.

Fully Automatic 5-Stage Digital Performance Charging
5 Stages: Analyzes, charges, conditions, auto maintains and reconditions batteries once a month during storage periods. Fully charges and extends battery life.

Built-in Quality and Safety
Dual inline waterproof fuses, reverse polarity, over-temperature, over-current, over-voltage and ignition protection. Certified to Marine UL 1236. CEC and DOE listed. FCC Class B.

Easy Installation and Operation
Pre-wired with 6’ AC and DC cables.

Battery Type: Group 24–31 Flooded, AGM, HP AGM*, & GEL batteries

3 Year Warranty
