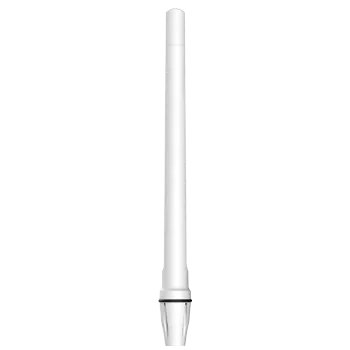

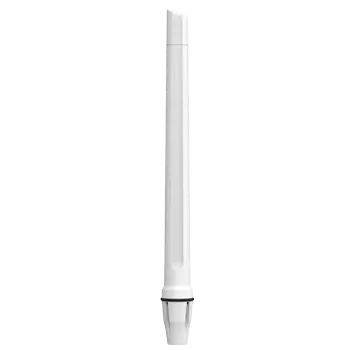

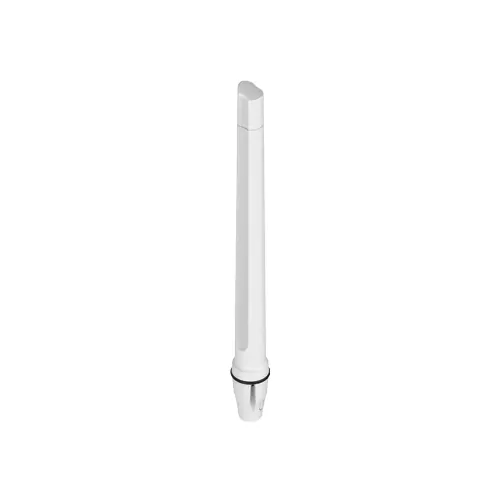

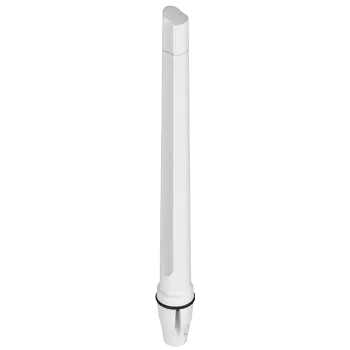

Poynting's OMNI-402 is an ultra-wide band antenna, which covers all LTE operating frequencies with excellent balanced gain across all frequencies. The antenna also offers 2x2 MIMO capability from its vertically separated radiating elements, all in the same radome. The antenna design allows the antenna to have superior pattern control over the entire frequency range making the OMNI-402 a true high performance omni-directional MIMO antenna, suitable for marine and coastal applications.
Usable in all parts of the world, the OMNI-402 guarantees signal reception almost everywhere. Poynting Antennas achieves this through new antenna configuration using multiple dipoles and a unique (patented) feed network.
The antenna is future proof as it covers the 450 MHz LTE frequency band, which is becoming more popular in various regions and countries. This antenna is also 3400 – 3800 MHz capable for coastal and inland use.
Key Features:
- Medium gain omni-directional antenna
- Antenna is purpose-built for marine and coastal operation
- UV and salt-water resistant
- Robust and weather resistant design with IP 68 rating
- 2X2 MIMO capable for improved performance
- Includes 3.5 GHz CBRS band and is 5G ready
Applications:
- Marine applications / Yachts / Boats / Ferries
- Enhanced LTE reception
- IoT and M2M
- Poor data signal reception
- Improve data transmission connection reliability & stability
- Wi-Fi applications
Depth [mm] 75
Brand Poynting
Operating Temperature Range [°C] -40 to +80
Width [mm] 75
Length [mm] 750
Frequency MHz 410-470 / 698-2700 / 3400-3800
Tuned Bandwidth Full.
VSWR < 2.5:1
Nominal Gain [dBi] 1 / 6.2 / 2.5
Power [W] 10
Wind Gust Rating KMH <160
Frequency Range [MHz] 3400 - 3800, 400 - 470, 698 - 2700
Connector SMA(M)
Cable And Connector 2 x RG58 Terminated with 2 x SMA(M)
Salt Spray MIL-STD 810F/ASTM B117
Antenna Type Omni
Antenna Application Terminal Antenna
Frequency Band Multi-Band 700 to 2700
Antenna Configuration 2x2 MIMO
SKU | OMNI-402 |
---|---|
Barcode # | OEBC564476 |
Brand | Poynting |
Shipping Weight | 1.7600kg |
Shipping Width | 0.700m |
Shipping Height | 0.100m |
Shipping Length | 0.150m |
Shipping Cubic | 0.010500000m3 |
