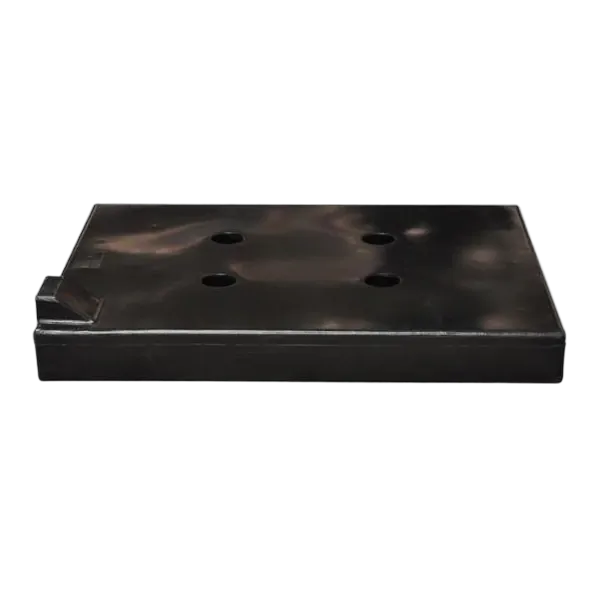

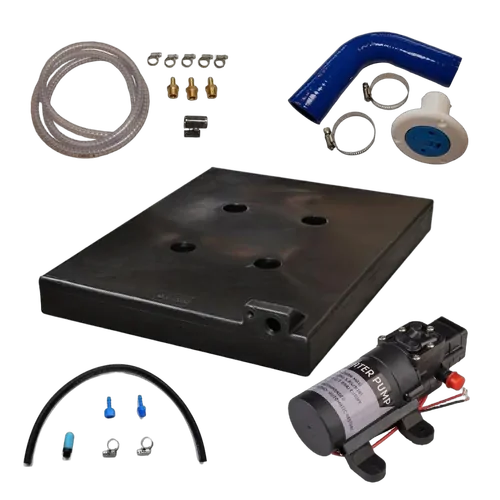

Poly Water Tank 80 Lt Flat Under Ute or Truck Tray Mount
The filler uses a 1.5" BSP thread with an adjacent 1/2" BSP insert to attach a fast fill breather line if necessary. Two 1/2" BSP outlets are fitted on the bottom to give a choice of exit to the tap or plumbing system.

Product features:

• Dimensions: 805W x 1070L mm
• Height: Tank - 110mm
• Inlet position - 170mm
• outlet position - 140mm

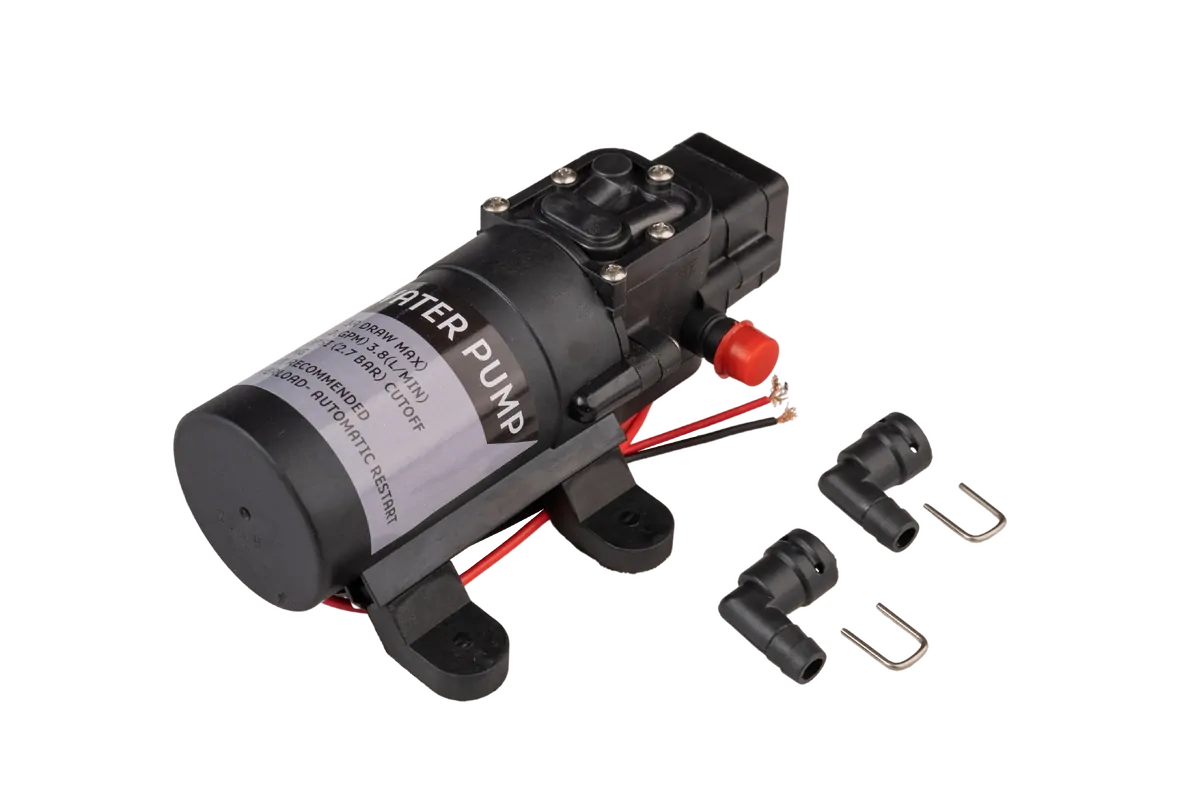

The SeaFlo 21 Series 12V Water Pump

The 21 Series 12v Water Pump from SEAFLO is compact and designed for a wide range of applications including liquid transfer, spraying, circulation, filtration, and dispensing! The 21 Series 12v water pump diaphragm pumps are hardened and prepared for extreme conditions. The 12v water pump head and components utilize a completely integrated design, requiring minimal labour to replace. They provide up to 1.2 gallons per minute, can run dry and has a built-in pressure switch to automatically stop and start the pump when the faucet is opened and closed.

These pumps are commonly fitted in Camper Trailers, Caravans, Campervans and 4WD set ups.

As an added bonus, this pump is supplied with 2 sets of fittings (O-ring adapters) to suit both a 3/8" or 1/2" hose

Product features:

• 3 Year Warranty
• On-demand pressure switch
• 18 AWG, 13" long leads
• Low Power Draw (4 Amps Max Draw)
• Corrosion Resistant Valves
• 2 Chamber Santoprene Diaphragm
• Capable of supplying 1-2 fixtures
• Self Priming
• Automatic - Controlled by Pressure Switch
• Runs Dry Without Damage
• Quiet Operation
• Complete rubber mounting base
• Adjustable pressure setting
• Industry Standard Mounting Pattern

Specifications:

• 12V Operation
• Maximum Recommended Temperature: 110°F (43°C) max
• Up to 1.0 GPM (3.8LPM)
• 40 PSI Pressure setting
• Amps 1.6A (Max 4.0A)
• Primimg Capabilities: 1.8m (4 feet) Suction Lift
• Inlet/Outlet Ports: 3/8" Hose Barb
• Weight: 0.57kg

10mm Hose Kit for ElectPump

10mm Hose Kit 2m long for use with 12v Electric Water Pump

Kit contains:

• 2 metres of 10mm reinforced hose
• 5 clamps
• 3 tail fittings
• Mini ball valve

Please note fittings are now in Diesel safe plastic.

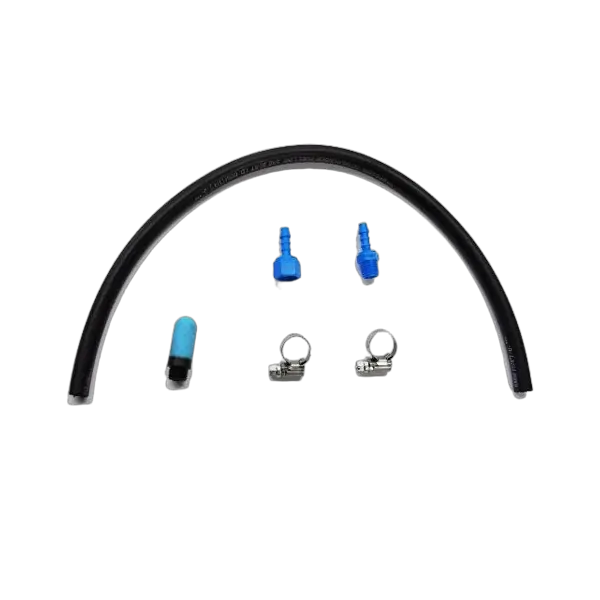

Vent Kit For Poly Water Tanks

Vent Kit for Poly Water Tanks, includes hose, fittings, hose clamps and filter to suit WTP45FV and WTP60FV, other tanks will require drilling and tapping.

The tank is fitted with a ¼” BSPT brass insert located near the filler cap (Some tanks may have a ½” outlet and an adapter may need to be sourced). This connection is for a vent to allow the tank to breath when water is drained into another tank or in case of expansion of the water in hot weather. This vent kit includes a short piece of hose to allow the vent to be located well above the top of the tank. The filter is designed to prevent dust entering the tank and will NOT stop water so it is essential that the filter be mounted above the height of the tank – even when the vehicle is parked on a steep angle or used in rough off-road conditions.

Important Notes:

If using the tank inside a vehicle please be aware there may be some seepage from the filter and do not

place in a spot that could damage other items if this happens.

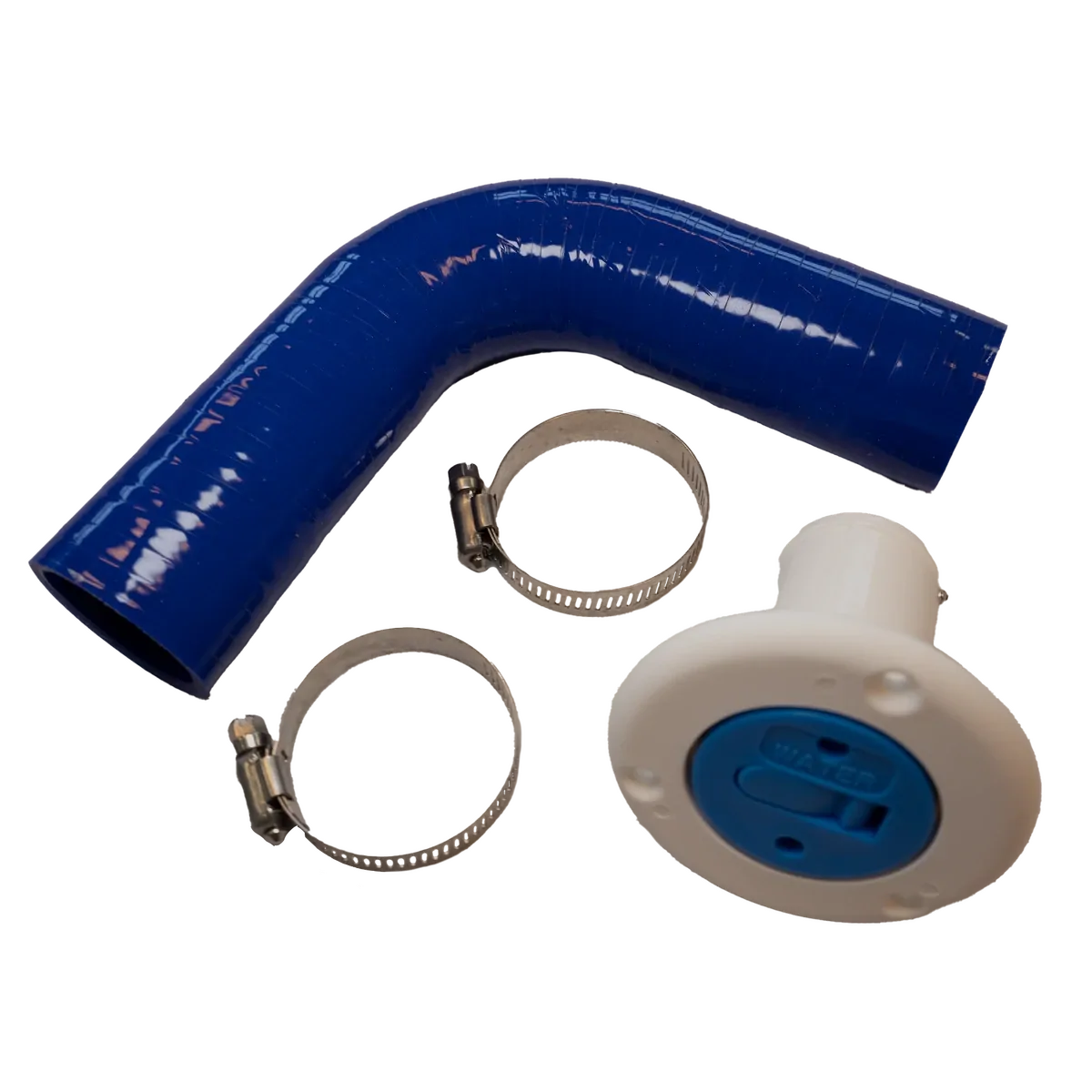

FILLER KIT TO SUIT WATER TANK

Filler Kit suit WTP45FV & WTP60FV Water Tanks (Includes Filler Neck-Elbow-Clamps)

Internal diameter: 38mm

External diameter: 47mm

Please Note:

This is a generic fitment kit designed to be the basis of what you need. Depending on the tank and its outlets, additional adaptors/ fittings may be required.

Important Fitment Note:
Please note: We advise that all water tank installations should only be done by a qualified person and it is the responsibility of this person to ensure correct installation and fitment.
