Point-1 AP GPS and Heading antenna provides extremely accurate and rapid boat position and speed updates to the network. Built in magnetic compass with accuracy and tuning specific for Lowrance Autopilots also provides chart stabilization and radar overlay, plus accurate course over ground even at low speeds.

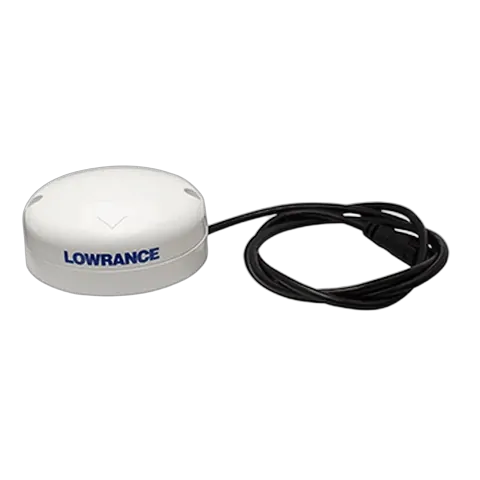

Point-1AP Antenna

PRECISION GPS/GLONASS RECEIVER WITH ELECTRONIC COMPASS

The Lowrance Point-1 AP is the ideal position and heading device for the Lowrance AutoPilot . The Point-1 provides extremely accurate and rapid boat position and speed updates. In addition – unlike other position-only antennas – the Point-1 provides heading for accurate boat direction at any speed and for radar/chart overlay. KEY FEATURES

  • NMEA 2000® position and heading sensor
  • Supports GPS and GLONASS, Galileo-capable with future software update
  • Supports SBAS including WAAS/EGNOS/MSAS
  • 10 Hz updates for smooth and accurate location
  • Integrated electronic compass provides 10Hz heading for chart stabilization and radar overlay, plus accurate course over ground even at low speeds
  • Compact, rugged design for all marine environments and fully waterproof
Specifications Networking NMEA 2000 Certified Yes Connectors NMEA 2000 Micro C Power Power Supply (Supply Voltage) 9v-18v GPS Navigation GPS Receiver Channels 32 Heading Accuracy 3 degrees Horizontal Accuracy 5 m Rate of Turn 3 degrees Satellite Reacquisition <5 seconds Start-up Time <3 seconds Cold Start <50 seconds Picth/Roll Angle @30 degrees 1 grade error Technical/Environmental Diameter 90 mm (3.54in) Product Height 38 mm ( 1.50in) Product Weight 0.3 lbs (approximately)
SKU 000-12930-002
Barcode # 9420064121168
Brand Lowrance
Shipping Weight 0.7000kg
Shipping Width 0.279m
Shipping Height 0.098m
Shipping Length 0.197m

Lowrance POINT-1 AP Autopilot GPS Antenna

SKU: 000-12930-002
Sale price
$349.00
PayPal Checkout
4 payments of $87.25

afterpay More info.

Make 4 payments of $87.25 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $87.25

Calculate Shipping
